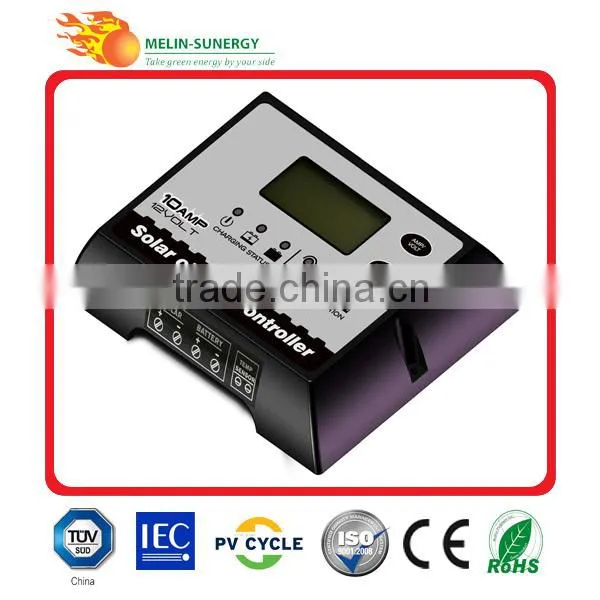

10A/12V Digital Solar Charge Controller Regulator

Name: 10A/12V Digital Solar Charge Controller Regulator
Brand: Melinsunergy
SKU: 107530799

US$ 8 - 30 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Melinsunergy

Model Number:

MT-505

Shenzhen Melin Sunergy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Melinsunergy

Model Number MT-505

Application Solar System Controller

Rated Voltage 12V

Maximum Current 10A

10A/12V Digital solar charge controller regulator

Product Description

1.Works on 12V Solar System ,input voltage up to 25V dc

2.10Amp Continuous charging capacity ,enable use with solar panel upto 170W

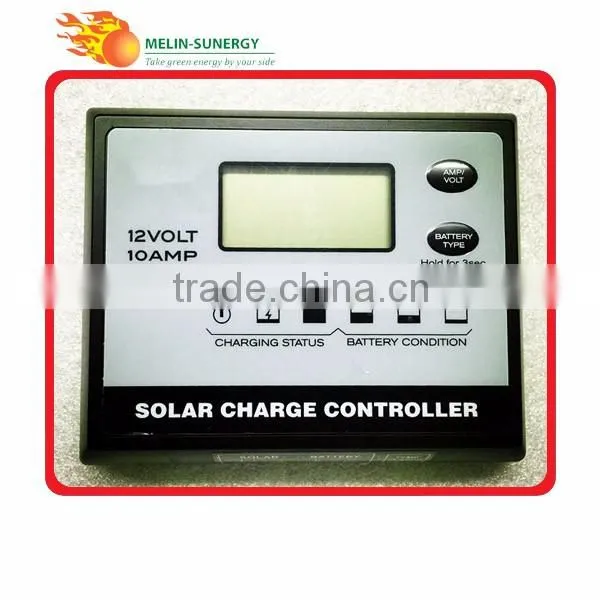

3. Large LCD Display for : Voltage , Current , Amp hours ,Temperature , battery presets , Full Charging information

4. plus LED Indicator for battery condition & Charging Status

5. MCU Control , PWM Technology, charging design for low loss ,higher efficiency charging and longer battery life

6. 4 Type of battery setting , AGM , GEL , WET and CALCIIUM

7. 5 Stage Charging Technology for 100% return of capacity and longer battery life , soft start , bulk charge , absorption charge ,

eqaulization charge and float charge

8. Temperature Compensation function with optional temperature sensor cable

9. Flash Mounting Design

10. Water Proof Type available for customer's option

11. 12V/24V Auto Type avialable for customer option

12. Warranty : 2 Years

Technical Data

---Electric & Physcial Parameters

Item No.	MT-505-10A
Type	PWM
Rated Charging Current	10Amp
Max. Solar Panel Input Voltage	25V DC
Controller Operation Voltage (On solar panel or battery side)	8V DC
Standby Current Consumption at night	5mA
Max. Voltage Drop from Solar Panel to Battery	0.25V DC
Input / Output Terminal	M4 Terminals
Controller case material	ABS
Size	130X102X27mm
Weight	0.25Kg
Max. Standed Wire Size	12AWG
Operation Temperature Range	-20~50 °C
Storage Temperature Range	-40~85°C
Operating Humidity Range	100% no condensation

---Charging Parameter

	AGM	GEL	WET	Calcium	LiFePO4	LTO
Soft Start Charging Voltage (v)	3-10	3-10	3-10	3-10	3-10	3-10
Bulk Charging Voltage (v)	10-14	10-14	10-14	10-14	10-14	10-14
Absorption Charging Voltage (v)	14.4	14.1	14.7	14.9	14.4	14.0
Equalization Charging Voltage (v)	--	--	--	15.5	--	--
Float Charging Voltage (v)	13.6	13.6	13.6	13.6	13.4	13.4
Min.Start Charging Voltage (v)	3V
Automatic Equalizing Charging Periodical	28 Days
Equalization Charging Timer Time out	2 Hours
Voltage Control Accuracy	+/-1%
Battery Temperature Compensation Coefficient	-24mV/°C
Temperature Compensation Range	-20~50°C
