Help CenterOil Filling
US$ 10,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oil Bottling PlantUS$ 10,000 - 50,000MOQ: 1 Set -
Full Automatic Mineral Water Bottle Filling MachineUS$ 25000.00 - 25000.00MOQ: 1 Set
-
Flexible Glass Bottle Washing MachineNegotiableMOQ: 1 Unit
-
Flexible Glass Bottle Washing MachineNegotiableMOQ: 1 Unit
-
Glass Bottle Washing MachineNegotiableMOQ: 1 Unit
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V/220V
Power
3kw
Place of Origin
Jiangsu, China
Brand Name
chenyu
Model Number
CGF
Dimension(L*W*H)
2400X1800X2400mm
Weight
3000kg
Certification
CE, CE,ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
oil fillingnology from Germany
2.Easy to change bottle shape
3.20 years manufacturer
4.CE certificate
Oil filling
Products Introduction:
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, oil,alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, oil,alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical parameters:
Model |
Washing heads |
Filling heads |
Capping heads |
Capacity (b/h)500ml |
Power (KW) |
overall dimension(mm)
|
CGF12-12-6 |
12 |
12 |
6 |
2000-4000 |
2.2 |
2400X1800X2400 |
CGF18-18-6 |
18 |
18 |
6 |
5000-6000 |
3.1 |
2500X1850X2400 |
CGF24-24-8 |
24 |
24 |
8 |
8000-10000 |
3.8 |
2900X2150X2400 |
CGF32-32-12 |
32 |
32 |
12 |
11000-12000 |
5.6 |
3600X2500X2400 |
CGF36-36-12 |
36 |
36 |
12 |
13000-14000 |
7.6 |
3750X2600X2400 |
CGF40-40-12 |
40 |
40 |
12 |
15000-16000 |
8.3 |
4000X2800X2400 |
CGF50-50-15 |
50 |
50 |
15 |
20000 |
9.6 |
5450x3120x2400 |

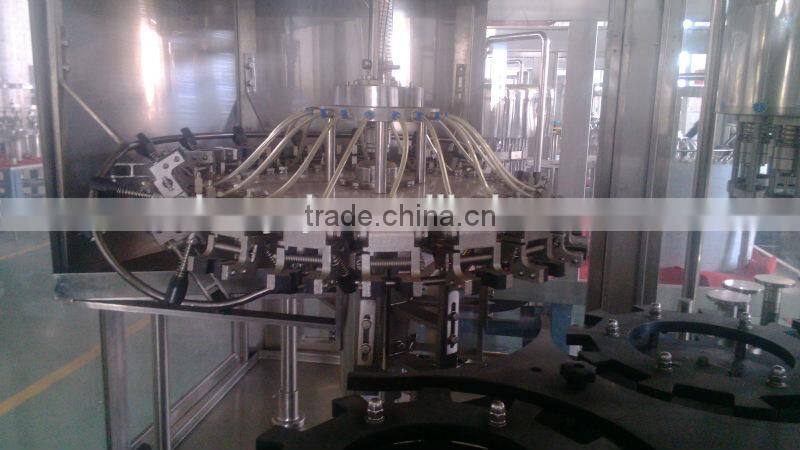

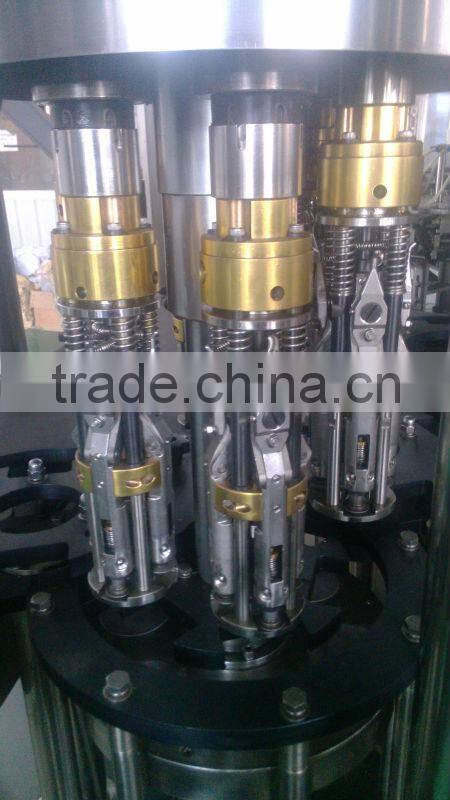

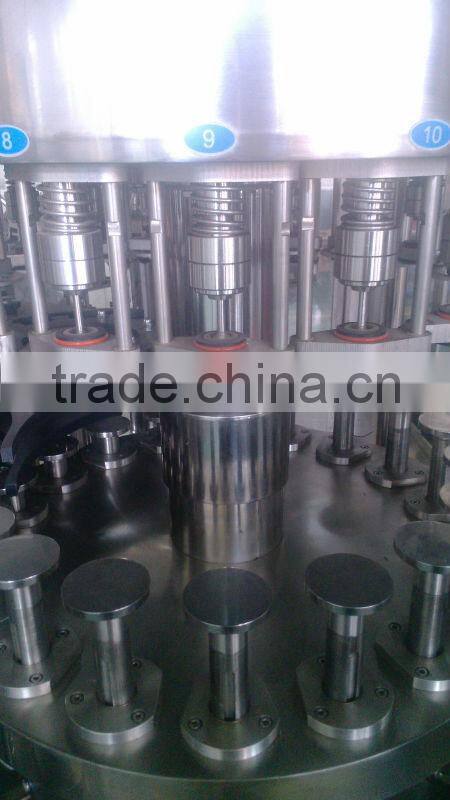

Machine Photos:

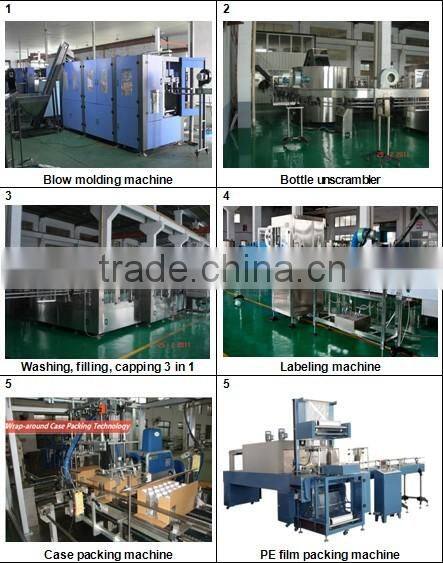

We can supply the whole production line,below is main machine of water line:

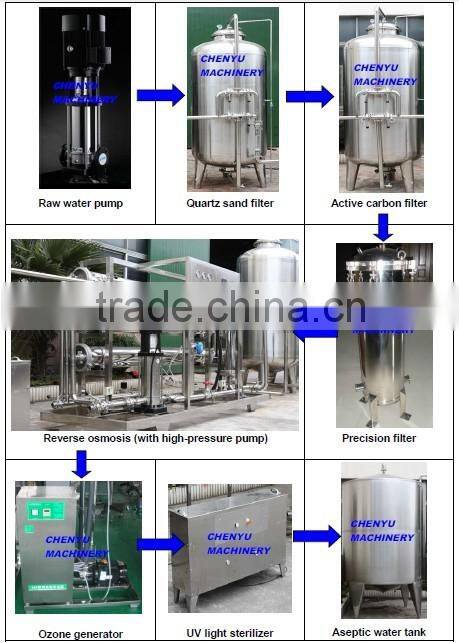

water treatment system:
production line:
The key electrical components from famous company :
PLC Control:MITSUBISHI ELECTRIC
Frequency converter: MITSUBISHI ELECTRIC
Mechanic overload:SCHNEIDER
Main motor:ABB
Proximity switch:OMRON
Photocell switch: OMRON
After-sales service:
1.we will send skilled technicians for the installation and training in the customer’s factory.
2.we will supply one year quality guarantee and technical support for life
