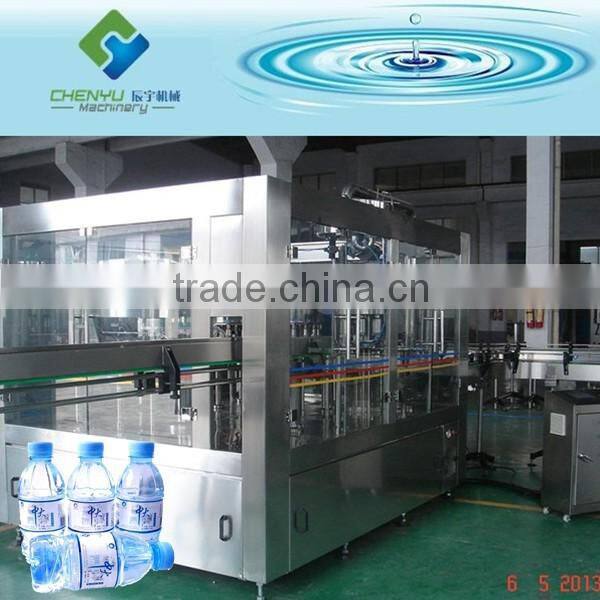

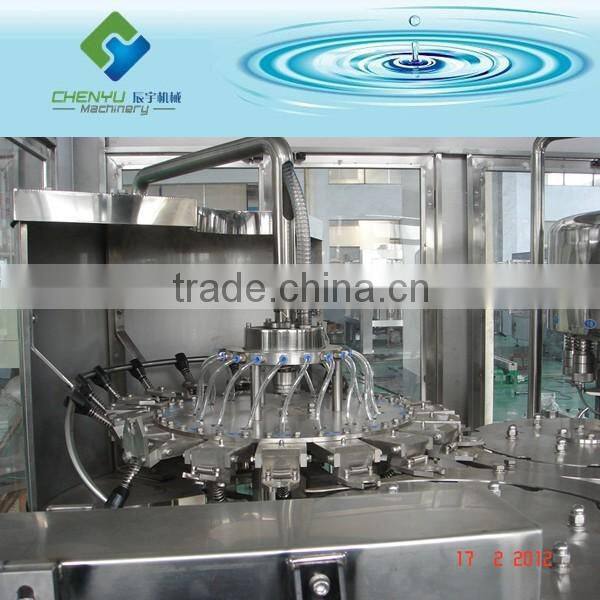

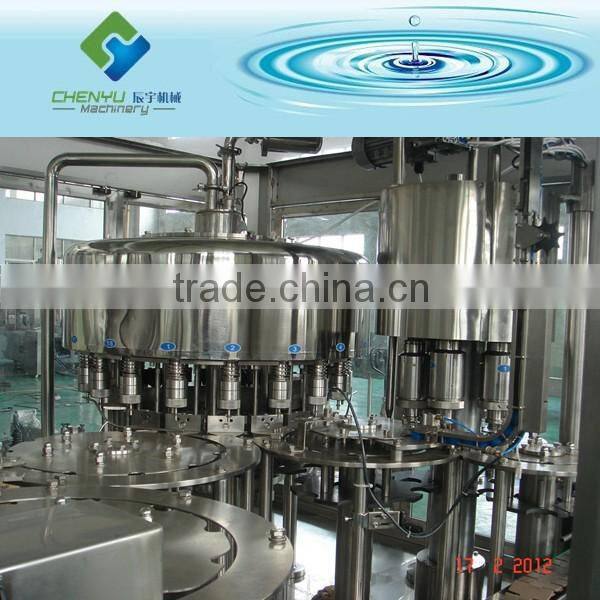

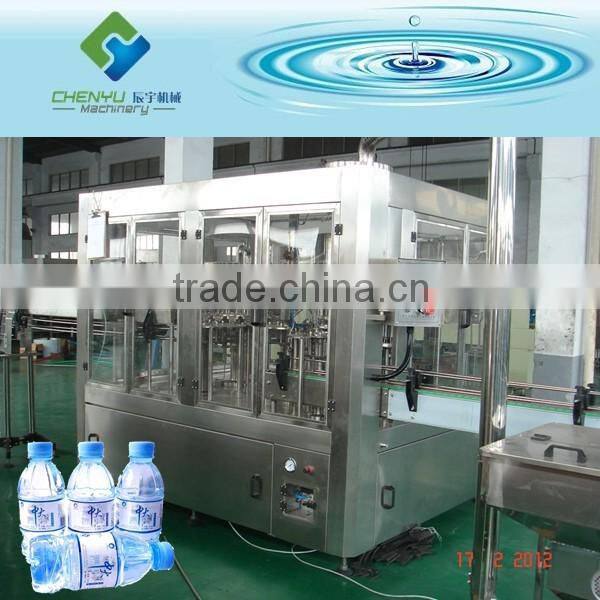

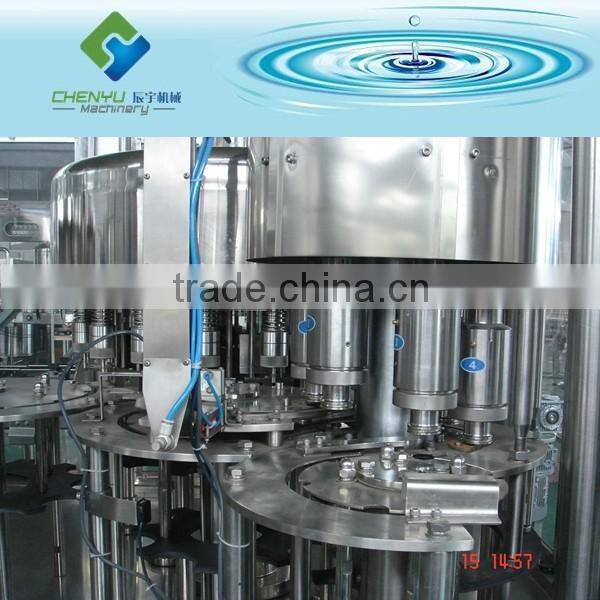

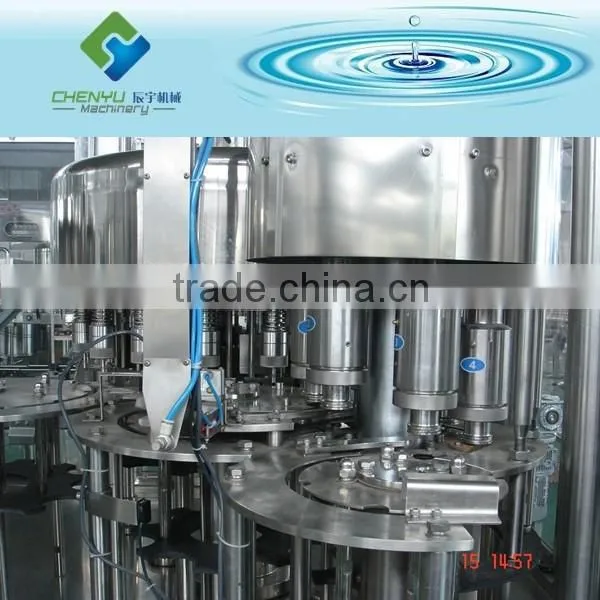

automatic mineral water bottle filling machine
Mineral water plant
It is used for filling pure water, mineral water in PET bottles. We can supply the complete line. We also can supply the complete lines for cola or juice.
Characteristics:
1. The washing (bottle), filling and capping three jobs will be finished by the one machine, saving much space and more sanitary.
2. It is very convenient to change different bottles by application of advanced bottle conveying technology — bottle neck clamping and bottle suspending technology.
3. Advanced programmable PLC and touch screen are equipped to control the main machine, making it very easy to operate.
4. All electronic components and pneumatic elements are all from famous international enterprises.
5. All spare parts that may touch with water are made from high-quality stainless steel.
Main Technical Specifications:
Model: |
CGF16/12/6 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/10 |
CGF40/40/12 |
CGF50/50/15 |
Production Capacity: 500ml (B/h) |
4000 |
6000 |
10000 |
12000 |
16000 |
24000 |
Suitable Bottle Standard:(mm) |
150-300 |
150-340 |
150-340 |
150-340 |
150-340 |
150-340 |
Power:(KW) |
4.06 |
4.06 |
5.42 |
8.27 |
7.92 |
10.22 |
Overall Size L×W×H: (mm) |
2460×1800 |
2460×1970 |
2860×2170 |
4020×2900 |
4100×3170 |
4800×3400×2400 |
Total Weight:(kg) |
2500 |
3500 |
4000 |
5000 |
6500 |
8000 |
Plywood case, if customers need fumigation, we can supply!
Our Service:
Before sales:
we can supply full support for you to choose the suitable machines. We can design the layout drawing for you according to your workshop size.
During manufacturing:
we will finish the machine on time exactly. After the machine is finished, you can come to our factory to test the machine, or we can send the video for testing the machine to you.
After sales:
We will send technicians to your factory for installation, testing and operator training; our warranty period is 12 months in this period, we provide free parts for buyer as well as the necessary technical support. In our warranty period, we offer free technical support, and the cost price of spare parts.

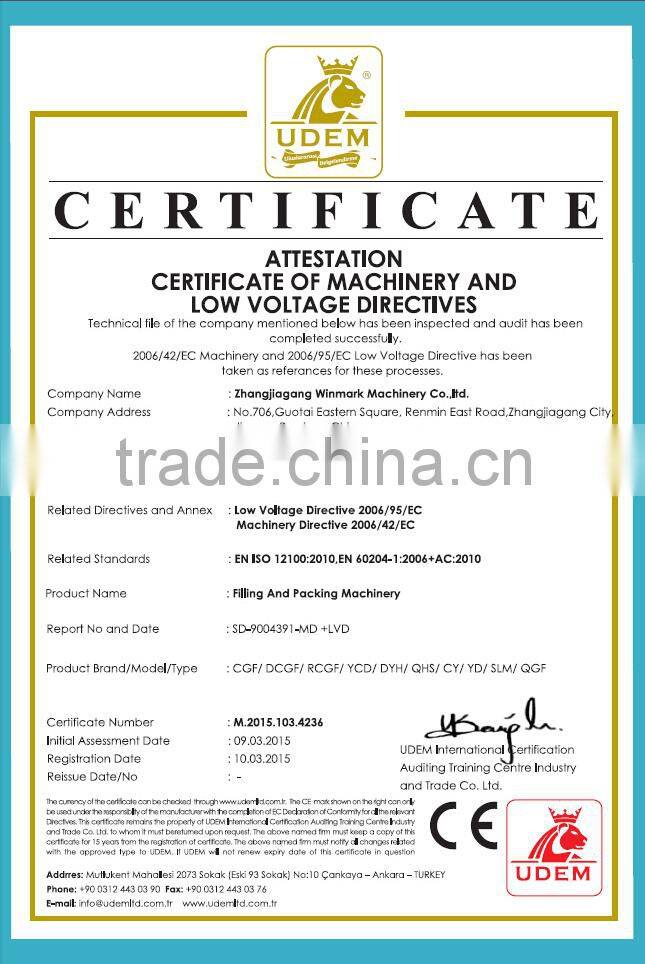

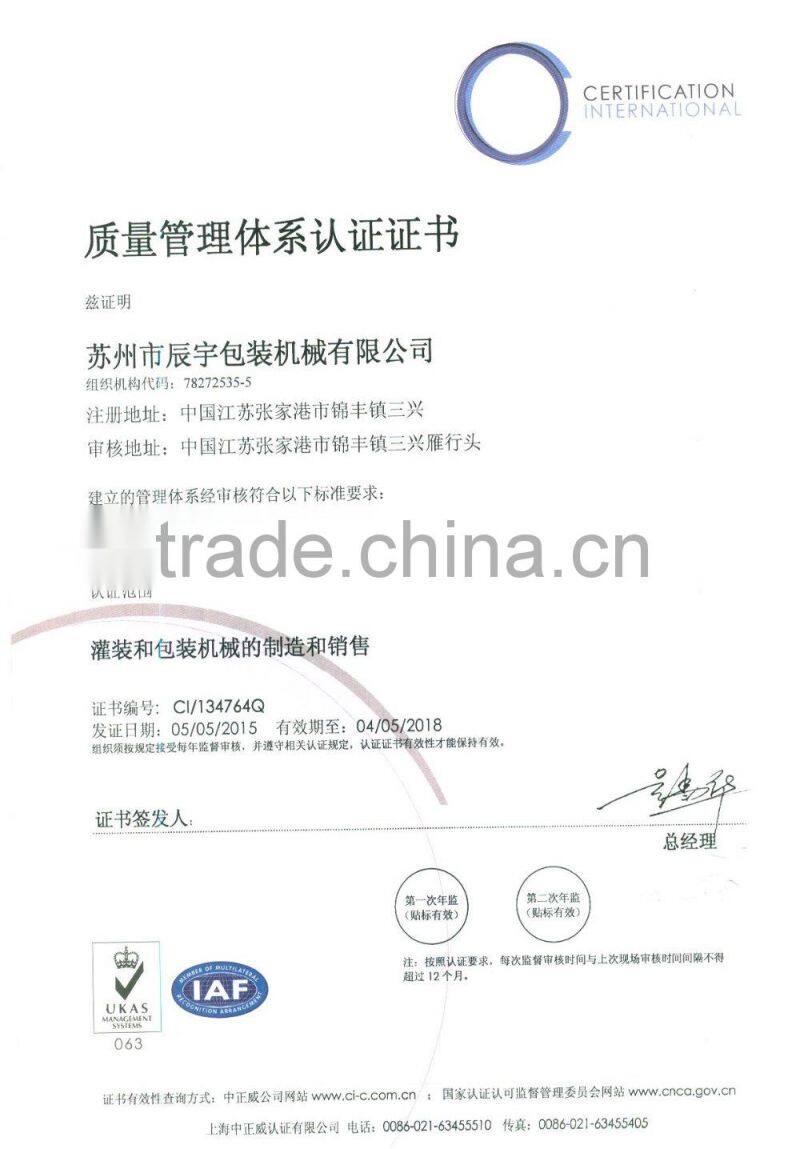

certificate
Company information:
Suzhou City Chenyu Packing Machinery Co., Ltd. is a professional manufacturer of production lines for drinking water, carbonated drink, juice and tea drink.
Our company is established since 2001, covering 10000 square meters. During the fourteen years, our company develops very fast. In current years, our amount of sales can reach 400 millions per year.
Great technology support and perfect after-sales service make our machine work on very good condition always. Our machines are working for more than 600 beverage manufacturers all over the world.
Sincerely welcome to our factory, and hope we can cooperate and develop together!
FAQ:
Which kinds of beverage do you want to produce? Drinking water, cola, juice or tea?
What’s the volume of bottle used? 500ml, 1L, 1.5L or others?
How many bottles per hour do you want to produce for 500ml?
Do you also need the blow moulding machine? Semi-auto or full automatic?
About the labeling machine, which kinds of label do you want? Sleeve label or self-adhesive label? Full automatic or semi-auto?
