Specifications
Plastic injection making machine1. PET preform,PE caps molding machine
2. Water,oil,soft drink
3. Output 800-6000BPH

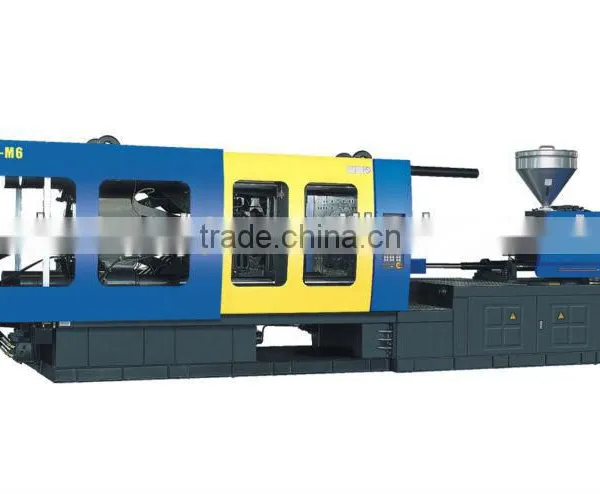

Plastic injection making machine
PRESENTATION OF PRODUCTS WITH ADVANTADGES
Products Range of Plastic injection making machine : 60 Ton------4000 Ton
lEnergy Saving Machines With Servo System
lPVC Special
lPET Special
lHigh Speed
lFull Electric
CREATS VALUES of Plastic injection making machine
lBIGGER PARAMETER—SAVE INVESTMENT
lPOWER SAVING—SAVE ENERGY, 50—80%
lHIGH PERFORMANCE—EUROPEAN STANDARD
Parameters of Plastic injection making machine
Specification Table |
CY2680 |
|
|||
A |
B |
C |
|||
Injection Unit |
Screw Diameter (mm) |
50 |
55 |
60 |
|
Screw L/D Ratio (L/D) |
23.1 |
21 |
19.3 |
||
Shot Size(Theoretical) (cm³) |
580 |
703 |
828 |
||
Injection Weight ( g) |
527 |
640 |
754 |
||
Injection Rate (g/s) |
193 |
229 |
259 |
||
Plasticizing Capacity (g/s) |
28.9 |
31.6 |
34.7 |
||
Injection Pressure (Mpa) |
205 |
169 |
142 |
||
Screw Speed (rpm) |
180 |
|
|||
|
Clamping Unit
|
Clamping Force (KN) |
2680 |
|
||
Toggle Stroke ( mm) |
540 |
||||
Space Between Tie-Bars (mm) |
580*580 |
|
|||
Max.Mould Height (mm) |
600 |
||||
Min. Mould Height (mm) |
230 |
||||
Ejector Stroke (mm) |
145 |
||||
Ejector Tonnage (KN) |
71 |
||||
|
Other
|
Max.Pump Pressure (Mpa) |
16 |
|||
Pump Motor Power (KW) |
22 |
||||
Heating Power (KW) |
16 |
||||
Machine Dimensions(LxWxH) (m) |
5.81*1.8*2.1 |
||||
Machine Weight(Approximate ) (t ) |
8.1 |
||||
