Help CenterBeverage Filling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food
Packaging Type:
Barrel, Bottles, Cans
Payment & Shipping
Payment Methods:
Port of Shipment:
beverage filling machine
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Bottling Machine on SaleUS$ 15000.00 - 15000.00MOQ: 2 Sets -
Industrial Water Cooler for Juice Bottles 5000Bottles/hrUS$ 5,000 - 1,000,000MOQ: 1 Set
-
Carbonated Drink MixerUS$ 5,000 - 50,000MOQ: 1 Set
-
Carbonated Drink Mixer MachineUS$ 2,000 - 20,000MOQ: 1 Set
-
Bottle Unscrambler/unscrambling MachineUS$ 5,000 - 50,000MOQ: 1 Set
Condition
New
Application
Beverage, Food
Packaging Type
Barrel, Bottles, Cans
Packaging Material
Glass, Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V 50Hz
Power
3KW
Place of Origin
Jiangsu, China
Brand Name
Chenyu
Model Number
CGF
Dimension(L*W*H)
2200X2100X2200MM
Weight
500kg
Certification
ISO 9001:2000, ISO9001 SGS
After-sales Service Provided
Engineers available to service machinery overseas

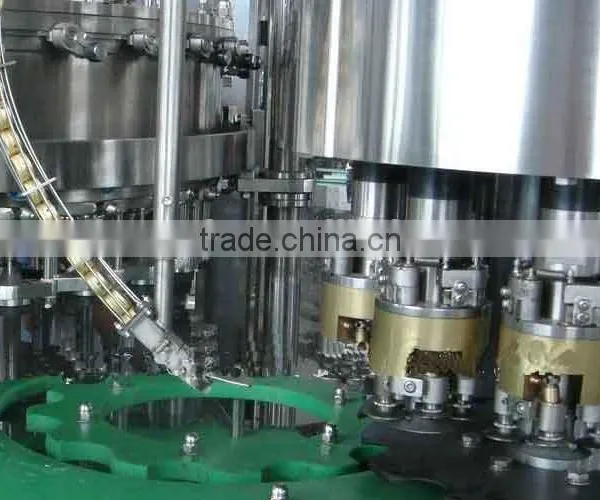

beverage filling machine

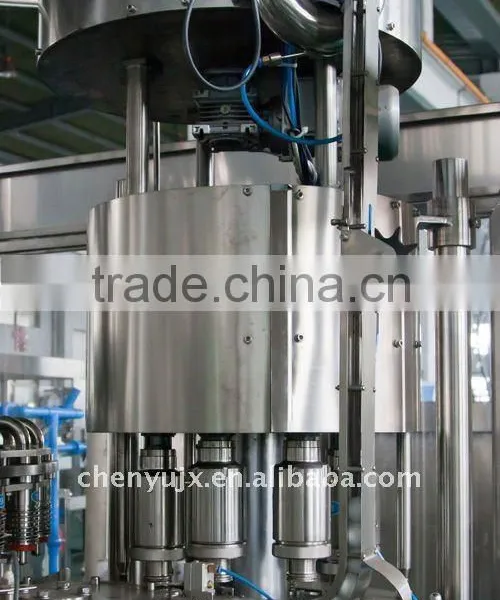

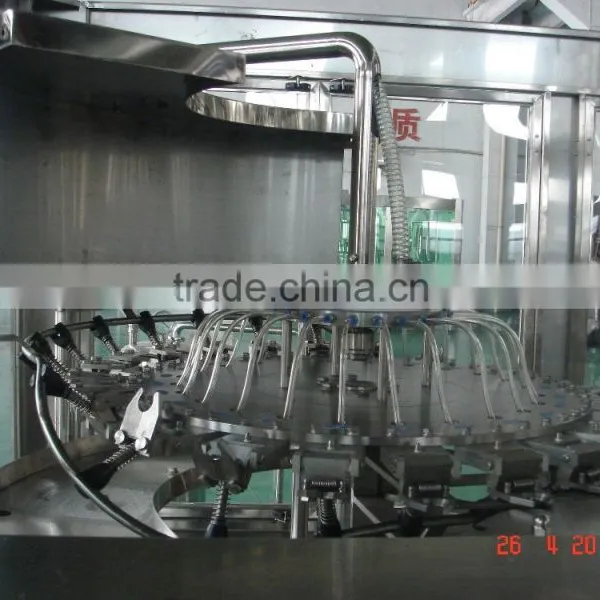

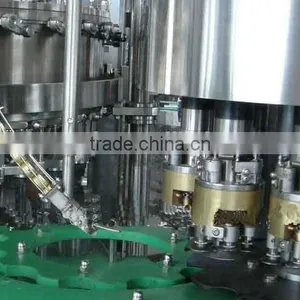

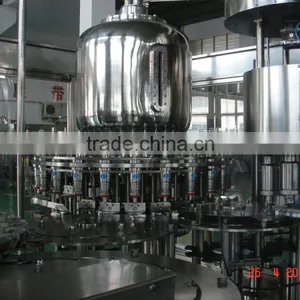

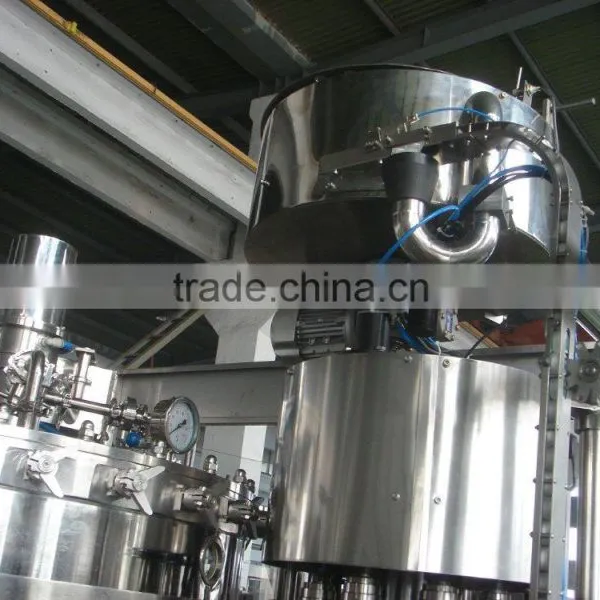

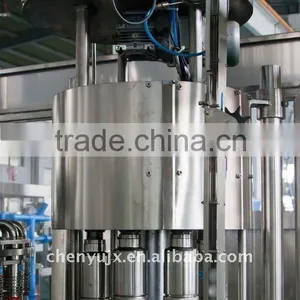

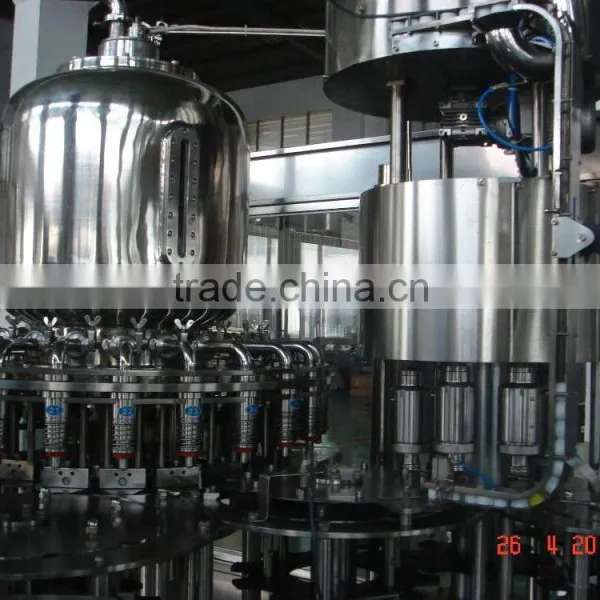

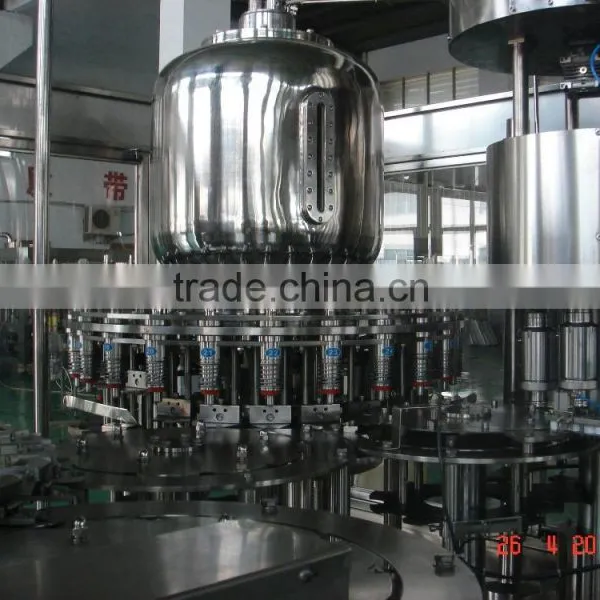

This series water filling machine is used for packing the pure water, mineral water in PET bottles. we can supply the whole line.
Characteristics:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping and bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Main electronic
components are all from famous international enterprises.
4. All spare parts that may touch with water are made from high-quality stainless steel.
Main Technical Specifications
Model: |
CGF16/12/6 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/12 |
CGF40/40/12 |
CGF48/48/12 |
Production Capacity:500ml(B/h) |
4000 |
6000 |
10000 |
14000 |
17000 |
20000 |
Suitable Bottle Standard:(mm) |
150-300 |
150-340 |
150-340 |
150-340 |
150-340 |
150-340 |
Suitable Cap Standard:(mm) |
φ50-φ110 |
|||||
Filling Pressure:(Mpa) |
0.2-0.3 |
|||||
Filling Model: |
By Gravity or Pressure |
|||||
Installed Capacity:(L) |
3.13 |
3.84 |
3.84 |
5.6 |
6.3 |
7.3 |
Filling Temperature: |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Overall SizeL×W×H(mm) |
2400×1670 ×2350 |
2470×1970 ×2350 |
2865×2170 ×2350 |
3700×2570 ×2350 |
3800×2950 ×2400 |
4500×3400 ×2400 |
Total Weight:(kg) |
2500 |
3000 |
4000 |
5000 |
6000 |
7000 |
