Home > Packaging & Printing > Packing Machinery > Filling Machine > Mango Juice/lemon Juice Packaging Line
Mango Juice/lemon Juice Packaging Line
US$ 10,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles, Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / ZHANGJIAGANG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lemon Juice Beverage Processing MachineUS$ 10,000 - 70,000MOQ: 1 Set -
Lemon Juice Beverage Processing FactoryUS$ 10,000 - 70,000MOQ: 1 Set
-
Mango Juice/lemon Juice/orange Juice Processing FactoryUS$ 10,000 - 70,000MOQ: 1 Set
-
Beverage Processing MachineryNegotiableMOQ: 1 Set
-
Fully Automatic Soft Drink Processing MachineUS$ 5,000 - 30,000MOQ: 1 Set
Condition
New
Application
Beverage
Packaging Type
Bottles, Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Pneumatic
Voltage
380V 50Hz
Power
3kw
Place of Origin
Jiangsu, China
Brand Name
Chenyu
Model Number
RCGF Series
Dimension(L*W*H)
2200*2000*2400MM
Weight
3500KG
Certification
ISO,CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Mango juice/lemon juice packaging line2, Filling capacity: 1000-20000bph
3, Advanced Technology
4 High efficiency
Mango juice/lemon juice packaging line
Parameters of Mango juice/lemon juice packaging line
| Model: | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-12 | RCGF40-40-12 | ||
| capacity :500ml | 5000 | 8000 | 12000 | 16000 | ||
| bottle shape: | roud or square | |||||
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
| cap: | PE srew cap | |||||
| filling precision: | ≤±5mm | |||||
| filling pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | ||
| rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | ||
| filling volume :(L) | 3.5 | 4 | 6 | 8 | ||
| overall size:(mm) | 2450*1800 *2350 |
2780*2200 *2350 |
3600*2650 *2350 |
3800*2950 *2400 |
||
| weight: (kg) | 3500 | 4500 | 5500 | 6500 | ||

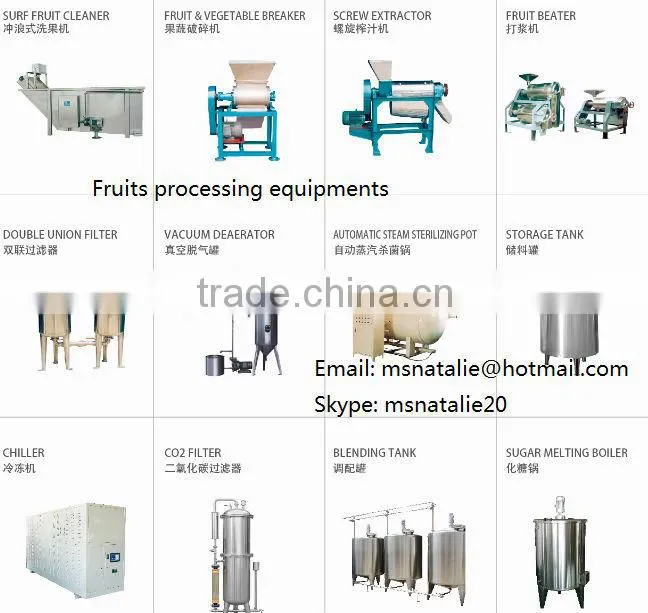

fresh juice extractor , juice crusher , juice sterilizer

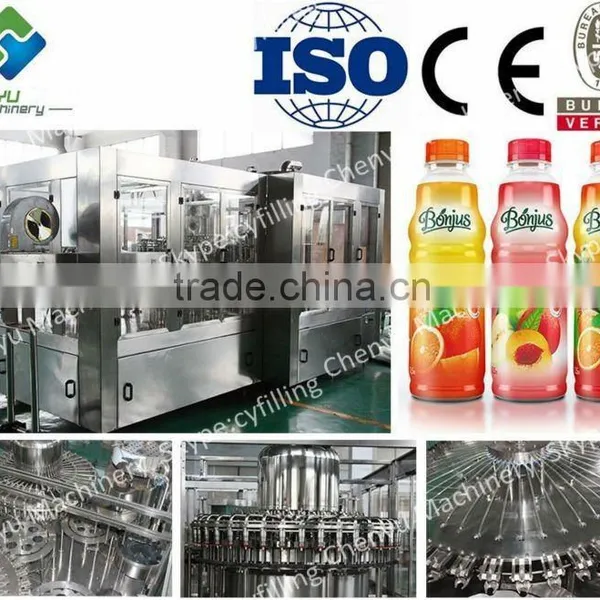

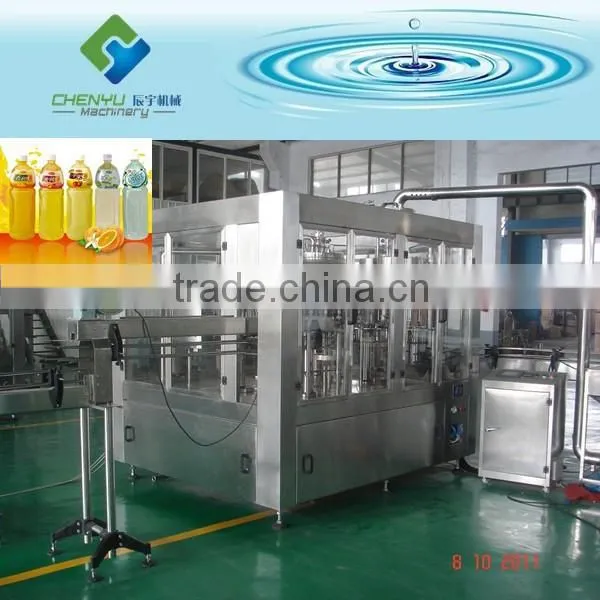

Pictures of Mango juice/lemon juice packaging line
Washer+ filler+capper
Products Introduction:
This RCGF Wash-filling-capping 3-in-1unit: Mango juice/lemon juice packaging line are used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.
This RCGF Wash-filling-capping 3-in-1unit: Mango juice/lemon juice packaging line are used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.
The RCGF Wash-filling-capping 3-in-1unit: Mango juice/lemon juice packaging line can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Mango juice/lemon juice packaging line use the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. Mango juice/lemon juice packaging line have high-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
