Specifications
Fully automatic soft drink processing machine1. Technology from Taiwan
2. Have exported to Germany
3. Pet&Glass bottle
Fully automatic soft drink processing machine
(PET bottle&Glass bottle)
soft drink packing machine , soda water filling machine, CSD bottling factory
soda water filling machinery
bottled soft drink
Take notice please:
we can provide turnkey project design.
I. Characteristics:
Products Introduction:
Fully automatic soft drink processing machine
This DCGF Wash-filling-capping 3-in-1unit: Fully automatic soft drink processing machine is used to produce polyester bottled gas beverage machinery.
The DCGF Wash-filling-capping 3-in-1unit: Fully automatic soft drink processing machine can finish all the process such as wash bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Fully automatic soft drink processing machine characteristics:
- soft drink processing machine uses the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
- Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
- The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
- High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
- Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
- Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON
Fully automatic soft drink processing machine
II. Main Models and technical parameters
Model |
DCGF16/12/6 |
DCGF18/18/6 |
DCGF24/24/8 |
DCGF32/32/12 |
DCGF40/40/12 |
DCGF50/50/15 |
Washing head |
16 |
18 |
24 |
32 |
40 |
48 |
Filling head |
12 |
18 |
24 |
32 |
40 |
48 |
Capping head |
6 |
6 |
8 |
12 |
12 |
12 |
|
Production Capacity: 500ml(bph) |
4000 |
6000 |
10000 |
14000 |
17000 |
24000 |
Suitable Bottle height(mm) |
150-340 |
|||||
Suitable Bottle diameter(mm) |
60-95 |
|||||
Suitable cap diameter (mm) |
50-110 |
|||||
Installed capacity(KW) |
3.13 |
3.84 |
3.84 |
5.6 |
6.3 |
7.3 |
Overall Size L×W×H(mm) |
2400×1670×2350 |
2470×1970×2350 |
2865×2170×2350 |
3700×2570×2350 |
3800×2950×2400 |
4500×3400×2400 |
Total Weight:(kg) |
2500 |
3000 |
4000 |
5000 |
6000 |
7000 |

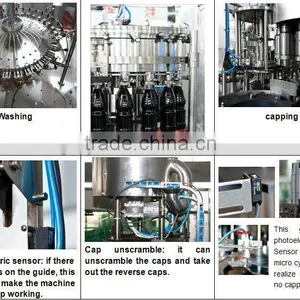

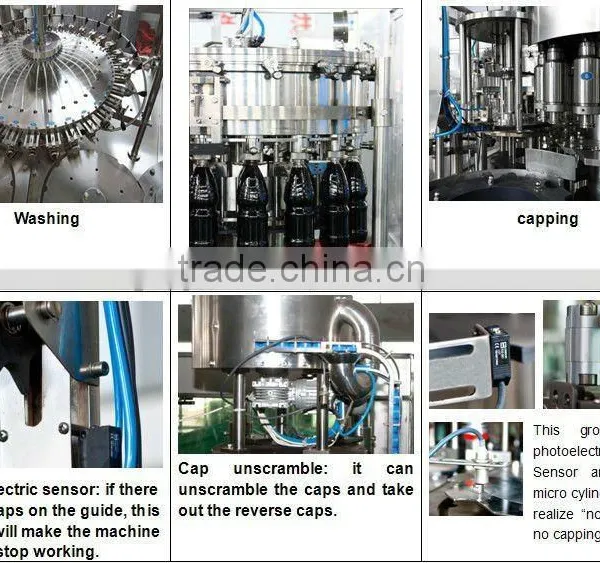

III. Main parts of Fully automatic soft drink processing machine
We can provide the following machine
About Factory
18 years’ experience in soda processing machine ; 8 years gold supplier on .
About Quality
brand-new equipments with latest design and suitable material made.
About After Sale Service
One year warranty period and life time technical support.
