Glass bottle brandy filling machine

Specifications

Glass bottle brandy filling machine
1. Technology from Taiwan
2. Glass bottle
3. Fill vodka or brandy





   Glass bottle brandy filling machine







Glass bottle brandy filling machine --Technical Data





Model	Number of washing filling and capping	Production capacity  Bottle per hour(0.5L)	Applicable bottle specifications (mm)	Power(kw)	Dimension(mm)
CGF16/16/6	16, 16, 5	2000-4000	0.2L-2L D=50-108 mm  H=170-340mm	3.58	2100x1400x2500
CGF18/18/6	18, 18, 6	5000-7000		4.68	2460x1720x2650
CGF24/24/8	24, 24, 8	8000-12000		6.58	3100x2100x2650
CGF32/32/8	32, 32, 8	12000-15000		9.68	3500x2500x2650
CGF40/40/10	40, 40, 10	15000-18000		9.68	4600x1800x2650
CGF50/50/12	50, 50, 12	20000-24000		10.8	5200x4500x3400
CGF60/60/15	60, 60, 15	25000-28000		11.28	6500x4500x3400





Glass bottle brandy filling machine --Equipments detail



Rinser filler capper monoblock brandy machine



1. Glass bottle brandy filling machine works harmoniously with belt-conveyor , It holds the bottles by feeding screw, thus, reducing the possibility of bottles falling over during conveying process.



2. Glass bottle brandy filling machine is used to fill wine, juice into glass bottle and with metal crown capping function.



3. Glass bottle brandy filling machine integrated three function: 1. Rinse the empty glass bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

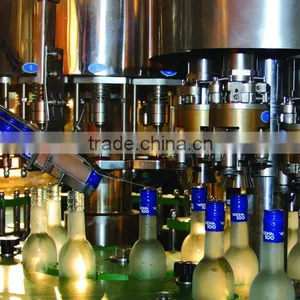

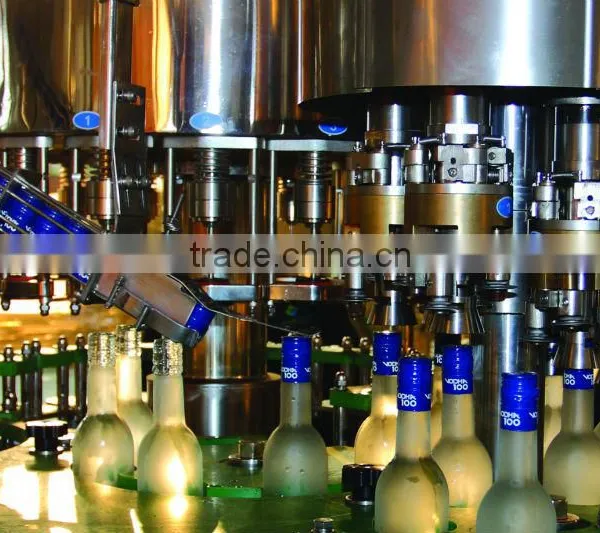

Glass bottle brandy filling machine --Real product photo show







Washing part







Filling part







Capping part

This model is specifical for High cap(the height of the cap more than 50mm)!!!!

This is our  unique advantages!!(copyright)







This model is for normal  aluminum screw cap
