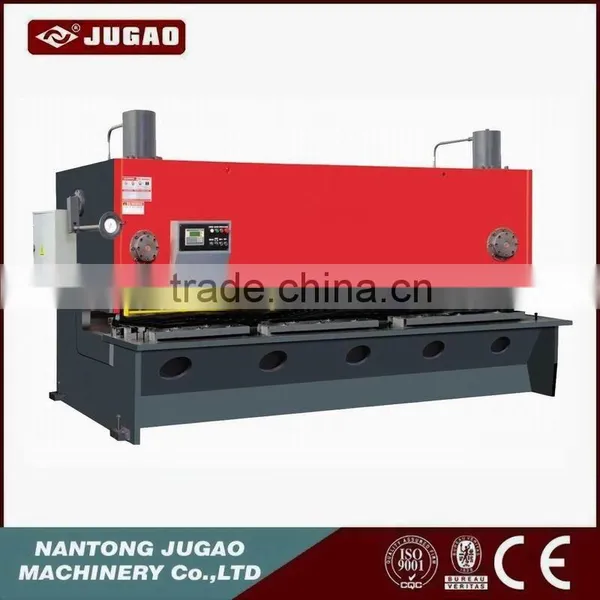

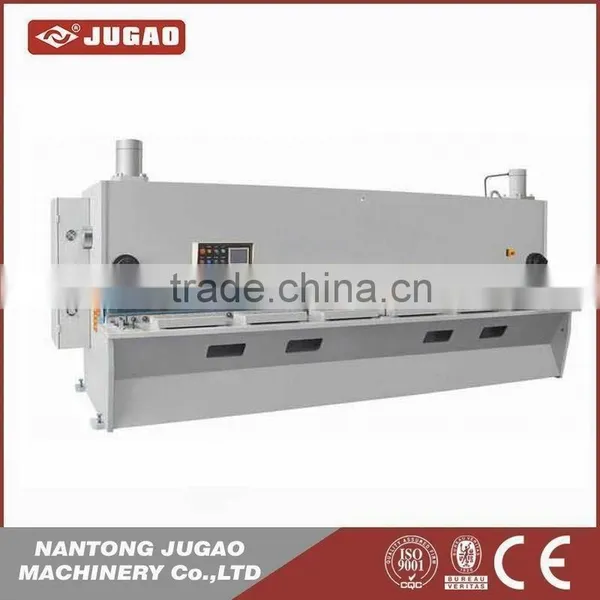

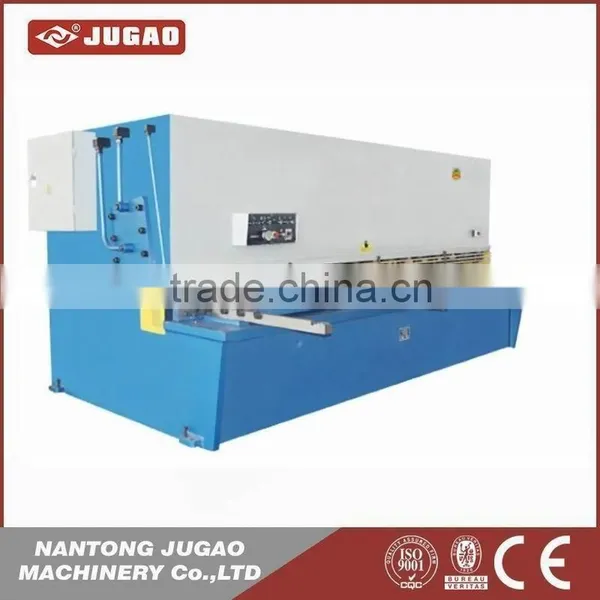

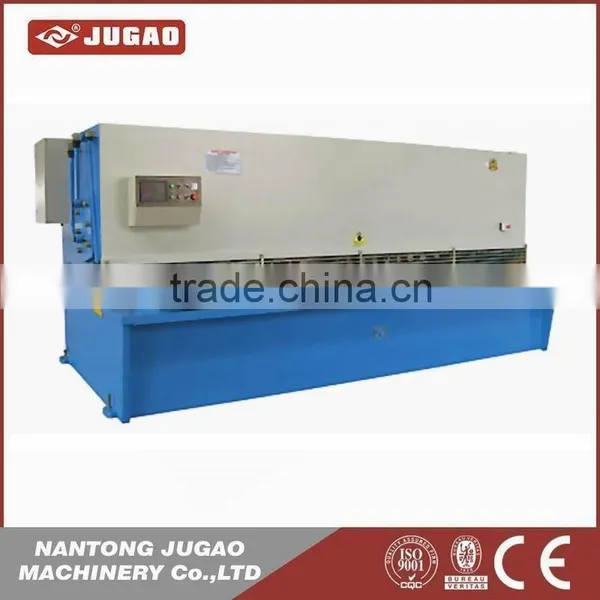

Iron Planks Electric Metal Shearing Machine
US$ 5,000 - 55,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JUGAO
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KRRASS Back Metal Safe Fence With CE Standards 6mm Stainless Steel Shearing Machine Aluminium Sheet 3 Metres Cutting MachineUS$ 6,000 - 7,000MOQ: 1 Acre -
Mechanical Plate Shearing Guillotine Machine JG11D Type Electric Steel CutterUS$ 7200.00 - 7200.00MOQ: 1 Set
-
Cnc Steel Stainless Sheet Cutting Hydraulic Guillotine Shearing Machine Hydraulic Shear Machine Hydraulic Guillotine ShearUS$ 6000.00 - 6000.00MOQ: 1 Set
-
QC11K-8X3200cnc Hydraulic Shearing MachineUS$ 6000.00 - 6000.00MOQ: 1 Set
-
JUGAO Hydraulic Shear With DRO Manufacture in NANTONGUS$ 5,000 - 55,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
JUGAO
Model Number
QC11Y-6X3200
Voltage
by customer's demanding
Rated Power
7.5KW
Dimension(L*W*H)
3740mm*2075mm*1920mm
Weight
6000KGS
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
iron planks electric metal shearing machine
Features
1. Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine. 2. Simplified blade gap adjustments to allow for a wide range of material types 3. Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
| No | Model |
Max cut thickness mm |
Max cut length mm |
Ram Stroke n/min |
Cutting angle ° |
Motor kw |
Machine Szie mm |
| 1 | 4x2500 | 4 | 2500 | 20-40 | 0.5-1.5 | 5.5 | 3100x1600x1700 |
| 2 | 4x3200 | 4 | 3200 | 20-40 | 0.5-1.5 | 7.5 | 3800x1800x1700 |
| 3 | 6x2500 | 6 | 2500 | 16-35 | 0.5-1.5 | 7.5 | 3150x1650x1700 |
| 4 | 6x3200 | 6 | 3200 | 14-35 | 0.5-1.5 | 7.5 | 3860x1810x1750 |
| 5 | 6x4000 | 6 | 4000 | 10-30 | 0.51.5 | 7.5 | 4630x2030x1940 |
| 6 | 6x5000 | 6 | 5000 | 10-30 | 0.5-1.5 | 11 | 5660x2050x1950 |
| 7 | 6x6000 | 6 | 6000 | 8-25 | 0.5-1.5 | 11 | 6680x2200x2500 |
| 8 | 8x2500 | 8 | 2500 | 14-30 | 0.5-1.5 | 11 | 3170x1700x1700 |
| 9 | 8x3200 | 8 | 3200 | 12-30 | 0.5-1.5 | 11 | 3870x1810x1780 |
| 10 | 8x4000 | 8 | 4000 | 10-25 | 0.5-1.5 | 11 | 4680x1900x1860 |
| 11 | 8x5000 | 8 | 5000 | 10-25 | 0.5-1.5 | 15 | 5680x2250x2200 |
| 12 | 8x6000 | 8 | 6000 | 8-20 | 0.5-1.5 | 15 | 6800x2350x2700 |
| 13 | 10x2500 | 10 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 14 | 10x3200 | 10 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 15 | 10x4000 | 10 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 16 | 10x5000 | 10 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 17 | 10x6000 | 10 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
| 18 | 12x2500 | 12 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 19 | 12x3200 | 12 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 20 | 12x4000 | 12 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 21 | 12x5000 | 12 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 22 | 12x6000 | 12 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
