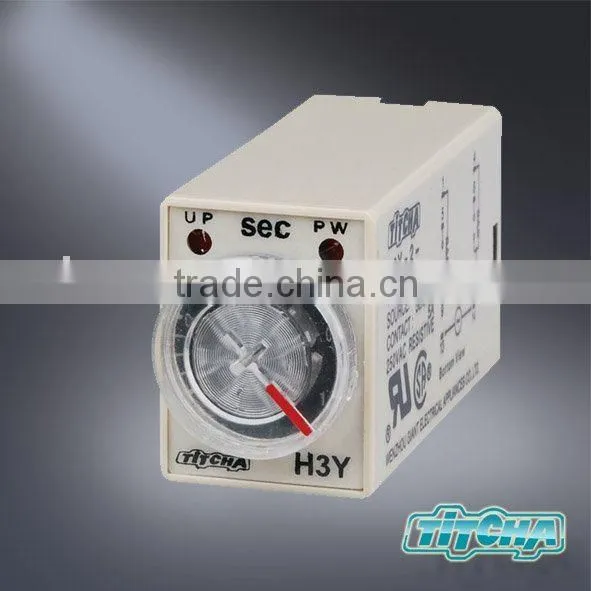

Time Delay Relay Timer H3Y/ST6P Small Size 2year Warranty

Time Delay Relay Timer H3Y/ST6P Small Size 2year Warranty thumbnail-1
Time Delay Relay Timer H3Y/ST6P Small Size 2year Warranty photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
titcha
Model Number:
H3Y/ST6P
Contact Supplier Request Quote Chat Now
Wenzhou Giant Electrical Appliances Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name titcha
Model Number H3Y/ST6P
Theory Time Relay
Usage General Purpose
Size Subminiature
Protect Feature Epoxy
Contact Load Low Power

time relay, timer, time switch H3Y/ST6P

Specification
1) Outline dimensions: 21.5 x 64 x 28 mm
2) Voltage: DC12V-48V, AC12V-380V 50/60Hz
3) Power expend: DC1.0W, AC1.0VA
4) Control output: -2,5A220VAC / -4,3A220VAC
5) Insulation resistance: DC500V, 100MΩ
6) Dielectric strength Vr.m.s:
    a) Between open contacts: ≥1,000VAC
    b) Between coil and contacts: ≥1,500VAC
7) Operating temperature: -10oC - 50oC
8) Huminity: 35% - 85%
9) Weight: ≈50g

Time range
Rated time       Time range              Rated time         Time range

   0.5s             0.05S - 0.5s                0.5m            0.05m - 0.5m

    1s                0.1s - 1s                     1m               0.1m - 1m

    5s                0.5s - 5s                     5m               0.5m - 5m

   10s              0.5s - 10s                   10m              0.5m - 10m

   30s              1.0s - 30s                   30m               1m - 30m

   60s              2.0s - 60s                   60m               2m - 60m

  180s                   3m                        3 h                 0.1h - 3h

  120s             5.0s - 120s                 6 h                0.2h - 6h

   3min             0.1min-3min               12h                4h-12h





Fair

time delay relay timer H3Y/ST6P small size 2year warrantytime delay relay timer H3Y/ST6P small size 2year warranty
