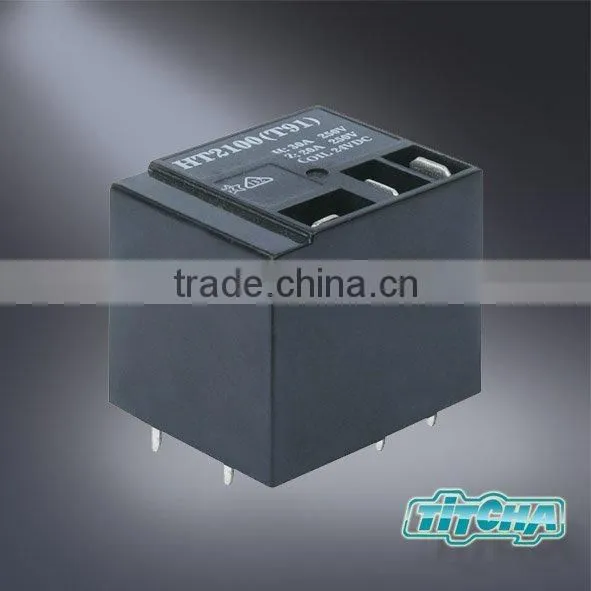

JQX-16F (T91) Relay / Power Relay / RELAY 24V DC Relay 12v Power Supply

JQX-16F (T91) Relay / Power Relay / RELAY 24V DC Relay 12v Power Supply thumbnail-1
JQX-16F (T91) Relay / Power Relay / RELAY 24V DC Relay 12v Power Supply photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Titcha
Model Number:
JQX-16F (T91)
Contact Supplier Request Quote Chat Now
Wenzhou Giant Electrical Appliances Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Titcha
Model Number JQX-16F (T91)
Theory Electromagnetic Relay
Usage General Purpose
Size Other, Miniature, 32.5 * 27.5 * 28
Protect Feature Epoxy
Contact Load Low Power

Specifications

JQX-16F (T91) Relay / Power Relay / 24V DC relay 12v power supply
1. dust-proof cover
2. sealed plastic type
3. PCB terminal



 JQX-16F (T91) Relay / Power Relay / RELAY 24V DC relay 12v power supply

          • 30A contact overating capacity
          • dust-proof cover and sealed plastic type
          • PCB terminals
Product Description



--- Feature ---
  • Size(mm): 32.5×27.5×28
  • Tirminal layout: 1Z,1H,1D
  • Contact capacity:  30A 28VDC/20A 220VAC
  • Contact resistance: ≤50mΩ
  • Inulation resistance: ≥500MΩ
  • Dielectric strength: BOC 1000VAC/BCC 1500VAC


---Technical Parameter ---





Model
JQX-15F(T90)
JOX-16F(T91)
JQX-30F-2C
JQC-38F-3C
JQX-40F-1Z
JQX-40F-2Z
Coil nominal voltage
DC 3 to 110V
DC 3 to 110V
DC 3 to 110V
AC 6 to 220V
DC 6 to 220V
AC 6 to 380V
DC 6 to 220V
AC 6 to 380V
DC 6 to 220V
AC 6 to 380V
Coil nominal power
DC≤0.93W
DC≤0.93W
DC≤0.9W
AC≤1.2VA
DC≤2.5W
AC≤4.5VA
DC≤2.8W
AC≤4.2VA
DC≤3W
AC≤4.5VA
Electrical life
105OPS
105OPS
105OPS
105OPS
105OPS
105OPS
Mechanical life
106OPS
106OPS
106OPS
106OPS
107OPS
107OPS
Operating temperature
-40°C~+85°C
-40°C~+85°C
-40°C~55°C
-40°C~70°C
-40°C~55°C
-40°C~55°C
Weight
≤24g
≤31g
≤71g
≤115g
≤150g
≤180g
Mounting methods
Printed-circuit board
Printed-circuit board
Flange/Outlet
Outlet
Scfrew Mounting
Outlet/Guide rail

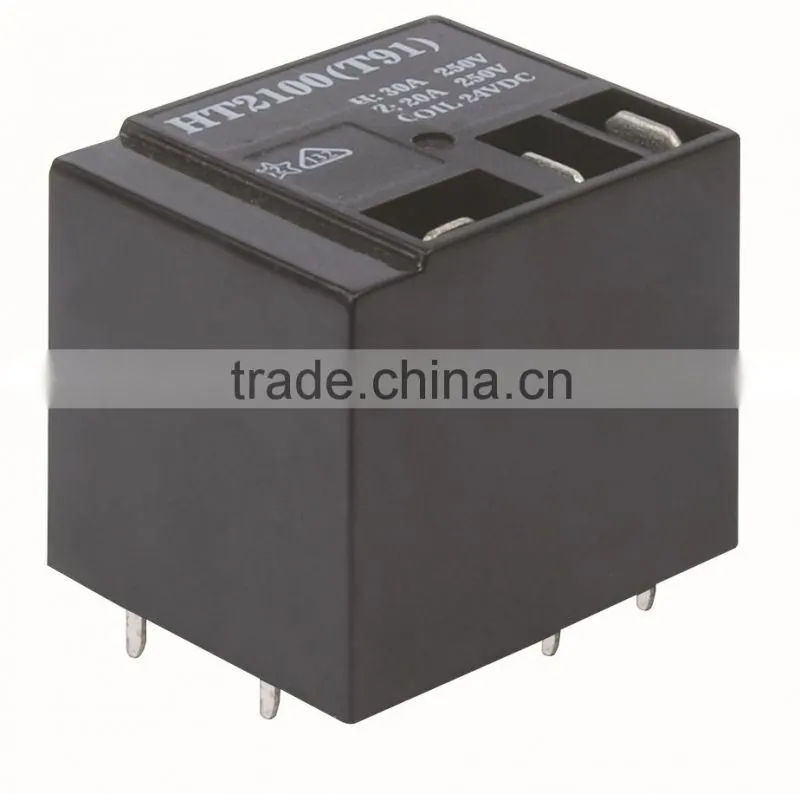

--- Photo show ---



Size:  32.5×27.5×28 mm



 JQX-16F (T91) Relay / Power Relay / RELAY 24V DC relay 12v power supply

Our Services

  • Answer any questions about our products online

  • Send you samples if you are interested in our products

  • Modify the products as your requirements if possible



About Us



JQX-16F (T91) Relay / Power Relay / RELAY 24V DC relay 12v power supply

JQX-16F (T91) Relay / Power Relay / RELAY 24V DC relay 12v power supply







FAQ

 Why Choose TITCHA

  • TITCHA is professional manufacturer of   relays  and serial electronic equipments.

        Time Relay, Power Relay, General-Purpose Relay, Solid State Relay, Miniature Electromagnetic Relay,

                             Timer, Floatless Controller, Module, Relays Socket, AC Contactor

  • TITCHA  products are high quality with CE and hot sale in USA, Europe, Asia and so on
  • TITCHA  aim is to become the leading manufacturer of relays and serial electronic equipments.
  • TIITCHA  ethos is one of outstanding customer service and competitive pricing.
  • TITCHA  "High Quality is Our Obligation" "Great Service is Our Mission"





 How to contact us

      You can contact us by phone, mail, trademanger, skype or fax. We'll reply you as soon as possible.



      TEL: 0577-62756580                 FAX:  0577-62752580

      Address:  No.96 Lingyun Street, Liushi, Yueqing, Wenzhou, Zhejiang Province, China
