Specifications
60.13 General-purpose Relay relay 12v Mini relay60.13 General-purpose Relay relay 12v Mini relay
10A contact operating capacity
Mechanical life 100000
With 2Z, 3Z contact forms
Standard tube terminal
With matched socket
Test buttom
---Technical Parameter ---
Model | 60.13 |
| Coil Rated voltage | DC 6 to 220V AC 6 to 380V |
| Coil Rated Power | DC≤1.6W AC≤2.8VA |
| Insulation resistance | 500MΩ 500VDC |
| Dielectric strength | BCC ≥1500VAC 1min BOC ≥1000VAC 1min |
| Electrical life | 10^5 OPS |
| Mechanical life | 10^7 OPS |
| Opetating temperature | -40℃~70℃ |
| Weight | ≤80g |
| Mounting methods | Outlet |
| Operate time | 25ms/25ms |

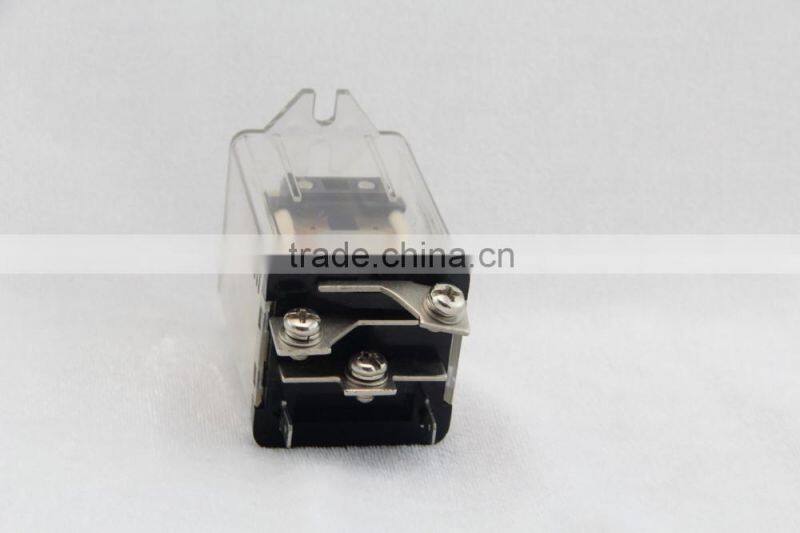

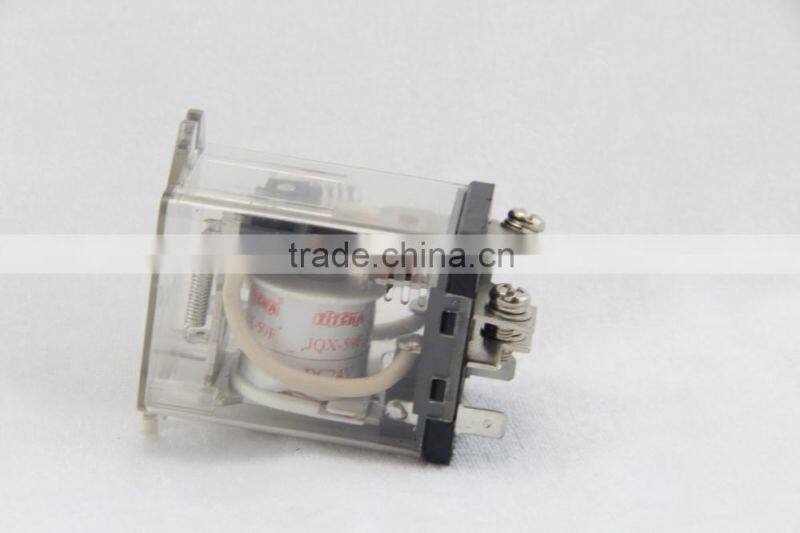

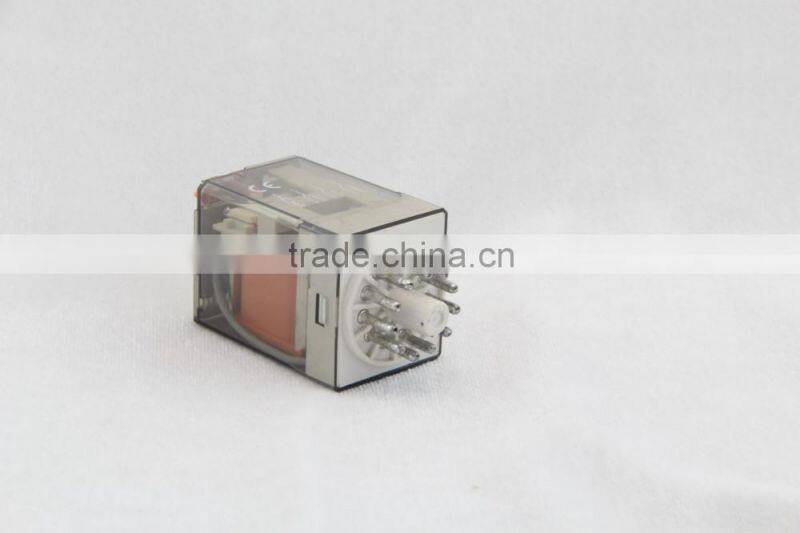

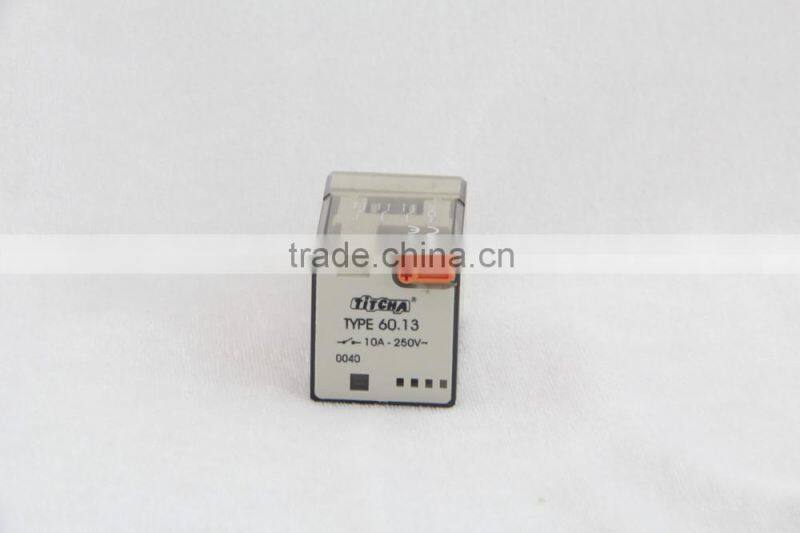

--- Photo show ---

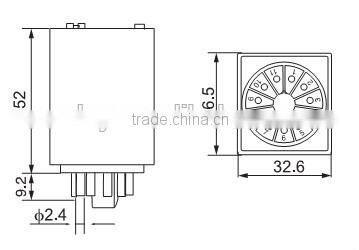

Size mm : 32.6 × 36.5 × 52
--- Analogic Products ---

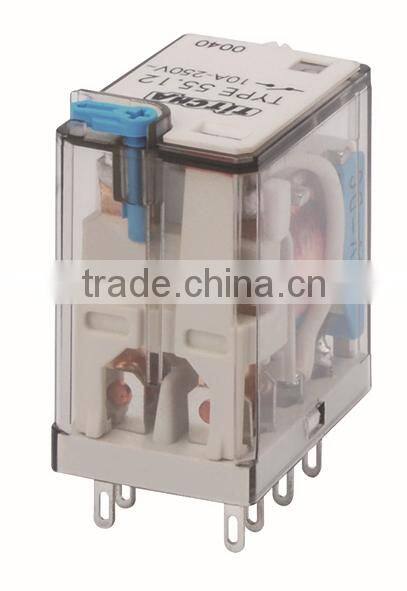

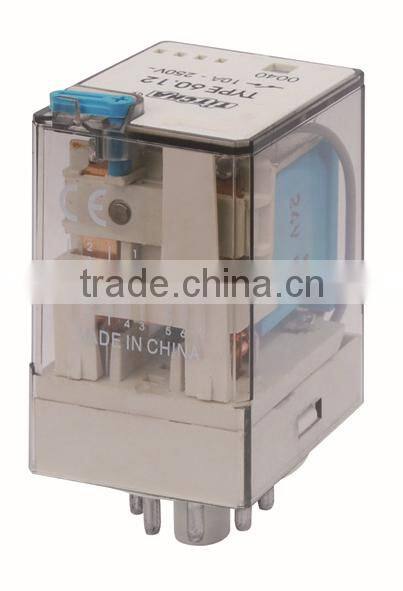

Relay 55.12 Relay 55.14 Relay 60.12
Why Choose TITCHA
- TITCHA is professional manufacturer of relays and serial electronic equipments.
Time Relay, Power Relay, General-Purpose Relay, Solid State Relay, Miniature Electromagnetic Relay,
Timer, Floatless Controller, Module, Relays Socket, AC Contactor
- TITCHA products are high quality with CE and hot sale in USA, Europe, Asia and so on
- TITCHA aim is to become the leading manufacturer of relays and serial electronic equipments.
- TIITCHA ethos is one of outstanding customer service and competitive pricing.
- TITCHA "High Quality is Our Obligation" "Great Service is Our Mission"
How to contact us
You can contact us by phone, mail, trademanger, skype or fax. We'll reply you as soon as possible.
TEL: 0577-62756580 FAX: 0577-62752580
Address: No.96 Lingyun Street, Liushi, Yueqing, Wenzhou, Zhejiang Province, China
