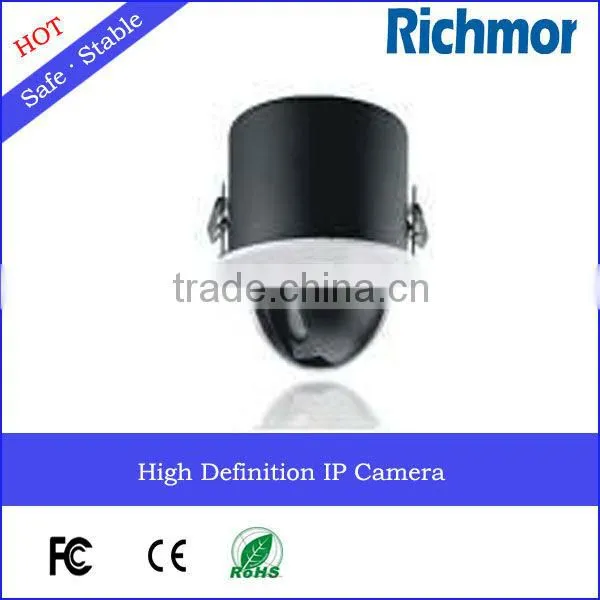

mini speed dome camera 10x zoom camera ptz camera

Specifications

mini speed dome camera 10x zoom camera ptz camera
1.480TVL
2.high quality and perfect service
3.Color to B/W
4.0.001Lux

mini speed dome camera 10x zoom camera ptz camera

1. 8” metal shield; IP66 waterproof grade
2. Chinese / English OSD menu; support multinational languages
3. Unique IR led control technology: PWM control
4. IR effective distance: 140M (long distance led on)
5. Third generation “dot matrix" component, high energy and low consumption
6. Firm aluminum structure; high cooling efficiency
7. Motion detection alarm function; 4 in / 2 out action with alarm
8. Video analysis function; 8 scenes, every scene can set 4 detection zone
9. Built-in high precise RTC clock; support 8 timing missions
10. Built-in surge and lighting protection device, can effectively prevent 3000V instantaneous current
11. Far / passing beam multiple switches can be set; switching interval 9 levels light compensation; uniform optical field distribution; no “flashlight phenomenon.
12. Intelligent control; power output: 5 levels are adjustable; open illumination is adjustable (1-15 levels), can meet the requirement of monitoring target for different distance and brightness
13. Automatic dimming technology; under the tracking condition, can increase the power of target discovery to the most highest to guarantee the best effect. When under the normal condition, it will turn to standby status.
14. Standby function; power (9 levels)/ standby time can be set (15-30 sec);humanism design; lifespan is 3 times than that before
15. Automatic tracking function: effectively monitor the motion target and enlarge the target in the default scene,
16. 3D positioning function (click enlargement), can realize screen coordinate-positioning and partial enlargement by the software.
17. Watching mode function; dome camera has no action (15-60 minutes can be set)
18. Start presetting (360º scanning / 2 spot scanning / presetting bit cruising groups 1 / presetting 1-8 etc.)running



 Parameter

Communication protocols	Automatic identification (PELCO_D/P)
Communication baud rate	1200bps/2400bps/4800bps/9600bps(Soft-Moods)
Dome address	Hard address: 1~255 soft address: 00~255(when in 00, hard address is effective)
Horizontal rotation speed	0.02 ~200º/s(1 ~ 64 levels variable speed)
Vertical rotation speed	0.02 ~90º/s(1 ~ 64 levels variable speed)
Rotation range	Horizontal 360º,vertical 93º
Automatic rotation function	Two levels segmentation control(first level horizontal 180º, secondary level vertical 90º)
360°cruising speed	1 ~ 9 levels variable speed
A-B 2 spot scan position	Can set arbitrarily
A-B 2 spot scan speed	1 ~ 9 levels variable speed
Presetting bit dwell time	5 ~ 60 sec(editable)
Presetting bit running speed	200º sec
Presetting bit quantity	220
Cruising groups quantity	4 groups (16 spot independent editable dwell and dwell time)
Support all-in-one machine	Automatic identification (SONY,Hitachi,Samsung,LG,CNB,made in China;
IR leds	6pcs far led, diameter:20,4pce close led, diameter:16,PWM control
Power supply	AC/DC self-adaption(15V ~ 28V), standard configuration: C24V3A power supply
Power up mode	Outage memory / 360º scanning / 2 spot scanning / presetting bit cruising groups 1 / presetting bit 1-8
Environment temperature	Indoor (0ºC~+40ºC) outdoor (-40°C~+60°C)
Power consumption	≤20W
Figure scanning	4 pcs route,every route can record 512 pcs commands or 15 minutes’ operation
Fan and heater	Automatic temperature control (below 5°open heater,above 40°open fan)
