Specifications
High definition Mini Intelligent High Speed Dome Camera1.480TVL
2.26*12X zoom
3.Color to B/W
4.0.001Lux low illumination

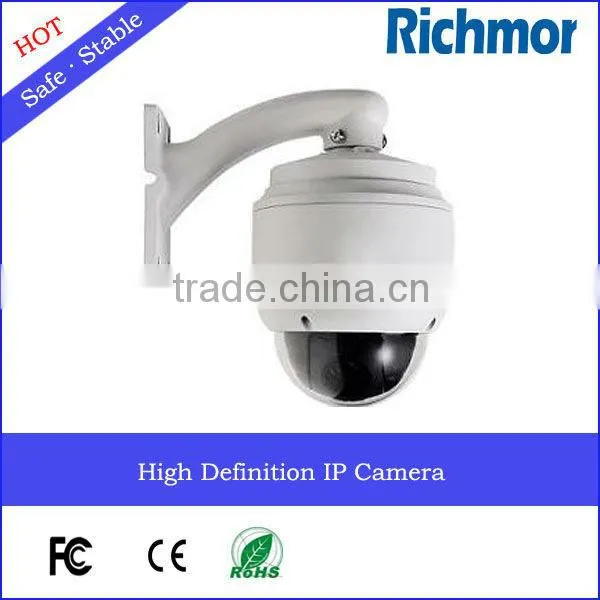

High definition Mini Intelligent High Speed Dome Camera
- 4”transparent cover, non-transparent black rotational dome
- Installation mode: ceiling mounting, indoor/outdoor hanging
- Different high resolution cameras are optional
- Highspeed running video frozen function
- Built-in functional menu; camera, PTZ function can be set
- 200 presetting spots
- Outer cover adopts super high strength alloy material, anti-shock, shielding and heat dissipation, IP66
- Horizontal :360 continuous rotation, vertical :-2º~ 90º with auto reverse , realize no blind spot to monitor
- No need to set up protocols and Baud rate code, can automatically identify the agreements of control and baud rate
- The rotation speed can be adjusted automatically according to the zoom speed
- Support RS485 interface or remote server upgrading on line, support remote line fault diagnosis
- Support 3D auto preset function (click to enlarge), can lock and track suspicious targets rapidly.
- Support auto iris, automatic focus, ATW, BLC and illumination (color/black) auto/manual switch
- Remote address modification; support remote address setting through menu, software upgrading on line.
- Support current status information pass back after-end control device
Parameters
Power supply |
DC15V~DC30V(2A) AC18-30V(2A) |
Environment temperature |
Indoor dome:(-10°C~40°C) outdoor dome:(-25°C~65°C) |
Environment humidity |
≤95% no dewing phenomenon |
Power consumption |
24W |
Communication mode |
RS485 bus |
address range |
1~255 |
Communication baud rate |
1200/2400/4800/9600bps |
Manual operation speed |
0.01°~200°/sec(the highest cruising speed 350°/sec,64 levels variable speed ) |
Horizontal rotation range |
360°unlimited rotation |
Pitching range |
0°~90° |
AUTO MDIMDIX |
Vertical 90°, can automatically rotate 180° |
Zoom speed automatic control |
PTZ control speed can be automatically adjusted according to the zoom length |
2 spot scan |
Can arbitrarily set |
Presetting bit |
128(presetting bit accuracy 0.025) |
Every presetting dwell time |
1~255 sec (can set) |
Cruising groups |
4 groups |
Figure scanning |
4 groups |
Track learning |
500 pcs commands |
Private zone |
8 |
Every cruising group presetting bit |
16 |
Protection grade |
IP66 |
Anti-thunder |
power interface 4500V,communication and video 2500V |
Alarm function |
4CH alarm input,1CH alarm output(optional) |
Temperature control range |
Fan ≥50°C, Heater≤5°C |
CCD sensor |
1/4” IT Exvlew HAD CCD |
Method of synchronization |
Internal synchronization /external synchronization |
Scanning mode |
2:1 interlaced scanning |
resolution |
480TVL |
Lowest illumination |
Color 0.7Lux/black & white 0.001Lux |
aperture |
automatic/manual |
focus |
automatic/manual |
zoom ratio |
18X optic zoom / 12X electronic amplification |
focal distance |
4.1~73.8mm(F1.4~F3.0) |
Image angle |
Wide angle 48°,far angle 2.7° |
BLC |
automatic |
White balance |
automatic |
AGC |
automatic |
Signal system |
NTSC/PAL |
S/N |
>50dB |
Video signal output |
1.0±0.2Vpp |
