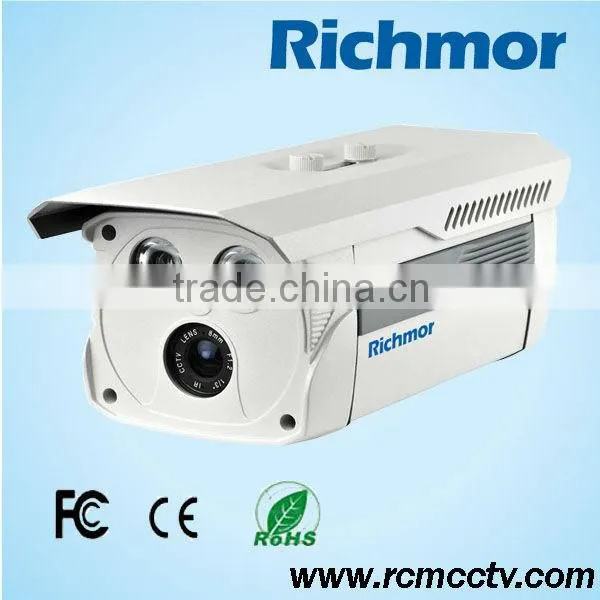

80M IR Night Vision 5.0 Megapixel Ip Camera Digital CCTV Camera Outdoor and Indoor Use

Camera

Image Sensor

2 Megapixel 1/3" Progressive Scan CMOS Sensor

Signal System

PAL/NTSC

Minimum Illumination

Color : 0.5Lux @(F1.2,AGC ON)

Electronic Shutter

auto

Lens Mount

C/CS mount

Auto Iris Lens

DC

Day & Night

optional

Compression Standard

Video Compression

H.264 main profile level 3

Video Bit Rate

32 Kbps~4Mbps


Effective Pixels

1600×1200

Frame Rate

50HZ

First Stream : 12.5fps(1600×1200) 5fps (1280×720) Second Stream : 25fps(320x240)

60HZ

First Stream : 15fps(1600×1200) 30fps (1280×720) Second Stream : 30fps(320x240)

Video Parameter

Saturation/Brightness/Contrast adjustable through client software or web browser

Network

Dual Stream

Support

Intelligent Alarm

Motion detection(4 independent zones available)

Protocols

TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.

General

Reset button,Anti-flicker,Heart beat,Password protection.

Interface

Communication

1 RJ45 10M/100M self adaptive Ethernet interface and 1 RS-485 interface (Wi-Fi interface optional)

General

Working Temperature

-10°C~60°C

Humidity

90% or less

Power Supply

DC12V±10%

Power Consumption

6W MAX

Dimensions(mm)

Width×Depth×Height(122 × 62 × 60)
