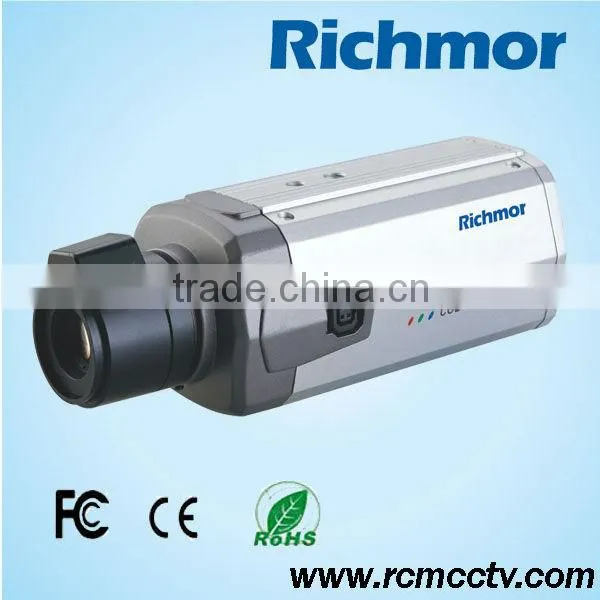

Effio-E Ultra High Resolution Color Camera Super Low Lux

Name: Effio-E Ultra High Resolution Color Camera Super Low Lux
Brand: Richmor
SKU: 107487517
Availability: InStock

US$ 36 - 40 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Richmor

Model Number:

RCM-C312S2

Shenzhen Richmor Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Richmor

Model Number RCM-C312S2

Type Digital Camera

Style Box Camera

Sensor CCD

Technology Other, Digital signal DSP

Special Features Other, High sensitivity

Specifications

1.SONY/SHARP CCD
2.High sensitivity, illumination can be up to 0.5LUX
3.AES electronic shutter / DC auto iris function
4.DSP

Model
CCD sensor	1/3"SONY CCD	1/3"SONY CCD	1/3"SONY CCD	1/3"SHARP CCD	1/4"SHARP CCD
pixel (H×V)	PAL:795×596 NTSC:811×508	PAL:752×582 NTSC:768×494	PAL:500×582 NTSC:510×492
horizontal resolution	540TVL	480TVL	420TVL	420TVL	420TVL
signal system	PAL / NTSC
horizontal synchronous frequency	PAL:15.625KHZ / NTSC:15.734KHZ
clock frequency MHZ	PAL:19.3125 / NISC:19.0699
scanning system	2:1 interlaced scanning
lowest illumination	0LUX(IR led open)
method of synchronization	internal synchronization
S/N	48 dB
electronic shutter	PAL:1/50-1/100,000sec;NTSC:1/60-1/100,000
Gamma characteristics	0.45
video output	1 Vpp,75 Ohms
AGC	automatic
power supply	12VDC(+/-10%)
electricity current	300mA
weight	0.25Kg
working temperature	-10-45°C
color	silver
