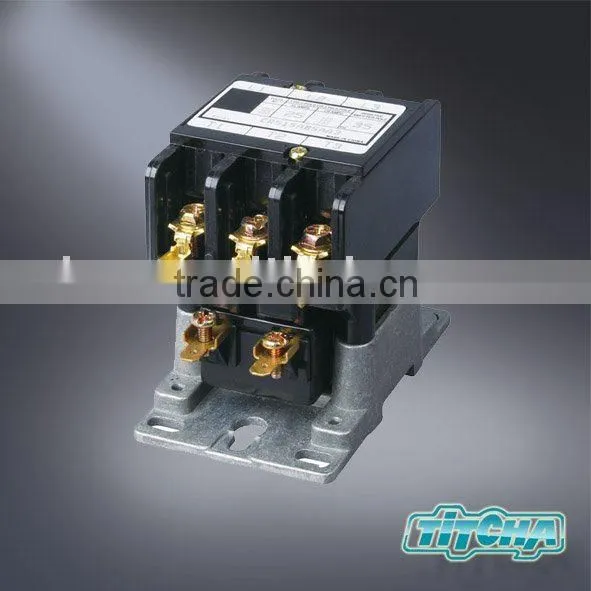

AC Contactor TX-30

FOB Price

USD $3 - $15 / Piece

1000 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai or Nongbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	titcha
Model Number	TX-30	Electricity Type	AC
Number of Pole	2	Phase	2
Main Circuit Rating Voltage	Other, 220	Main Circuit Rating Current	100a

Product Description

A.C contactor TX-30

Service Conditions:
1. Ambient Temperature:-5-+40
2. Elevation:≤ 2000m
3.Humidity:≤ 50% at 40,≤ 90% at monthly temperature of 25
4. Pollution Degree 3
5. Mounting type: type III
6.Angle between mounting surface and vertical surface:≤ 5º
7.Screw mounting.

Table 1:

Size	TX10	TX20	TX30	TX40	TX40-2
Rated insulating voltage Ui(V)	660	660	660	660	660
Rated operating volt Ue(V)	220	220	220	220	220
Rated thermal current Ith(A)	25	35	45	55	55
AC-8a Rated operating current under AC-8a le(A)	16	25	32	40	40
AC-8b Rated operating current under AC-8b le(A)	8	12.5	16	20	20

Table 2:

System	Rated bolt.Ue(V)	Rated Current.leA)	Making&breakingConditions
AC-8a	220	See Table 1	lc/le	Ur/Ue	CosΦ	Operating times
AC-8b			1.0	1.05	0.80	30000
AC-8b			6.0	1.05	0.35	6000

Table 3:

System	Rated bolt.Ue(V)	Rated Current.leA)	Making Conditions			Breaking Conditions			Service Life(times)	Operatingfrequency (Times/h)
			lc/le	Ur/Ue	CosΦ	lc/le	Ur/Ue	CosΦ
AC-8a	220	le<17 le≥17	6	1	0.65	1.0	0.17	0.65	300	60
					0.35			0.35
AC-8b		le<17 le≥17	6		0.65	6.0	1	0.65	120	20
					0.35			0.35
