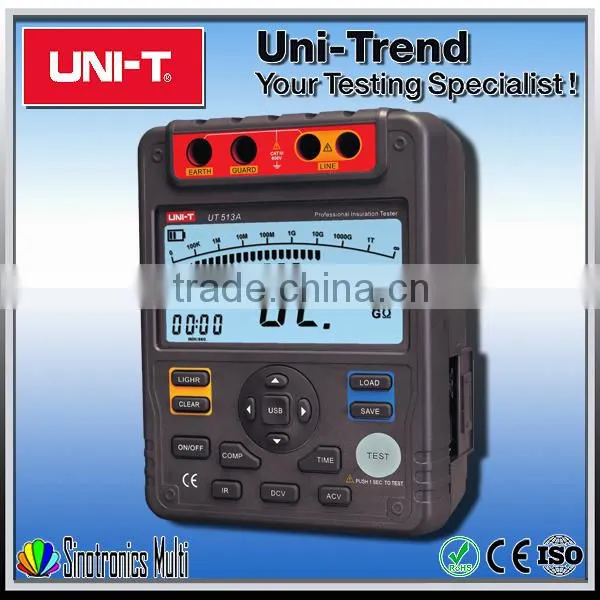

Best Insulation Resistance Testers UNI-T UT513 Quality Choice
US$ 147.6 - 155
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UT513A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Insulation Resistance Testers UNI-T UT513AUS$ 169.5 - 177.9MOQ: 1 Piece -
Best Multimeter Digital UNI-T UT582US$ 54.5 - 62.4MOQ: 20 Pieces
-
Best Multimeter Digital UNI-T UT522US$ 77 - 87MOQ: 1 Box
-
Best Multimeter Digital UNI-T UT502AUS$ 50 - 57MOQ: 1 Box
-
Best Multimeter Digital UNI-T UT501AUS$ 29 - 33MOQ: 1 Box
Place of Origin
Guangdong, China
Brand Name
UNI-T
Model Number
UT513A
Display Type
Digital Only
Measuring Range
1MΩ~1000GΩ
Testing Voltage
500V/1000V/2500V/5000V
Accuracy Class
±(3%+5)
Operating Temperature
0~40
Dimensions
202mm*155mm*94mm
Product Overviews
Product image
Product Description
Product parameters
| Specification | Range | Best Accuracy | |
| Model | UT513 | ||
| Insulation Resistance(Ω) | Test Voltage | 500V/1000V/2500V/5000V | 0%~20% |
| 500V | 1MΩ~20GΩ | ±(3%+5) | |
| 1000V | 2MΩ~40GΩ | ±(5%+5) | |
| 2500V | 5MΩ~100GΩ | ±(3%+5) | |
| 5000V | 10MΩ~1000GΩ | ±(3%+5) | |
| Short Circuit Current | <1.8mA | ||
| DC Voltage (V) | 600V | ±(2%+5) | |
| AC Voltage (V) | 600V | ±(2%+5) | |
| Features | |||
| Display Count | 9999 | ||
| Auto Range | √ | ||
| Auto Power Off | √ | ||
| Low Battery Indication | √ | ||
| Data Logging | 18 | ||
| Comparison | √ | ||
| Polarization Index(PI) | √ | ||
| Dielectric Absorption (DAR) | √ | ||
| USB Interface | √ | ||
| LCD Backlight | √ | ||
| Analogue Bar Graph | 30 | ||
| Over Range Warning | √ | ||
| High Voltage Indication | √ | ||
| Timer | Around 15 minutes | √ | |
| General Characteristic | |||
| Power | 1.5V Alkaline Batteries(LR14)×8 | ||
| LCD Size | 123mm x 58mm | ||
| Product Color | Red & Grey | ||
| Product Net Weight | 2Kg | ||
| Product Size | 202mm×155mm×94mm | ||
| Standard Accessories | 2PCs of One Plug Test Lead to One Alligator Clip(Black and Green),1 PC of Two Plugs Test Lead to One Alligator Clip(Red), Batteries, Tool Box, USB Cable,PC Software CD, Power Adaptor | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 4 PCs | ||
| Standard Carton Measurement | 525mm x 335mm x 345mm (0.061CBM Per Standard Carton) | ||
| Standard Carton Gross Weight | 19Kg | ||
