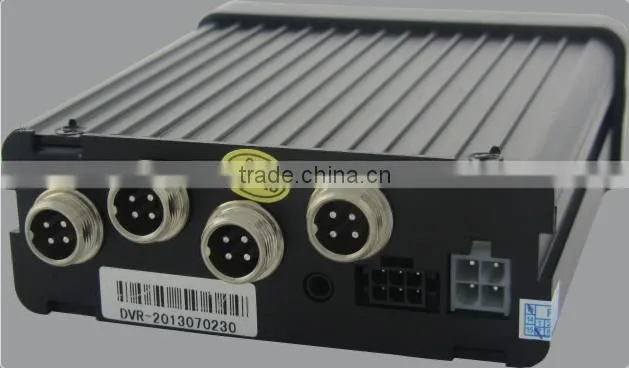

Help Center4CH SD Card USB 3G GPS WIFI Car Mobile DVR
Related Products
-
Support PTZ Camera for Vehicle Surveillance Mobile DVR 3GUS$ 1 - 225MOQ: 1 Piece -
Remote Veiwing for Vehicle Security of 3G Mobile DVRUS$ 1 - 225MOQ: 1 Piece
-
CE FCC RoHS HDD 4Ch 3G Mobile DVR Internet With RJ45 PortUS$ 133 - 259MOQ: 1 Piece
-
Anti-vibration 3G GPS Mobile DVR CamerasUS$ 133 - 259MOQ: 1 Piece
-
High Definition GPS 3G Mobile DVR Kit For VehicleUS$ 133 - 259MOQ: 1 Piece
Specifications
The advanced H.264 Video compression and decompression, 3G GPS WIFI optional.SYSTEM OUTLINE
FEATURES
MDR208S is a cost-effective and functional mobile digital video recorder specially designed for vehicle surveillance and remote monitoring. It combined high speed and performance embedded processor and embedded operating system. The advanced H.264 Video compression and decompression (MP@ML), wireless transmission, GPS Positioning make MDR208Sto be a very powerful and perfect solution for vehicles.
FEATURES AND CAPABILITIES
- The advanced H.264 Video compression and decompression (MP@ML), high compression rate and high resolution;
- Real time recording: 100f/s (PAL); 120f/s (NTSC). Recording resolution: CIF/ 2CIF/ D1 optional, maximum support 2CH of D1 & 2CH of CIF
- Support 1CH audio input/ output
- Using SD card as the storage equipment and supporting 2 SD card slots;
- 4Ch alarm input/ 2Ch alarm output.
- 8-36V wide voltage supply design, applied to a variety of Vehicle types;
- Support DC: +8V ~ +36V power input, and 12V/1.5A power output;
- Very good anti-vibration and anti-high temperature features for ensuring stable picture quality;
- Built-in GPS module (optional), real-time recoding the tracing of vehicle and auto time check;
- Built-in G-Sensor (optional), real-time recoding the status of vehicle;
- Built-in wireless transmission module (optional, including GPRS/3G/WIFI) to support the upload and download of recording data and control information.
- Playback analysis software can playback the video, audio, GPS trace, vehicle status synchronously;
- All materials and PCB production up to RoHs standard;
- Elegant and industrial design:
Dimensions: 95(W) x38 (H) x115 (D) mm
Weight: 0.60KG
SPECIFICATION
ITEM |
CHARACTERISTICS |
DESCRIPTION |
SYSTEM |
Processor |
ARM+DSP Architecture,Use ARM 926 as Main Controller. Use DSP to process audio and video streaming and specialized Video Core and Image Process Engine. |
OS |
Linux2.6 |
|
Signal System |
NTSC/PAL |
|
GUI |
Multi-Levels graphic user interface |
|
Security |
Administrator and user password supported |
|
VIDEO |
Input |
4 CVBS, 1.0Vp-p, 75Ω |
Output |
1 CVBS, 1.0Vp-p, 75Ω |
|
Video Output Parameters |
PAL: 25Frame/s ,CCIR625 line,50 field NTSC: 30Frame/s,CCIR525 line,60 field |
|
AUDIO |
Input |
Mic or line in, 1 channel |
Output |
1 channel output ,100mV-500mV/100-500 Ω |
|
Output Voltage |
1V ~2V |
|
Audio Recording |
Synchronized with video |
|
VIDEO AND AUDIO CODEC |
Video Compression Criteria |
H.264,VBR/CBR |
Recording Resolution |
D1/HD1/CIF, MAX: 2 channel D1 and 2 channel CIF |
|
Video Streaming |
ISO14496-10 |
|
Audio Streaming |
G.726 |
|
Video Bit Rate |
CIF: 256Kbps ~ 1.5Mbps, 4 quality level support, HD1: 600Kbps ~ 2.5Mbps, 4 quality level support D1: 800Kbps ~ 3Mbps, 4 quality level support : |
|
Video Frame Rate |
PAL 1~25,NTSC 1~30, Adjustable. |
|
STORAGE EQUIPMENT, COMMUNICATION INTERFACE AND PERIPHERALS |
Storage |
SD card: support 1G~32G, SDHC |
Alarm Input |
4 Channel level input |
|
Alarm Output |
4 Channel level output |
|
Serial Port |
Support one RS232 interface |
|
Ethernet |
RJ45,10M/100M Self-adaption network interface |
|
3G Communication |
Built-in EVDO/WCDMA/TD-SCDMA Module (Optional) |
|
2.5/2.75G Communication |
Built-in GPRS/CDMA/EDGE Module (Optional) |
|
GPS |
Support Built-in/External GPS Module, Location and speed data can be recorded in the recording files. |
|
PC SOFTWARE |
PC Client |
Support 4 channels playback simultaneously and analyze the vehicle information embedded in the recording files at the same time. Support Forward Fast Playback and Reverse Fast Playback. Support Alarm Point and Power on Point Searching etc. |
FIRMWARE UPGRADE |
|
Support firmware upgrade through the SD card or TFTP |
POWER SUPPLY |
Power Input |
DC:+6V ~ +48V |
Power Output |
+12V 3A |
|
WORKING ENVIRONMENT |
Operating temperature |
-25°C to +75°C |
Operating Humidity |
20% to 80% |
