Support PTZ Camera for Vehicle Surveillance Mobile DVR 3G

Name: Support PTZ Camera for Vehicle Surveillance Mobile DVR 3G
Brand: Richmor
SKU: 107486077

US$ 1 - 225 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Richmor

Model Number:

BL-MDR500

Shenzhen Richmor Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Richmor

Model Number BL-MDR500

Specifications

support PTZ camera for vehicle surveillance mobile DVR 3G
1. High quality
2. Best price
3. Fast delivery

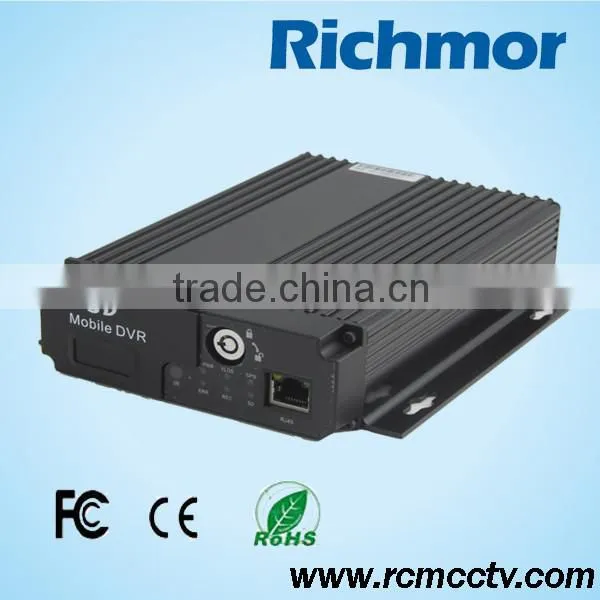

School Bus Mobile DVR SD Card MDVR with 3G GPS

Model: RCM-MDR501WDG

Main Feature:

1. 4 channel SD card Mobile DVR

2. Support 3G, GPS function

3. Support PTZ remote control

4. Support real-time surveillance

5. Supports SD overwritten by days

6. Supports backup and upgrade with SD card

7. Self recorvery after power reconnected

8. Stable aluminum alloy structure with shock absorber

Pictures:

Specification:

Items	Device parameters	Performance index
Name	Product Name	4 Channel Mobile DVR (SD Storage)
System	Operation System	Linux
	Operation Interface	Graphical Interfaces, Chinese/English optional
	File System	Proprietary Format
	System Privileges	User Password
Video	Video Input	4ch SDI Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras
	Video Output	1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal
	Video Display	1 Or 4 Screen Display
	Video Standard	PAL:25frames/Sec;NTSC:30frames/Sec
	System Resources	PAL:100 Frames; NTSC:120 Frames
Audio	Audio Input	Two Channels Independent Input 500Ω
	Audio Output	1 Channel(4 Channels Can Be Convert Freely)
	Basic Output Level	1.0—2.2V
	Distortion Plus Noise	≤-30dB
	Recording Mode	Sound And Image Synchronization
	Audio Compression	ADPCM
Alarm	Alarm in	4 Channels Independent Input. High Voltage Trigger
	Alarm out	2 Channels Independent output
	Move Detect	available
Network Interface	3G	Can Expand One WCDMA or CDMA2000 Module Inside
GPS Interface	GPS	Can Expand GPS Module inside
Extend Interface	Intercom	Can Expand Intercom Module Inside
Others	Power Consumption	DC8-36V 5% ≤10W
	Working Temperature	-20℃ ~ +85℃ ≤80%
	Clock	Built-In Clock, Calendar
Packaging	Product Size	170(L)141(W)41(H)mm
Packaging	Product Net Weight	0.7KG
