Custom-made professional hydraulic uncoiler straightener machine
1. Main Parameters:
No. |
hydraulic uncoiling machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1000-1250mm |
3 |
inner diameter |
500-508mm |
4 |
Dimensions |
2.6*1.7*1.9m |
5 |
Power |
3+3 kw |
6 |
bearing |
5 tons-10tons |
7 |
Productivity |
0-20m/min |
8 |
control system |
PLC control |
9 |
Weight |
About 3.1T |
10 |
Voltage |
380V 50Hz 3phases |
2. Specification
- Form of decoiler : Hydraulic Tension and electric discharge
-Motor power of decoiler : 3KW
- Motor power of Hydraulic station : 3KW
- Inside dia of coil : φ508mm,φ610mm
-Outside dia of coil : φ1800mm
-Width of coil : 1600mm
-Weight of coil : 25T
-Speed of decoiling : 0-20m/min
-Pressure of hydraulic system : 10Mpa
-Way of control : Multi-level photoelectric automatic tracking
-Outline dimension of decoiler : 3200mm×1700mm×1800mm
- Voltage of control : 3P/440V/60HZ
-Voltage of hydraulic pressure : DC24V

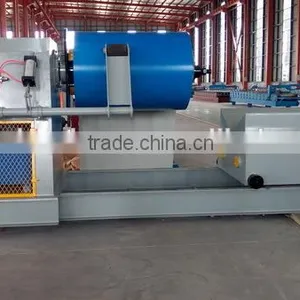

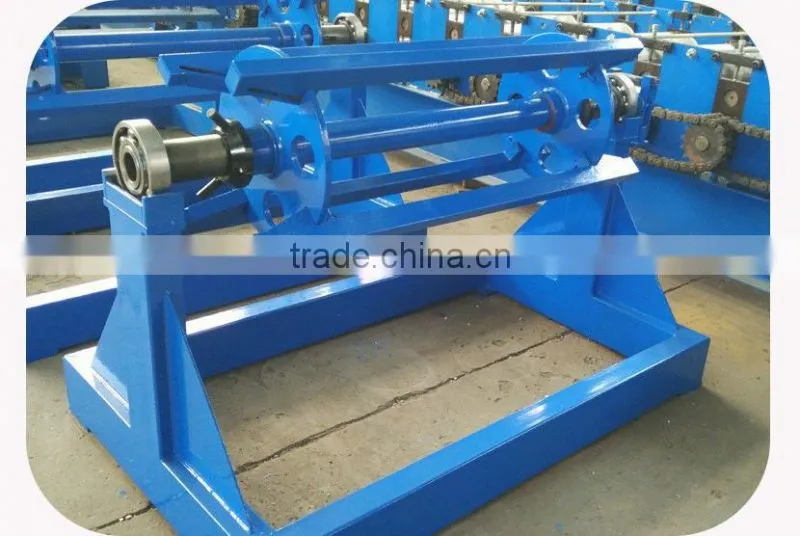

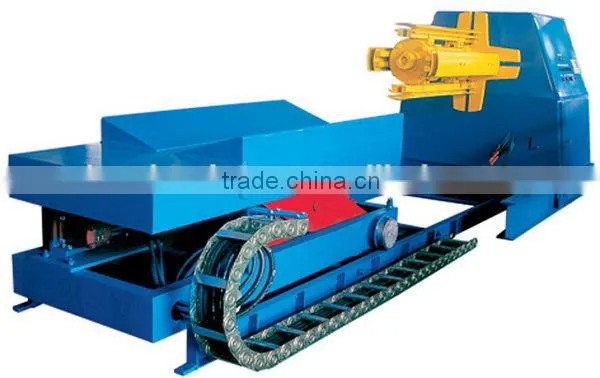

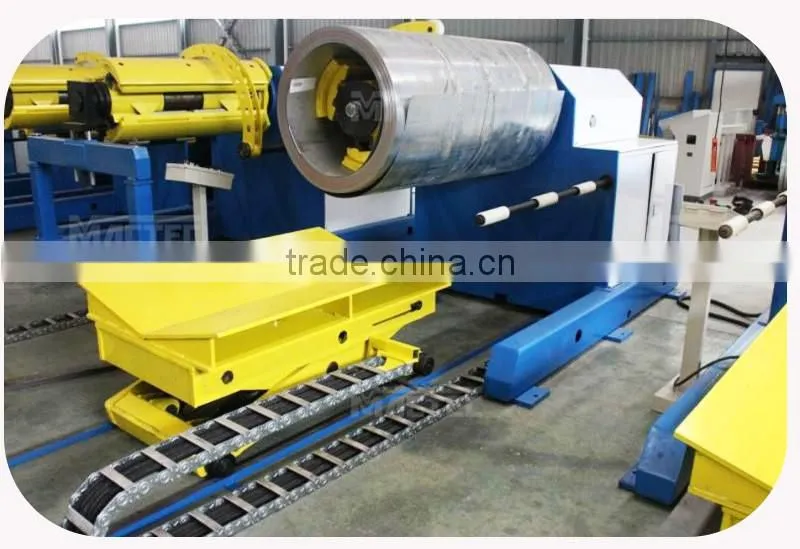

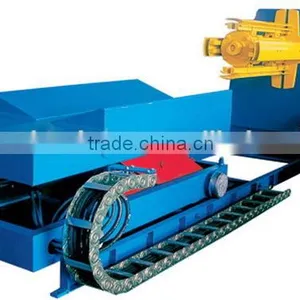

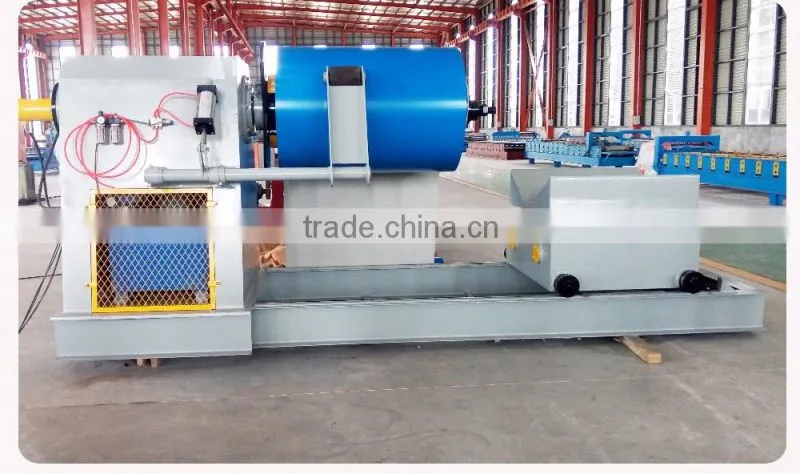

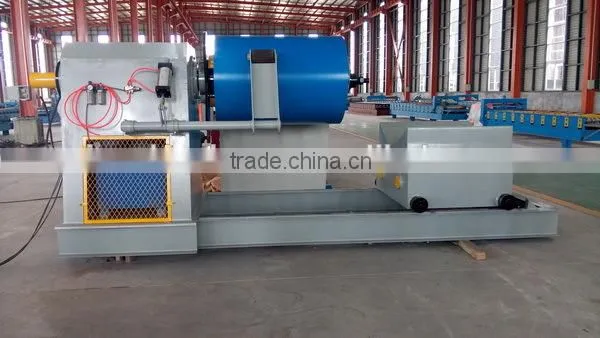

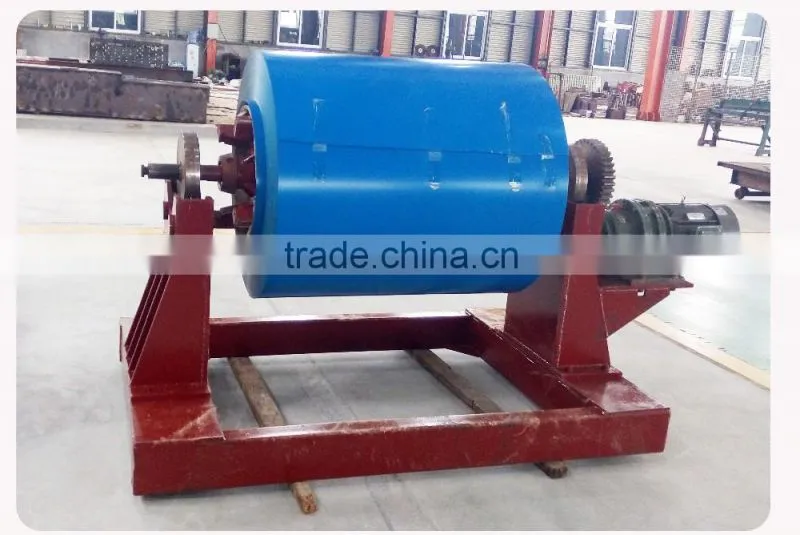

3. Decolier Showing

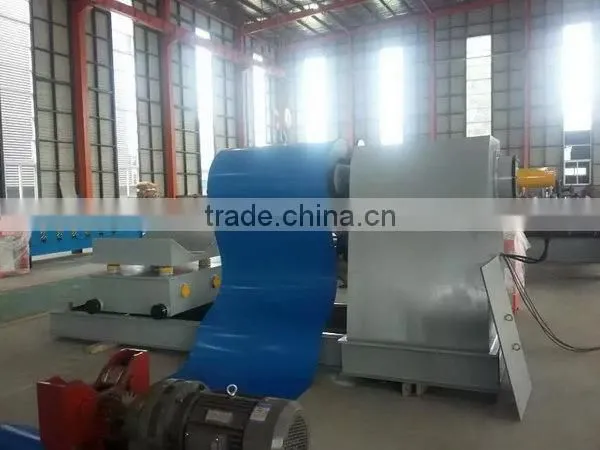

4.Production Flow showing
5. Certification Show

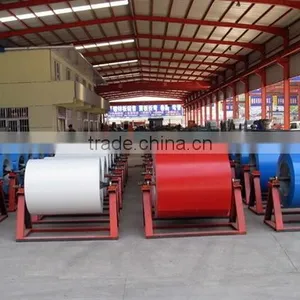

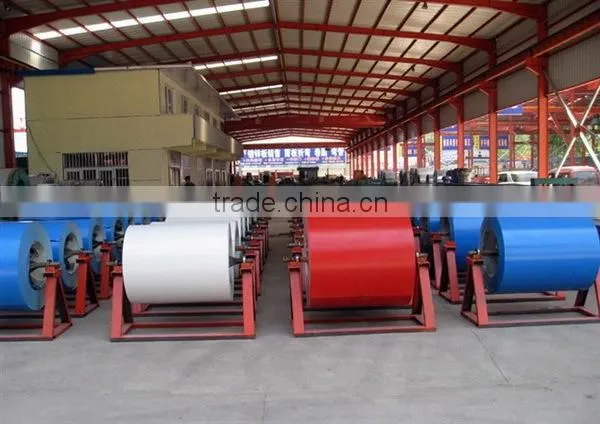

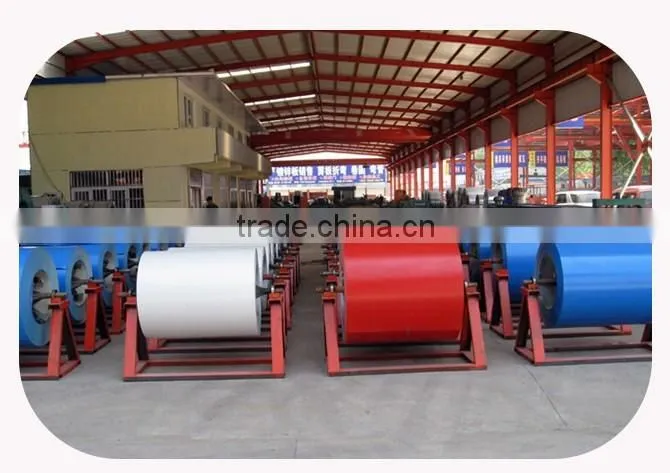

6. Factory Showing
7. Quick Questions

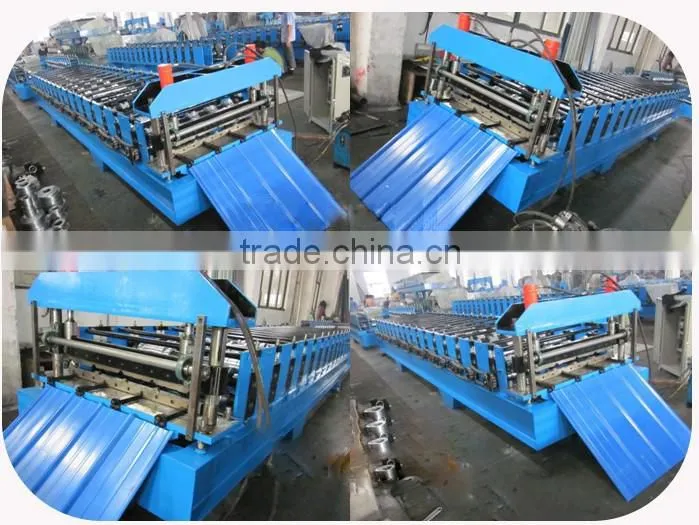

8. Related Machine
hydraulic uncoiler straightener machine
