3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus

3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus thumbnail-1
3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus thumbnail-2
3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus thumbnail-3
3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus thumbnail-4
3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus photo-1
3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus photo-2
3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus photo-3
3G 4G 4CH 720P Mobile Cameras Vehicle BD/GPS Tracking DVR for Car Truck Van Bus photo-4
US$ 75 - 280 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM/Richmor
Model Number:
RCM-MDR7104 series
Contact Supplier Request Quote Chat Now
Shenzhen Richmor Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or as you request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM/Richmor
Model Number RCM-MDR7104 series
Our Company

Shenzhen Richmor Science & Technology Development Co.,Ltd

Shenzhen Richmor Science & Technology Development Co.,Ltd, is a high-tech corporation specialized in developing,producing and selling intelligentized digital CCTV systems.
Our products mainly include 3G/4G mobile DVR, network /analog million pixels High definition SD card/HDD mobile DVRs, 3G/4G portable DVRs for Law enforcement;

And many kinds of cameras;Including CCTV night viewing HD PTZ camera,analog car cameras,car high definition cameras and other professional car CCTV equipment.


"4 M"  MANAGEMENT

More enhancements of product quality everyday.
More progress of services and sales everyday.
More widely the effect of our brand expands everyday.
More smiles to each of us everyday.


Product Description

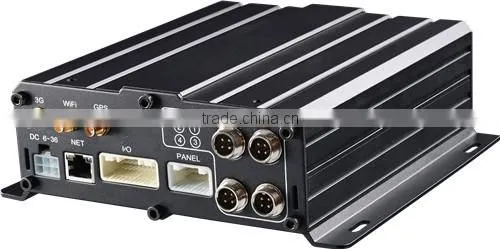

RCM-MDR7104


1. Real time HD video record,720p/D1/HD1/CIF optional,video quality adjustable;

2. HDD+SD card record(128GB SD card )shockproof design protect data lost from shock&dust;
3. Special file predistribution function, solve the file fragmentation of disk re-writing;
4. ACC delay （max support 24 hours delay）；
5. Support SMS/client check and modify device configuration;
6. Support manual ,overspeed /lowspeed,parking,motiondetection,cross the border,route deviation fatigue driving,dangerous driving and lane departure, detection alarm;
7. 8CH alarm input (door open/close;lighting;turning;braking;reversing etc),2CH alarm output;multi-alarm linkage;
8. Support local picture capture when alarm trigger;
9. Support wireless AP hotspot;
10. Support SD card upgrading/OTA auto upgrading;
11. Support mobile phone remote monitor phone calling function;
12. Support PTZ control, pos,fuel sensor, led advertisement;Support 1CH CAN,OBD;


Item
                                                             Parameter
OS
Linux
Language
English/Chinese/Customized
Video Compression
H.264 Compression
OSD
Overlays information such as date time and vehicle ID
GUI
Graphical User Interface
Setup system parameters with the remote control.







Video Record System
Video Input
4CH 720P AHD input/SD input/mixed input,aviation connector, 1.0Vp-p, 75Ω
Video Onput
2CH CVBS+ VGA output for optional, 1.0Vp-p,75Ω,
Aviation,Support 1CH Full Screen,4CH Screen view
Resolution
720P/D1/HD1/CIF, MAX:4 channels 720P ;
 4 channels D1
Image Quality
0-7 levels, 0 is the highest level.
Preview
Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview




Video Standard
PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1: 800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional
Record Mode
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
Audio
Audio Input
4CH Aviation Plug Input
Audio Output
2CH,headphone connect at front panel, BNC Connect on Back panel
Compression
G.726 compression, 8KB/s speed
Alarm Input
7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alam output
2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off

                         Interface
3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
2CH 485 Interface,Connect PTZ Camera
2CH CAN interface
Wireless Transmission
Built in 4G module optional, TDD-LTE, FDD-LTE
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE；
GPS Position
Support Built GPS/BD Module
Storage
HDD
Max 2.5” 2TB HDD
SD Card
Max 128GB SD Card Mirror Recording Keep Data Safety
Update
Support USB Updating, SD Card Updating,OTA Remote Updating
File Format
H.264
File System
Special FAT32 File System
USB
USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay
Video Search
Search By Record Time/Record Type etc

Playback
Max support 4CH Replay /Stop/Fast/Slow at same timeSupport forward and backward play at the speed of:
x 2,x4,x8,x16.
Security
User/Admin 2 Level Different Password

Optional Functions
Voice Call
Support voice call each other
Serial Expand
Support LED Advertisement Panel、Oil Sensor、POS、Bus Station Broadcaster、 Car OBD,ect.external device



Voltage & Power
Power Management
Wide Voltage.Support Timed/Delay off
Input Voltage
DC:+6V - +36V
Output Voltage
+12V 1.5A，+5V 1.5A
Power
Working ＜5W
Temperature
-20℃ - +70℃
Working Environment
Humidity
20% - 80%
Size
200 （D）* 187（W）* 62（H） mm
Ohters
Weight
1.90 Kg
Products Show
Our Service
SATISFACTON

Powerful R&D team
Industry experience for Several years
Complete product range
Excellent quality and competitive price

24 hours service

Support all vehicles

We can offer customer whole service from mdvr setup,camera setup,PC/phone monitoring,CCTV display etc.

Excellent service

Professional sales service and after-sale service
High efficiency to meet your requirements
Customized service(ODM and OEM are welcome)

FOR POLICE CAR

Our Certifications

We are professional OEM Mobile DVR and NVR produtor and company.

There are more certifications in our company.Such as RoHs,FCC,CE etc.


Packing & Delivery

Packing Details  : 1pc/box,1box/carton,by standard box and carton,packing method can be as your request.

Delivery Details : We can delivery goods by air,by sea,by truck,etc.5-15days after deposit and order details confirmed.
