Grating Ruler and Digital Readout System
US$ 10 - 30
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HOERSUN
Model Number:
ktc
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Price List of Electronic Sensor/electronic Scale SensorUS$ 10 - 30MOQ: 1 Set -
Lamp With Sensor Motion/position Sensor/distance SensorUS$ 10 - 30MOQ: 1 Set
-
Throttle Position Sensor Bosch/bosch Crankshaft Position SensorUS$ 10 - 30MOQ: 1 Set
-
Hot High Quality 200mm Grating Linear Displacement TransducerUS$ 10 - 30MOQ: 1 Set
-
Sop Digital Potentiometer Rope Linear Displacement SensorUS$ 10 - 30MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
HOERSUN
Model Number
ktc
Usage
Position Sensor
Theory
Resistance Sensor
Output
Switching Transducer
grating ruler and Digital readout system

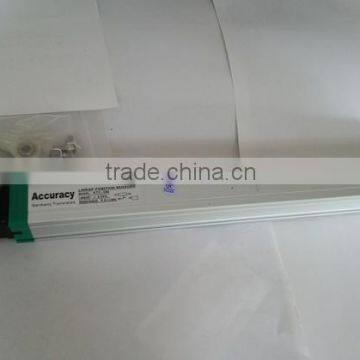

Discription of the linear position transducer
Place of Origin: Guangdong China (Mainland)
Brand Name: Hoersun
Model Number: KTM
Type: Rotary Potentiometer
Technology: Metal Foil
Resistance: 5K
Resistance Tolerance: 0.05%
Max. Operating Voltage: 24V
color: glivery
temperature: heat-resisted
speed: fast
Resistance:5 or 10 Kohms
Load resistance:mini 1 Mohms
Electrical measuring stock:75-1250mm
Mechanical specifications
Rod Material:S.S.-316
Rod dia:6mm
Case:paper tube
Protection:IP-67
Mechanical stroke:75 to 1250 mm
performance :Linearity :0.5% to 1%
Mechanical Life:10,000,000 cycle
Repeatability:0.05 %
Displacement speed:2m/s
Working temp:-20 to 80 degC
Main Specifications
| Pow supply | 18-30V DC,Current Drain:<50mA |
| Operation temperature | -40°C-75°C |
| Range: | From 0-25mm to 0-5000mm |
| Output |
Analogue 4-20mA,0-5V,0-10V Start/Stop:RS485 Digital:Synchronous Series Interface(SSI) |
| Non-Linearity | <±0.05%FS |
| Repeatability | <±0.002%FS |
| Resolution | <±0.002%FS |
| Stroke Range: | 50mm-7000mm |
| Output Pulse | ≤20mV |
| Isolation | 500VDC (Power or output signal to housing) |
| Mechanical Zone |
Null Zone:50.8mm Dead zone:63.5mm (Special Zone Please Contact Factory) |
| Rod Material | 304 or 316L Stainless Steel |
| Head Material | Casted aluminum or 316L Stainless Steel |
| Electronic Connection | 4 wire shield cable or Connector |
| Mounting | M18*1.5mm,M12*1.5mm,or Custom |
| Protecting Rate | Protection Rate:IP65 (or IP67) |
- Hydroelectric industry: Turbine and Gear in Hydro-electric power and Wind-power Generator;Throttle Valve Position
- Printing and Packing Industry;Paper Machine
- Woods Harvesting and Construction: Log Optimizer Positioning; Tile Compressing; Marble Cutting
- Port machinery; Container Handling
- Hydraulic Fluid Level Measurement, Wave Pool Level Measurement
- Fluid Power: Leveling Jacks; Valve Position
- Plastic and Rubber Part Manufacturing: Extrusion Rate; Tire Presses
- Tools; Woodworking, Metalworking and Assembly: Drill Press Stroke; Paint Sprayers
-
Model Price
EXW USDKFT-75MM 21.39 KFT-100MM 23.23 KFT-125MM 25.99 KFT-150MM 26.91 KFT-175MM 29.67 KFT-200MM 30.62 KFT-225MM 33.41 KFT-250MM 36.17 KFT-275MM 37.11 KFT-300MM 38.02 KFT-325MM 38.97 KFT-350MM 40.83 KFT-375MM 43.59 KFT-400MM 44.51 KFT-425MM 46.57 KFT-450MM 48.25 KFT-475MM 50.08 KFT-500MM 51.58 KFT-550MM 53.41 KFT-600MM 54.12 KFT-650MM 56.78 KFT-700MM 62.1 KFT-750MM 65.65 KFT-800MM 69.19 KFT-850MM 73.65 KFT-900MM 75.41 KFT-950MM 79.84 KFT-1000MM 85.17 KFT-1150MM 92.27 KFT-1250MM 96.7
