Specifications
Aluminum composite panel cutting machine1.Window&Door cutting
2.Professional Manufacturer
3.CE&ISO9001
4.High precision
Aluminum composite panel cutting machine
Production Description

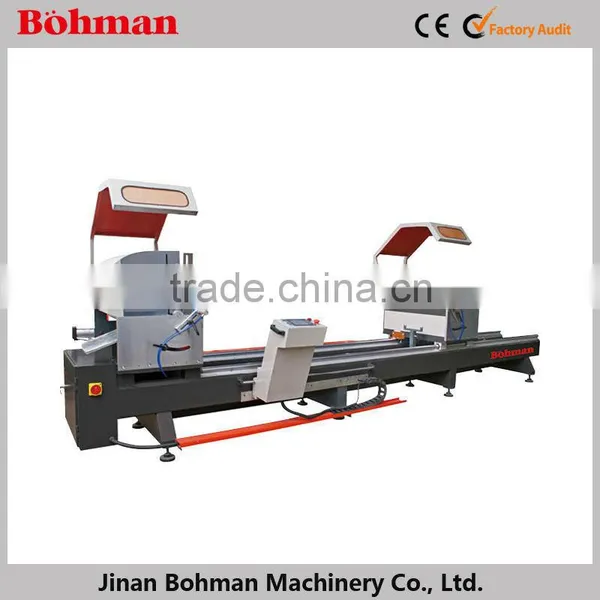

Production Name: Aluminum CNC Precision Double Mitre Saw
Features:
♦ Imported carbides blade is of accurate processing and high endurance.
♦ Saw blade rotates smoothly due to high accurate main spindle.
♦ Uniform speed feeding and smooth motion is due to air hydraulic damping
cylinder.
♦ The feeding system adopts the imported linear guide pair,with high accuracy
and stability.
♦ Two saw heads are adjustable and cut the profiles in 67.5º,45º,90º.
♦ Auto-opening shield maked the operation safety.
♦ Right heads feeding adopts pitch ball screw-lead motion,with high accurate
Driving,locating and smooth working.
Technical Parameters:
Power supply |
380V 50Hz |
Power |
2x2.2Kw |
Operation air pressure |
0.5-0.8Mpa |
Air consumption |
30L/min |
Motor speed |
2800r/min |
Blade specification |
Φ500xφ30mm |
Cutting angle |
90º~-67.5º~45º |
Cutting widthxheight |
135mmx200mm |
Cutting length |
435-4200mm |
Overall dimension |
5700x1650x1950mm |
weight |
2100kgs |
Details Show
Packing Details
♦ Plastic Film Package & Wooden Package:
Each product will be carefully packed with plastic film package,to make sure it will be arrived safety.
If choose wooden package,After inspection the goods are packed in plastic film package and then carefully packed in wooden cartons.
About Us
Factory&Office
Bohman--China's top manufacturer and supplier of Insulating Glass Processing Machines,Aluminum&UPVC Window and Door Processing Machines , CNC Router, Laser Engraving Cutting Machine, with an annual sales of USD2,000, 000.
Bohman--Always trying to develop new types of Insulating Glass Processing Equipments, Aluminum &UPVC Window and Door Processing Equipments,CNC Router, Laser Engraving Cutting Machine.
♦ Well-educated and experienced international sales.
♦ Professional engineers in our R&D deparment.
♦ CE Certification and BV Certification.
Some Spare Parts
Payment Terms
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union
Warranty Terms
All equipments is 12 months guarantee,lifetime maintance.
After Sale Service
Generally speaking,our Insulating Glass Processing Equipments need to install by our professional technician,Aluminum&UPVC Windows and Doors Processing Equipments is no need.
If buyers need to install by our technician,the installation clause as follows:
INSTALLATION CHARGE: USD40/day for one worker for installation and training.Buyer supply hotel,food,ticket.Our technical worker need about 3-10 days for installation till all machines is good.When our worker finished all installation,buyer have to pay for installation charger to our worker according to $40 per day.Then our worker will teach your worker how to operate all machines correctly.
