Reflective heat transfer film for garment or bags

Reflective heat transfer film for garment or bags Product description:

Appearance: silver gray ,clear ,white
 The brightness (back reflection coefficient) : > = 450-500 CD/(lx. M2)
 Base material: PET film
  Open volume long: 100 m/roll (width is 33 cm, 50 cm or various width) note: free cutting
  Product application: widely used in clothing on a variety of labels, and all kinds of color printing design.

Reflective printing film printing, transfer printing process:
1. The network version: render choose mesh screen for 150-200 purpose, the smaller font, mesh number to more.Hot melt adhesive to choose 80-120 mesh screen.

2. The machine printing must render pulp add 783 slow drying agent, Suggestions for half a day in advance to join stir placed, such as adding 3% to 3% when using curing agent.

3. Transparent reflective silver printing printing film: jump three silver base slurry, every print in 60 degrees oven bake for 10 minutes.Then three hot melt adhesive, the first two into 60 degrees oven for 10 minutes, the last time 70 degrees bake 30 minutes.

4. Color: transparent reflective membrane seal to print two color, printing again white, then three times of hot melt adhesive.(due to the lack of strong reflector transparent reflective membrane, so require color to have the very strong cover).

5. Silver reflective printing film: jump in two transparent render pulp, printing 1 silver pulp, render every print in 60 degrees oven bake for 10 minutes.Then three hot melt adhesive, the first two into the oven to bake for 10 minutes and 60 degrees 70 degrees bake 30 minutes for the last time.

6. Transfer printing: pyrograph machine pressure 4 kg, please ensure that the table level and pyrograph plate temperature and the temperature is consistent, at the same time, need to check whether pyrograph plate temperature uniformity.Transfer printing temperature and time according to the hot melt adhesive on the melting point and cloth, usually adopt 150 ℃, 15 seconds.

7. Tear film: heat transfer, reflective film to be cold to tear PET film.Hand holding up cloth, parallel to tear film at 180 degrees.

 8. Golden onion membrane: transfer good need hot tear.

9. Our reflective film did a lot of effort in the viscose fabric problem, common cloth kind of 20 kinds of cloth (tried) will not be sticky cloth after hot pressing and indentation.

10. Reflective printing film preservation: moisture-proof, shady and cool place, prevent sun point-blank, pile top number less than 5 layer, save three years there will be no yellowing and poor heat transfer phenomenon.

Product Show:

Carton and wrap film. Specifications according to customer requirements.

Qi Rui Screen Printing, founded in 2006, is a Chinese manufacturing and distribution company specialized in the production and development of high-quality screen printing equipment. It is located in the world famous industrial center- Dong Guan City, with 9 years in PET membrane field.

Our main products are as follows: PET release membrane, matt finish release film, polished finish release film, pyrography film, thermal transfer printing film, color printing film, offset printing film, water based film, oil based film etc.

Now release membrane is widely used in the fields of packing, printing, silk screen printing, transfer printing, nameplate, membrane switch, flexible PCB, insulation product, PCB, laser anti-forgery, covering membrane, electronics, sealing material membrane, reflection material, water proof material, sanitary paper, adhesive product, die-cutting, stamping processing and etc.”

We expect to cooperate with friends all over the world and create a better future together!

Factroy Show:

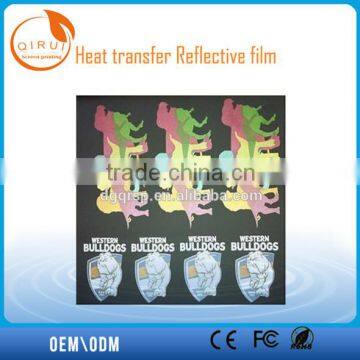

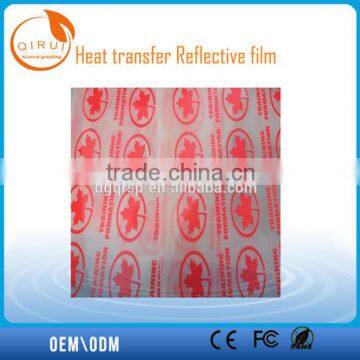

 Printing Effect Show:
