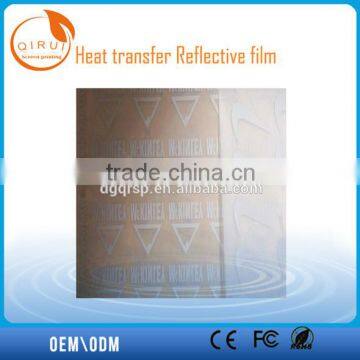

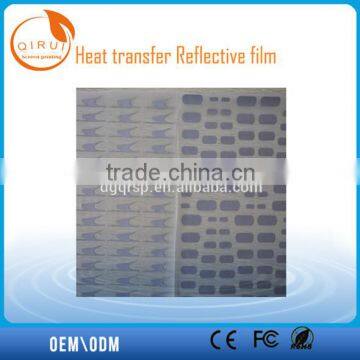

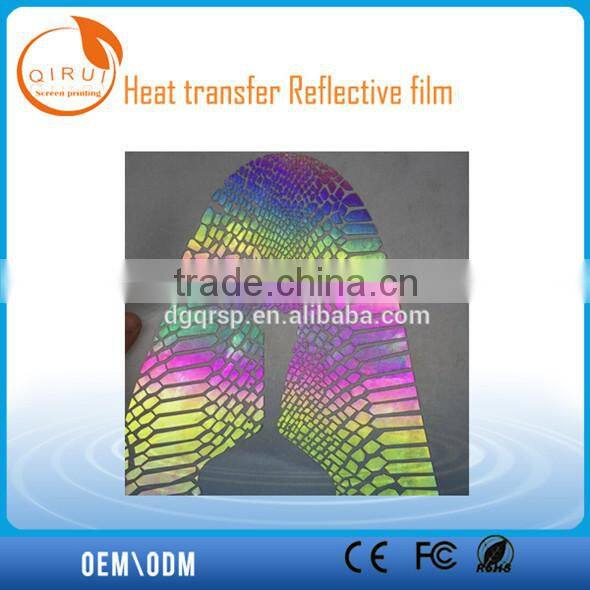

High quality colorful reflective transfer film

High quality colorful reflective transfer film, It is widely used in clothing on a variety of labels, and all kinds of color printing design.

Reflective printing film printing, transfer printing process:

1. The network version: render choose mesh screen for 150-200 purpose, the smaller font, mesh number to more.Hot melt adhesive to choose 80-120 mesh screen.

2. The machine printing must render pulp add 783 slow drying agent, Suggestions for half a day in advance to join stir placed, such as adding 3% to 3% when using curing agent.

3. Transparent reflective silver printing printing film: jump three silver base slurry, every print in 60 degrees oven bake for 10 minutes.

Then three hot melt adhesive, the first two into 60 degrees oven for 10 minutes, the last time 70 degrees bake 30 minutes.

4. Color: transparent reflective membrane seal to print two color, printing again white, then three times of hot melt adhesive.

(due to the lack of strong reflector transparent reflective membrane, so require color to have the very strong cover).

5. Silver reflective printing film: jump in two transparent render pulp, printing 1 silver pulp, render every print in 60 degrees oven bake for 10 minutes.Then three hot melt adhesive, the first two into the oven to bake for 10 minutes and 60 degrees 70 degrees bake 30 minutes for the last time.

6. Transfer printing: pyrograph machine pressure 4 kg, please ensure that the table level and pyrograph plate temperature and the temperature is consistent, at the same time, need to check whether pyrograph plate temperature uniformity.

Transfer printing temperature and time according to the hot melt adhesive on the melting point and cloth, usually adopt 150 ℃, 15 seconds.

7. Tear film: heat transfer, reflective film to be cold to tear PET film.Hand holding up cloth, parallel to tear film at 180 degrees.

Application:

Carton and wrap film. Specifications according to customer requirements.

Qi Rui Screen Printing, founded in 2006, is a Chinese manufacturing and distribution company specialized in the production and development of high-quality screen printing equipment. It is located in the world famous industrial center- Dong Guan City, with 9 years in PET membrane field.

Company main products are as follows: single side PET release membrane, double side PET release membrane, cold tear matt finish release film, hot tear mat gloss release film, single side polished finish release film, double side polished finish release film, pyrography film, thermal transfer printing film, color printing film, offset printing film, water based film, oil based film, dull polish film, color box window film etc.

Now release membrane is widely used in the fields of packing, printing, silk screen printing, transfer printing, nameplate,membrane switch, flexible PCB, insulation product,PCB,laser anti-forgery, covering membrane, electronics, sealing material membrane, reflection material, water proof material, sanitary paper, adhesive product, die-cutting, stamping processing and etc.

With well-equipped facility, strong production capacity and stable product quality, our mission is ‘To be a leader throughout the world in screen printing equipment manufacturing, while offering innovative high-quality products and definitely honesty to meet our customer’s requirements’.

We expect to cooperate with friends all over the world and create a better future together!
