Beveled Glass Machine

Beveled Glass Machine thumbnail-1
Beveled Glass Machine photo-1
US$ 45,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Glass Cutting Machine
Production Capacity:
120m/min
Contact Supplier Request Quote Chat Now
Jinan Bohman Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qigdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Glass Cutting Machine
Production Capacity 120m/min
Place of Origin Shandong, China
Brand Name Bohman
Model Number BM-CNC-2620
Voltage 380V 50HZ
Power(W) 12KW
Dimension(L*W*H) 14000*3500*850mm
Weight 1500kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Beveled glass machine
1.Use for glass cutting
2.CNC control
3.iso9001/ce
4.high precision

Beveled glass machine

Production Description

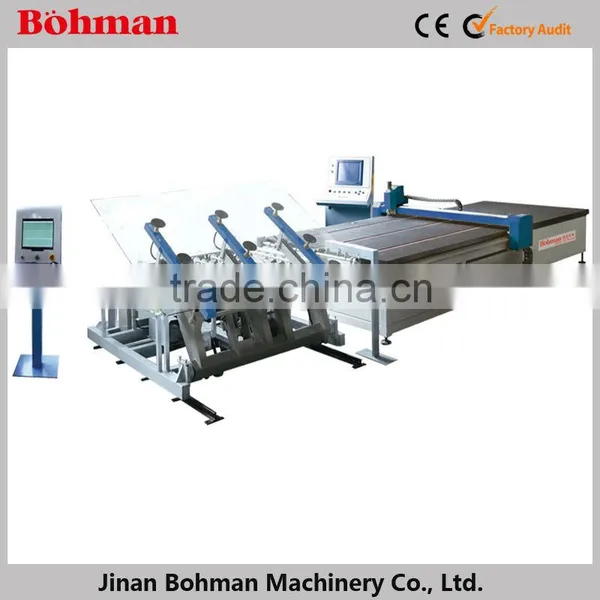

     Production Name: Automatic Glass Cutting Process Machine



     Features:

       ♦ Work flow: After starting the inputting machine, arms automatically suck glass

     from the shelf. Under sensor controlled, glass automatically find glass edge in the X

     and Y directions. After moving glass sheets to designated location, transport glass to

     the CNC cutting table. Under laser sensory element guidance, use laser-reader to

     get the position of the glass-sheet. Cutter will move to coordinate origin, and

     automatically start to cut according to the preinstall graph.

       ♦ After cutting, glass will move to the breaking table. Start break bars and to break

     the glass. At this point, the whole process work is completed.



     Technical Parameters:

Model

BM-CNC-2620

BM-CNC-3725

BM-CNC-5033

BM-CNC-6033

Glass Thickness

3.0-25 mm

3.0-25 mm

3.0-25 mm

3.0-25 mm

Glass Sheet Size

2440*1830 mm

3660*2440 mm

5000*3300 mm

6000*3300 mm

Max. Speed

120 m/min

120 m/min

120 m/min

120 m/min

Cutting Accuracy

+/- 0.2 mm / 2 m

+/- 0.2 /2 m

+/- 0.2 /2 m

+/- 0.2 /2 m

Sheet Weight

500 kg

500 kg

800 kg

1000 kg

Outside Dimension

14000*3500*850 mm

14500*3800*850 mm

17500*4000*850 mm

19500*4000*850 mm



Details Show

 Beveled glass machine

Full automatic cnc glass cutting machine

Packing Details



♦ Plastic Film Package & Wooden Package:

Beveled glass machine



Each product will be carefully packed with plastic film package,to make sure it will be arrived safety.



If choose wooden package,After inspection the goods are packed in plastic film package and then

carefully packed in wooden cartons.







About Us







Factory&Office



 Beveled glass machine



BOHMAN--China's top manufacturer and supplier of Insulating Glass Processing Machines,Aluminum&UPVC

Window and Door Processing Machines,CNC Router, Laser Engraving Cutting Machine, with an

annual sales of USD2,000, 000.

BOHMAN--Always trying to develop new types of Insulating Glass Processing Equipments,Aluminum&UPVC

Window and Door Processing Equipments, CNC Router, Laser Engraving Cutting Machine.

♦  Well-educated and experienced international sales.

♦  Professional engineers in our R&D department.

♦  CE Certification and BV Certification.



Some Spare Parts

 Beveled glass machine

Payment Terms



♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union



Warranty Terms



 All equipments is 12 months guarantee,lifetime maintance.



After Sale Service



Generally speaking,our Insulating Glass Processing Equipments need to install by our professional

technician,Aluminum&UPVC Windows and Doors Processing Equipments is no need.

If buyers need to install by our technician,the installation clause as follows:

INSTALLATION CHARGE: USD40/day for one worker for installation and training.Buyer supply hotel,

food,ticket.Our technical worker need about 3-10 days for installation till all machines is good.When our worker finished all installation,buyer have to

pay for installation charger to our worker according to $40 per day.Then our worker will teach your

worker how to operate all machines correctly.



Loading

 Beveled glass machine

Exhibition

 Beveled glass machine

Our Customers&Our Friends

 Beveled glass machine

Full automatic cnc glass cutting machine
