Specifications
1.Italian Optimization CNC Glass Cutting Machine2.sensor controlled
3.CNC
4.CE
5.OEM

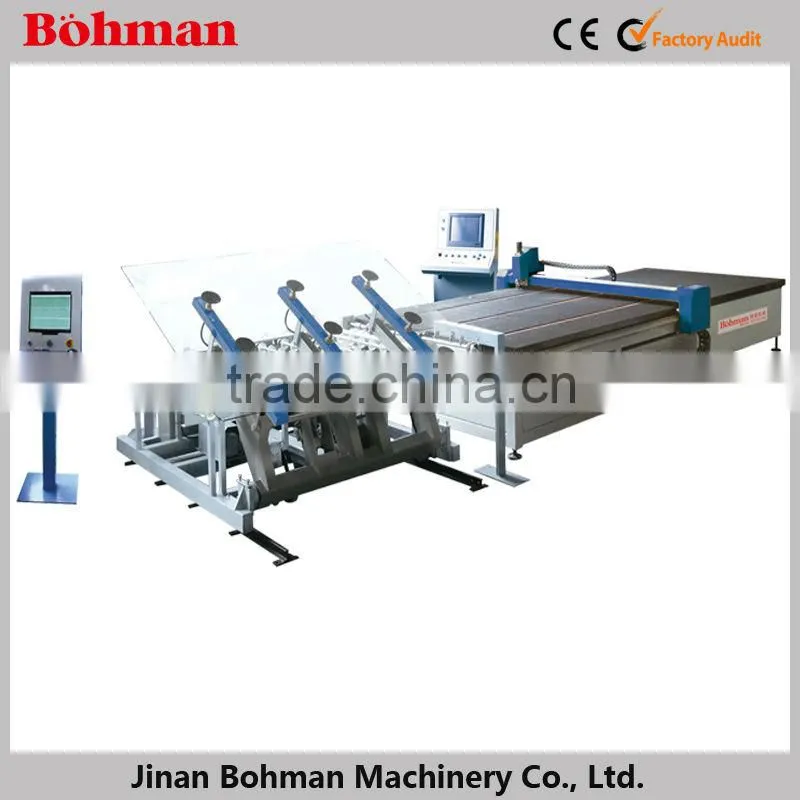

Italian Optimization CNC Glass Cutting Machine
Production Description
Production Name: Italian Optimization CNC Glass Cutting Machine
Features:
♦ Work flow: After starting the inputting machine, arms automatically suck glass
from the shelf. Under sensor controlled, glass automatically find glass edge in the X
and Y directions. After moving glass sheets to designated location, transport glass to
the CNC cutting table. Under laser sensory element guidance, use laser-reader to
get the position of the glass-sheet. Cutter will move to coordinate origin, and
automatically start to cut according to the preinstall graph.
♦ After cutting, glass will move to the breaking table. Start break bars and to break
the glass. At this point, the whole process work is completed.
Technical Parameters:
Model |
BM-CNC-2620 |
BM-CNC-3725 |
BM-CNC-5033 |
BM-CNC-6033 |
Glass Thickness |
3.0-25 mm |
3.0-25 mm |
3.0-25 mm |
3.0-25 mm |
Glass Sheet Size |
2440*1830 mm |
3660*2440 mm |
5000*3300 mm |
6000*3300 mm |
Max. Speed |
120 m/min |
120 m/min |
120 m/min |
120 m/min |
Cutting Accuracy |
+/- 0.2 mm / 2 m |
+/- 0.2 /2 m |
+/- 0.2 /2 m |
+/- 0.2 /2 m |
Sheet Weight |
500 kg |
500 kg |
800 kg |
1000 kg |
Outside Dimension |
14000*3500*850 mm |
14500*3800*850 mm |
17500*4000*850 mm |
19500*4000*850 mm |

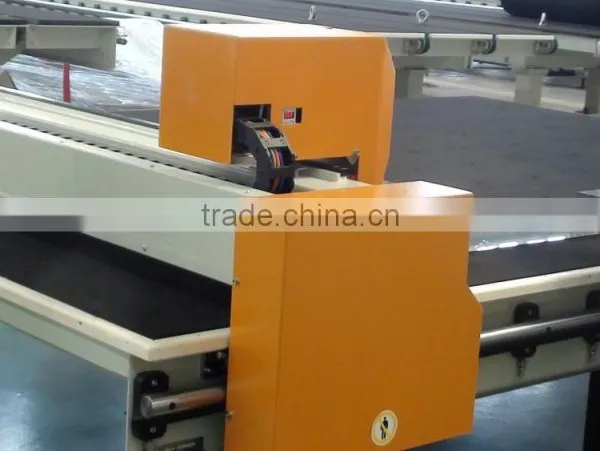

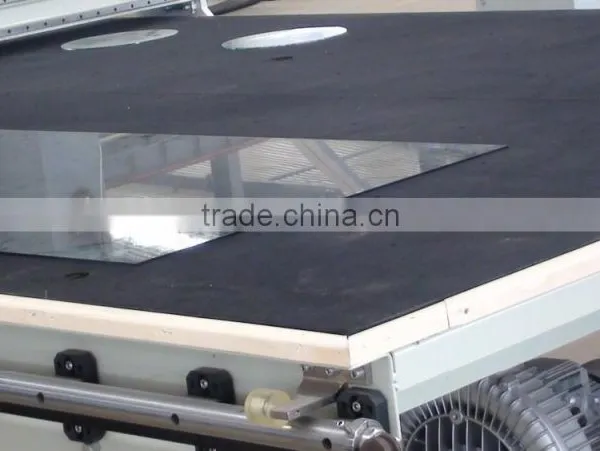

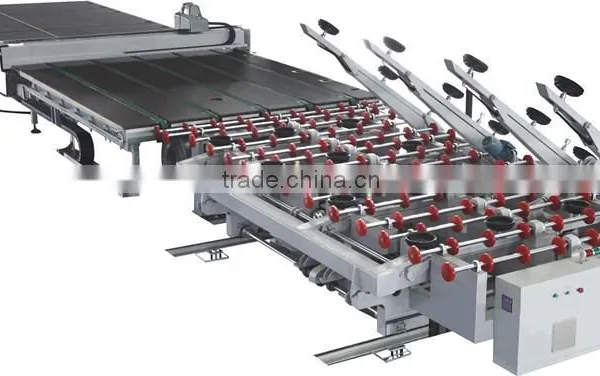

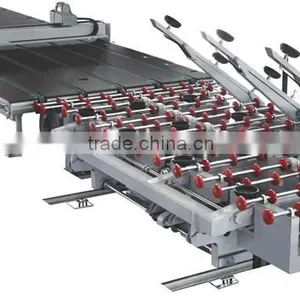

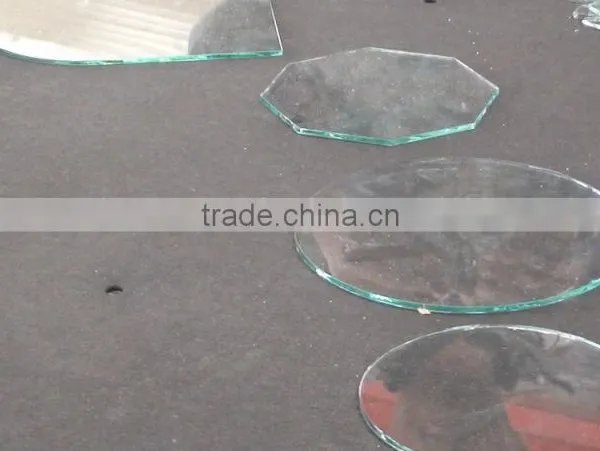

Italian Optimization CNC Glass Cutting Machine Details Show
Italian Optimization CNC Glass Cutting Machine
