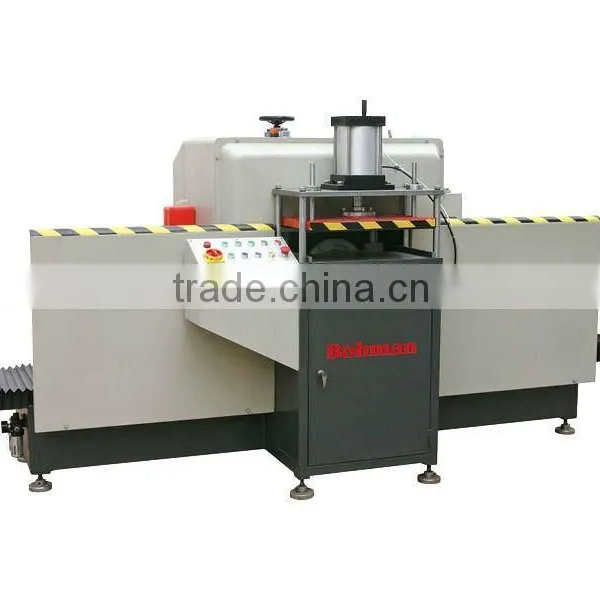

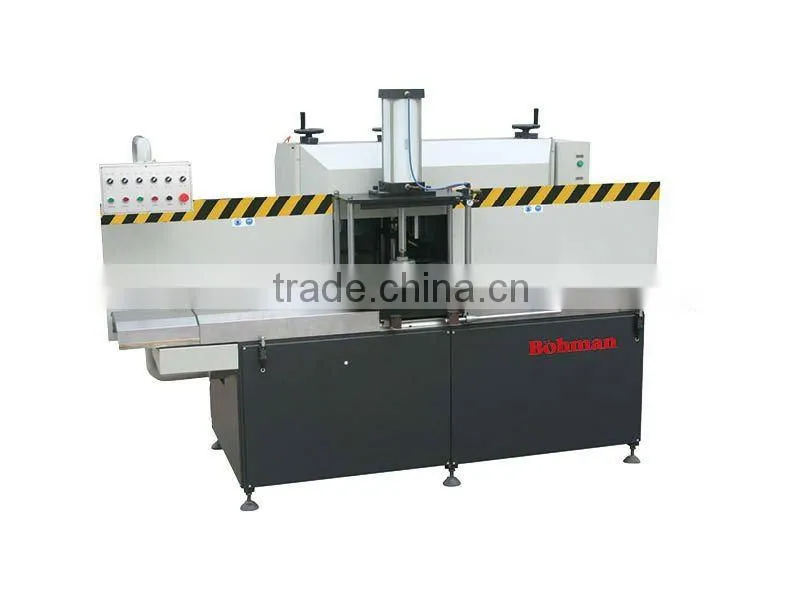

LXSJ6-250 Aluminium Curtain-wall Profile Tenon Milling Machine
US$ 1,000 - 5,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Bohman
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Cnc Milling MachineUS$ 2,500 - 7,000MOQ: 1 Set -
Double Axis Copie Router for Aluminum Win-doors / Copy Router Machine for Aluminum ProfileUS$ 1,000 - 3,600MOQ: 1 Set
-
Aluminium Double Miter Cutting Machine / 45 Degree Cutting MachinesUS$ 7,500 - 10,000MOQ: 1 Set
-
SX01-100 Copy-routing Milling Machine for Aluminum Win-doorUS$ 980 - 1,500MOQ: 1 Set
-
SX01-100 Copy Router Machine for Aluminum Win-doorUS$ 980 - 1,500MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Bohman
Model Number
LXSJ6-250
Type
Horizontal
CNC or Not
Normal
Specifications
Aluminium Curtain-wall Profile Tenon Milling Machine1. Six group combined cutters
2. Milling any angle between 180 degree
LXSJ6-250 Aluminium Curtain-wall Profile Tenon Milling Machine
Equipment Features
- Six combined cutters can assembly any size according to the users' requirements
- One time feeding can process the required mortise dimension of the profile surface
- Milling any angle between 180° is available
- Applicable to molding processing for end surface and level surface of a variety of profiles
- Feeding system adopts motor drag, adjustable speed, uniform cutting and feeding speed, accurate processing and high quality.
| Power Supply | 380V 50Hz |
| Cutting Motor Power | 13.2 kw Six Groups |
| Motor Rotary Speed | 2800 r/min |
| Feeding Motor | 0.37 kw |
| Operation Air Pressure | 0.5-0.8 mpa |
| Motor Main Shaft Diameter | Φ32 mm |
| Feeding Space of Workable | 1570 mm |
| Worktable Measurement | 480*480 mm |
| Adjustable Space of Cutter | Φ250 milling cutter 4 pieces 14″milling cutter 2 pieces |
| Quantity of Milling Cutters | horizontal 80mm vertical 280mm 6 pieces |
| Contour Dimension | 2070*1130*1820 mm |
| Weight | 1800 kg |
