Specifications
Windows and Doors metal corner cutting machine1.Cut the aluminum profiles
2.ISO9001&CE
3.Good services
Windows and Doors metal Corner connector machine
Production Description

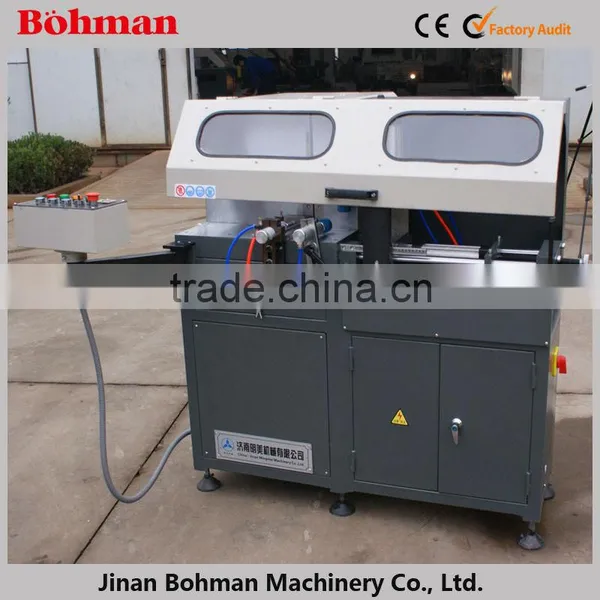

Production Name: Auto Aluminum Corner Connector Cutting Saw
Features:
♦ It has features of easy operation reliable performance advanced technique and
convenient maintenance.
♦ Used for cutting of the corner profiles for aluminum doors and windows.
♦ Adopting computer-controlled system, and with automation level.
♦ Imported carbide saw blade is of high cutting speed, accurate processing and
high efficiency.
♦ Linear bearing motion pair gave less resistance force and ensure high
processing accuracy.
♦ Adopting automatic feeding system for the feeding device, it is with features of
stability and reliability and high efficiency.
♦ Clamping and feeding process adopt pneumatic control, it is with features of
stability and reliability and high efficiency.
♦ Once clamping can achieve continues cutting of six-meter corner profile.
♦ Control system with automatic counting function.
♦ The cutting length numbers will be saved automatically when cutting off
Electricity.
♦ This machine have a long cylinder for working steady.
Technical Parameters:
Power Supply |
380V 50Hz |
Cutting Motor Power |
3kw |
Motor Rotary Speed |
2840r/min |
Operation Air Pressure |
0.5-0.8mpa |
Auto-feeding Length |
5-580mm |
Air Consumption |
80l/min |
Cutting Length |
no limit when selected manual mode |
Cutting Speed |
0-3m/min |
Blade Specification |
Ø500*Ø30*4.4 mm |
Blade W&H |
140*140mm |
Cutting Profile Surface Plane |
≤0.10mm |
Cutting Surface Verticality |
0.1mm |
Cutting Surface Roughness |
Ra12.5μm |
Outside Dimension |
5670*1770*1840mm |
Weight |
500kg |
Details Show
Packing Details
♦ Plastic Film Package & Wooden Package:
Each product will be carefully packed with plastic film package,to make sure it will be arrived safety.
If choose wooden package,After inspection the goods are packed in plastic film package and then carefully packed in wooden cartons.
About Us
Factory&Office
BOHMAN--China's top manufacturer and supplier of Insulating Glass Processing Machines,Aluminum&UPVC Window and Door Processing Machines,CNC Router, Laser Engraving Cutting Machine, with an annual sales of USD2,000, 000.
BOHMAN--Always trying to develop new types of Insulating Glass Processing Equipments,Aluminum&UPVC Window and Door Processing Equipments, CNC Router, Laser Engraving Cutting Machine.
♦ Well-educated and experienced international sales.
♦ Professional engineers in our R&D department.
♦ CE Certification and BV Certification.
Some Spare Parts
Payment Terms
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union
Warranty Terms
All equipments is 12 months guarantee,lifetime maintance.
After Sale Service
Generally speaking,our Insulating Glass Processing Equipments need to install by our professional technician,Aluminum&UPVC Windows and Doors Processing Equipments is no need.
If buyers need to install by our technician,the installation clause as follows:
INSTALLATION CHARGE: USD40/day for one worker for installation and training.Buyer supply hotel,food,ticket.Our technical worker need about 3-10 days for installation till all machines is good.When our worker finished all installation,buyer have to pay for installation charger to our worker according to $40 per day.Then our worker will teach your worker how to operate all machines correctly.
