Specifications
1.saw for cutting aluminum profiles2.double head cutting saw
3.OMRON PLC

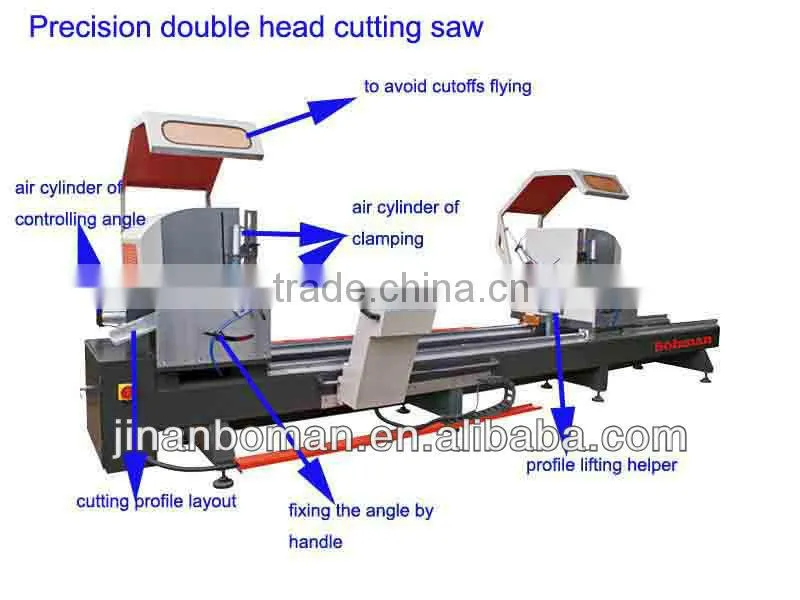

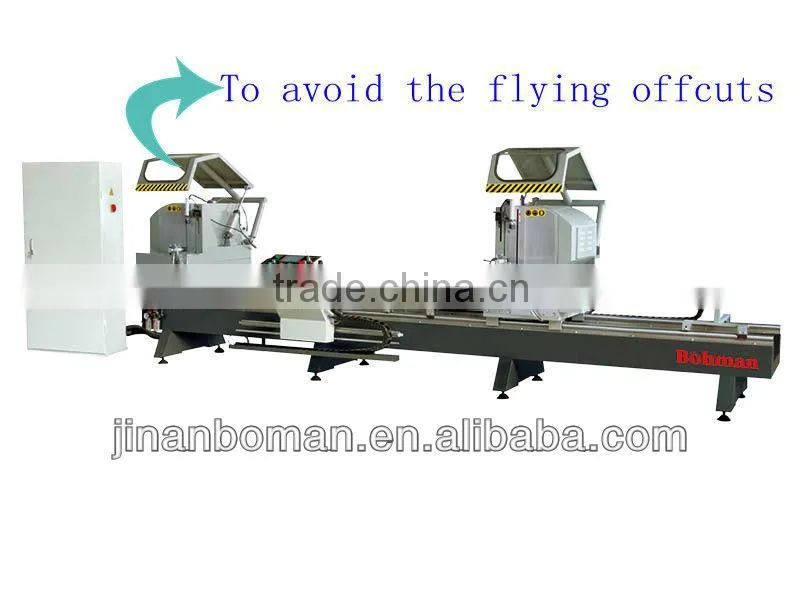

saw for cutting aluminum profiles of two head cutting saw
Equipment Features:
1. Imported computer control system with the automatic measuring function
2. Using ball bearing to keep the high precision
3. Adopt the size compensation function and it can achieve high repeated location precision
Main specification and technical parameter
Power supply |
380V 50Hz |
Saw head power |
2 x 1.5 Kw 2800r/min |
Operation air pressure |
0.5-0.8Mpa |
Input power |
380v 50Hz |
power |
3.55kw |
Motor power |
2x1.5kw |
Motor rotay speed |
2840r/min |
Saw rotay speed |
3155r/min |
Cutting speed stepless speed regulation |
0-3m/min |
Blade specification(mm) |
Φ350xΦ3.0x30mm |
Max Cutting width |
200mm |
Max Cutting deepth |
120mm |
Cutting length |
400~3700mm |
Contour dimension |
4600mm*1300mm*1550mm |
Weight |
1300kgs |
