Specifications
Sheet metal shearing machine QC12Y1.Frame welded structure
2.Vibration to eliminate stress
3.Hydraulic
Sheet metal shearing machine QC12Y

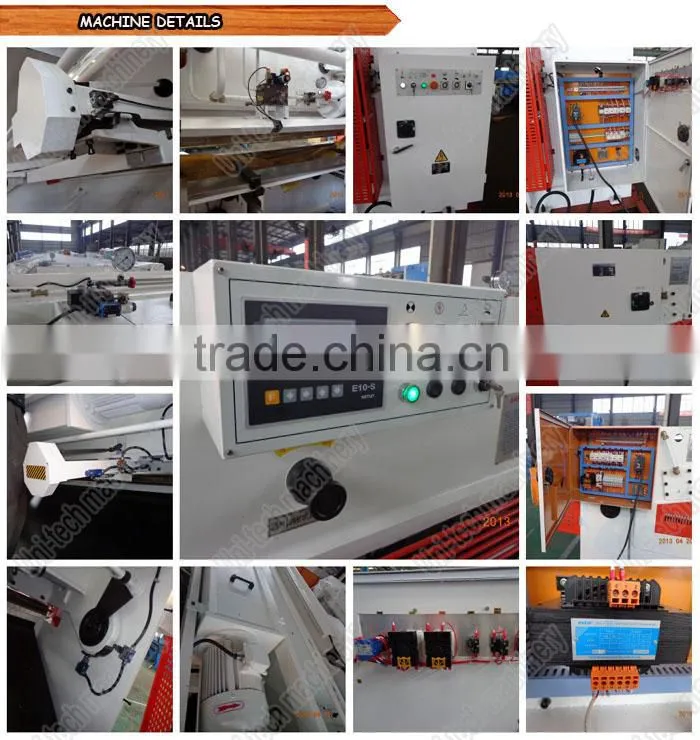

Sheet metal shearing machine C12Y Main features:

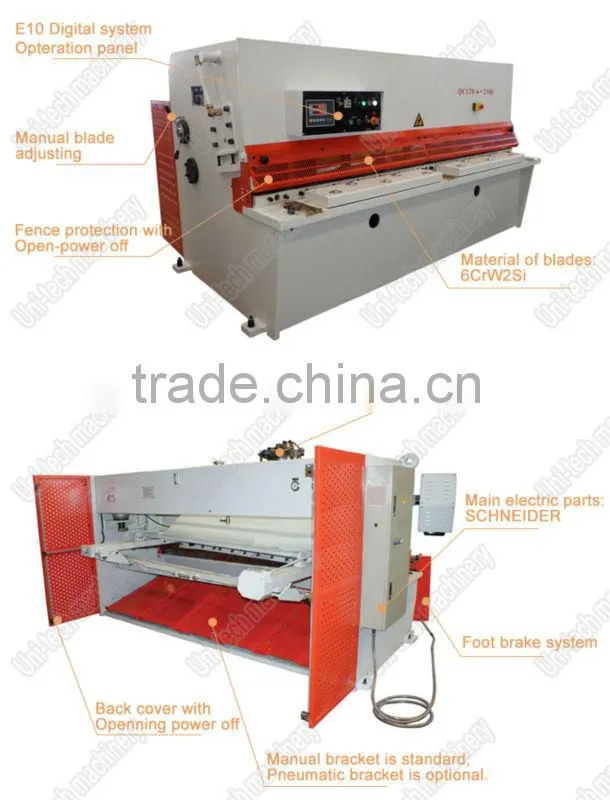

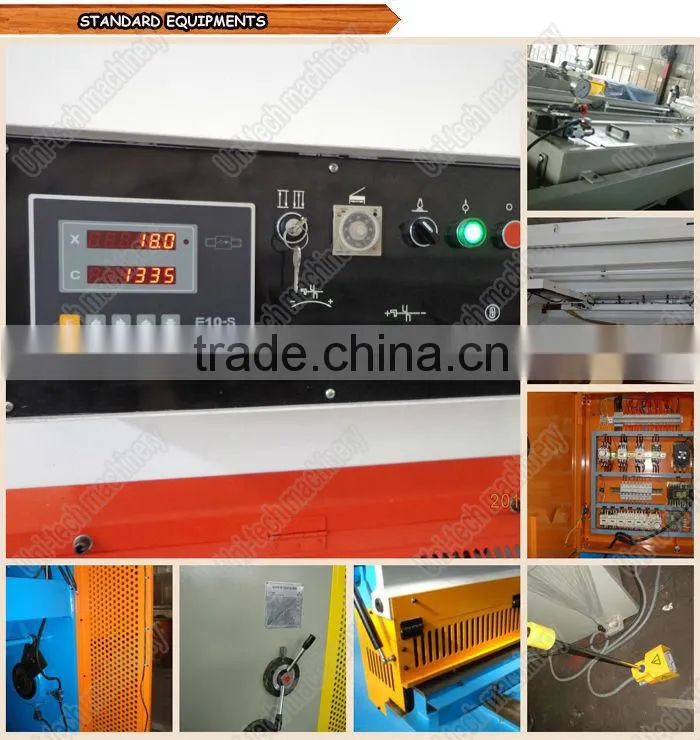

STANDARD CONFIGURATION OF HYDRAULIC SHEARING MACHINE EXPORT:
1. E10 ELECTRONIC DIGITAL:NANJING ESTUN CO.
2. MAIN ELECTRIC PARTS: GERMANY SIMENIS
3.LIMITED SWITCH,BUTTON:FRANCE SCHNEIDER
4. LOWER NOISE,GEAR-WHEEL PUMP:SHANGHAI CHENGJIE CO.
5. HYDRAULIC SYSTEM: OMG, USA
6.CASTING CONNECTOR:GERMANY JS CO.
7.MATERIAL OF BLADES:6CrW2Si
8.SEALING RINGS: JANPAN VALQUA CO.
9.ELECTRIC BOX:POWER OFF WHEN OPEN THE DOOR
10.STEEL PALLETS, TWO SOFT PACKAGES
Sheet metal shearing machine QC12Y Specifications:
Model | Shear size(TxW) (mm) | Shear angle | Noload strokes (times/min) | Adjustment range of backguage(mm) | Main motor power(kw) | Net weight (kg) | Dimensions (LxWxH) (mm) |
QC12Y-6x2500 | 6X2500 | 1°30′ | 18 | 20-600 | 7.5 | 6000 | 3040X1610X1620 |
QC12Y-6x3200 | 6X3200 | 1°30′ | 14 | 20-600 | 7.5 | 7200 | 3840X1610X1620 |
QC12Y-6x4000 | 6X4000 | 1°30′ | 10 | 20-600 | 7.5 | 10000 | 4640X1705X1700 |
QC12Y-6x5000 | 6X5000 | 1°30′ | 5 | 20-600 | 7.5 | 13000 | 5790X2155X1900 |
QC12Y-8x2500 | 8X2500 | 1°30′ | 14 | 20-600 | 11 | 6500 | 3140X1610X1620 |
QC12Y-8x3200 | 8X3200 | 1°30′ | 10 | 20-600 | 11 | 7800 | 3840X1610X1620 |
QC12Y-8x4000 | 8x4000 | 1°30′ | 8 | 20-600 | 11 | 11000 | 4680X1705X1700 |
QC12Y10x2500 | 10x2500 | 1°48′ | 10 | 20-600 | 15 | 7000 | 3350X2050X1950 |
QC12Y-10x3200 | 10x3200 | 1°48′ | 8 | 20-600 | 15 | 11000 | 4050X2050X1790 |
QC12Y-10x4000 | 10x4000 | 1°48′ | 8 | 20-600 | 18.5 | 14000 | 4920X2250X1790 |
QC12Y-12x2500 | 12x2500 | 1°48′ | 10 | 20-800 | 18.5 | 7800 | 3320X2050X1790 |
QC12Y-12x3200 | 12x3200 | 1°48′ | 8 | 20-800 | 18.5 | 12000 | 1020X2050X17900 |
QC12Y-12x4000 | 12x4000 | 1°48′ | 7 | 20-800 | 18.5 | 16000 | 4850X2400X2200 |
QC12Y-16x2500 | 16x2500 | 2° | 8 | 20-800 | 30 | 15000 | 3300X2300X2150 |
QC12Y-16x3200 | 16x3200 | 2° | 7 | 20-800 | 30 | 16000 | 4100X2300X2150 |
QC12Y-16x4000 | 16x4000 | 2° | 6 | 20-800 | 30 | 23000 | 4800X2300X2150 |
QC12Y-20x2500 | 20x2500 | 2° | 8 | 20-800 | 45 | 16000 | 3300X2300X2650 |
QC12Y-20x3200 | 20x3200 | 2° | 5 | 20-800 | 45 | 25000 | 4100X2350X2710 |
QC12Y-20x4000 | 20x4000 | 2°30′ | 4 | 20-800 | 45 | 30000 | 4850X2400X2200 |
CONTACT PERSON: ANNA WANG
SKYPE: annatech1
QQ:895433923
PHONE: 0086-15163279908
