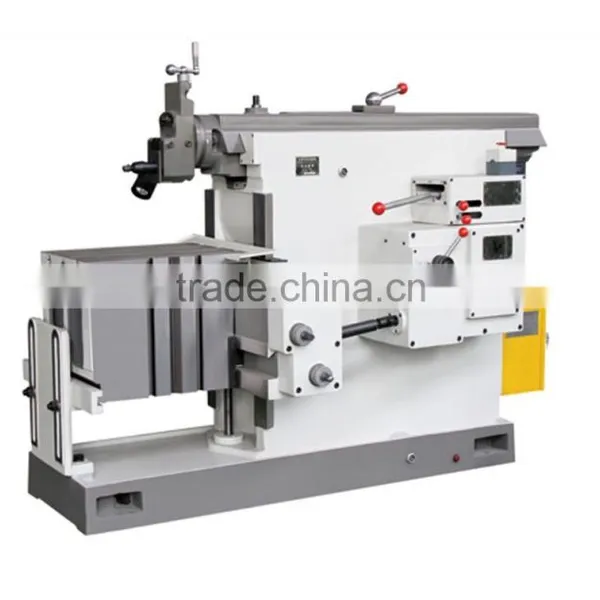

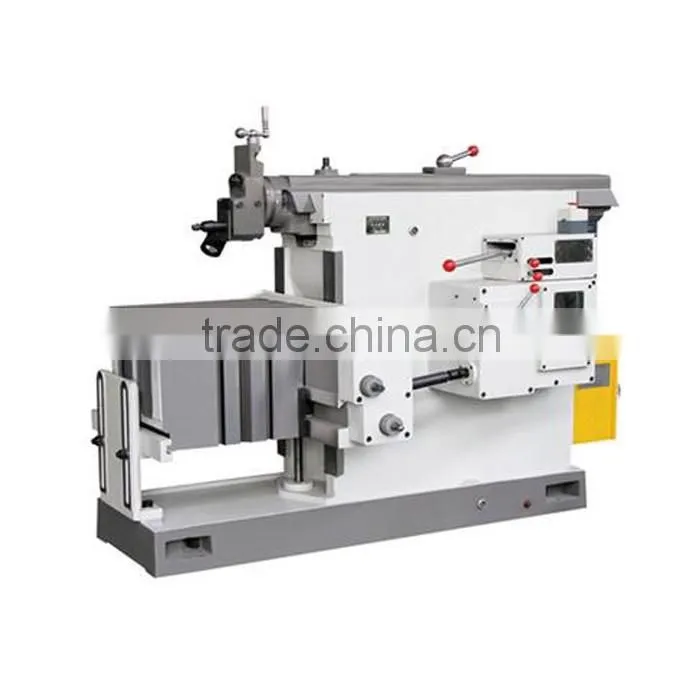

mechanical slot shaping machine B6050
Advantages:
1. Planner bench can rotate
2. Feed system use cam mechanism to adjust feed rate
3.With cutting system overload safety device
Specification:
| Specification | B635A | B6050 | B6063 | B6070 | B60100 |
| Max. cutting length | 350mm | 500mm | 630mm | 700mm | 1000mm |
| Max. horizontal travel of table | 400mm | 500mm | 630mm | 630mm | 800mm |
| Max. distance from ram bottom to table | 330mm | 370mm | 385mm | 420mm | 380mm |
| Max. table vertical travel | 270mm | 300mm | 360mm | 320mm | 320mm |
| Max. vertical travel of tool carrier | 110mm | 110mm | 120mm | 125mm | 160mm |
| Number of ram strokes per minute | 32,50,80,125 | 15,24,37,51,64, | 14,20,28, | 11,20,38, | 8,11,16,23, |
| 80,102,126,158 | 40,56,80 | 52,72 | 32,45,64,90 | ||
| MOTOR POWER | 1.5kw | 4kw | 3kw | 4kw | 7.5kw |
| Overall dimensions (LxWxH) mm | 1390x860x1455 | 1943x1173x1533 | 2265x1225x1480 | 2550x1400x1760 | 3507x1455x1761 |
Features
Shaper is mainly used for planning the plane on the small and medium-size workpieces in small batch production of a single piece, forming the surface and grooves . Its five characteristics:
1. Planner bench can turing angle of the table with horizontal and lift moving mechanism; for planning the inclined plane, thereby expanding the scope of use.
2. Planner feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.
3. Planer equipped with cutting system overload safety angencies. Once occur careless operation, external influences or cutting overload, it will shift to self-skid, and non-sestructive the machine.
4. Gap between the ran and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.
5. Planner is equipped with a clutch and parking brake device. So do not need to cut off the power when changing the speed, stard the machine or braking the machine.
Customized services
We accept customized services around the world
Afer-sale services
1.Technical support online service provided.
2.Technical files service provided.
3.Spare parts replacement and repair service provided.
4.Questions will be replied within 24 hours
