Manual Roll Forming Machine ESR-1550X3.5
- Qingdao/Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | UNI-TECH | Model Number | ESR-1300X4.5 | |
| Machine Type | Roll Forming Machine | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Other, Iron | Power | Other, Motor | |
| Automation | Manual | Extra Services | End Forming | |
| Certification | CE | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Manual roll forming machine ESR-1550X3.51.3 asymmetrical Rolls
2.With conical bending
3.Cam lock
4.CE,ISO9001
Manual roll forming machine ESR-1550X3.5

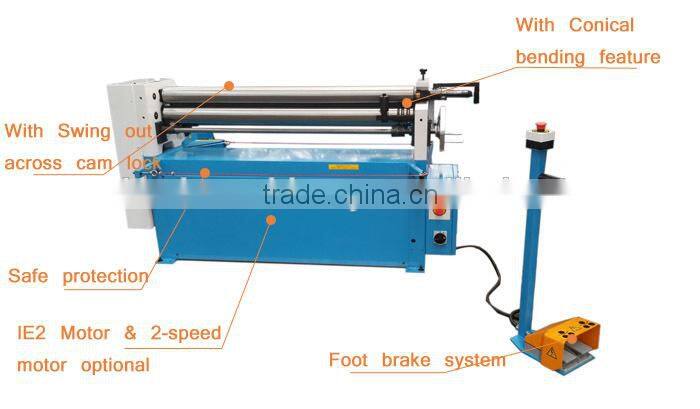

Manual roll forming machine ESR-1550X3.5 Main features:
1. Asymetrical roll bending machine with 3rolls
2. High strength steel rolls
3. Fixed top roller, adjustable lower and rear rollers
4. Worm gear and motor for prebending
5. Standard series wire core groove
6. Top roll swings out acr across cam lock
7. Supplied with conical bending featue
Manual roll forming machine ESR-1550X3.5 Specifications:
| Model | Max rolling thickness (mm) | Max rolling width (mm) | Dia.of roll(mm) | Motor power (kw) | Packing size(cm) | N.W./G.W.(kg) |
| ESR-1300X1.5 | 1.5 | 1300 | 75 | 0.75 | 0.75 | 280/340 |
| ESR-1020X2 | 2 | 1020 | 60 | 1.5 | 174X70X126 | 260/325 |
| ESR-1300X1.5E | 1.5 | 1300 | 60 | 1.5 | 190X55X110 | 270/340 |
| ESR-2.5X1300 | 2.5 | 1300 | 90 | 1.5 | 200X72X120 | 540/560 |
| ESR-4.5X1300 | 4.5 | 1300 | 120 | 2.2 | 200X76X127 | 750/830 |
| ESR-3.5X1550 | 3.5 | 1550 | 120 | 2.2 | 200X76X127 | 790/890 |
| ESR-3.5X2020 | 3.5 | 2020 | 127 | 4 | 270X87X130 | 1100/1200 |
| ESR-1300X6.5 | 6.5 | 1300 | 150 | 3 | 282X87X134 | 1100/1190 |
| ESR-2070X2.5 | 2.5 | 2070 | 120 | 2.2 | 282X87X130 | 1050/1200 |
| ESR-2070X3.5 | 3.5 | 2070 | 127 | 3 | 282X87X130 | 1110/1250 |

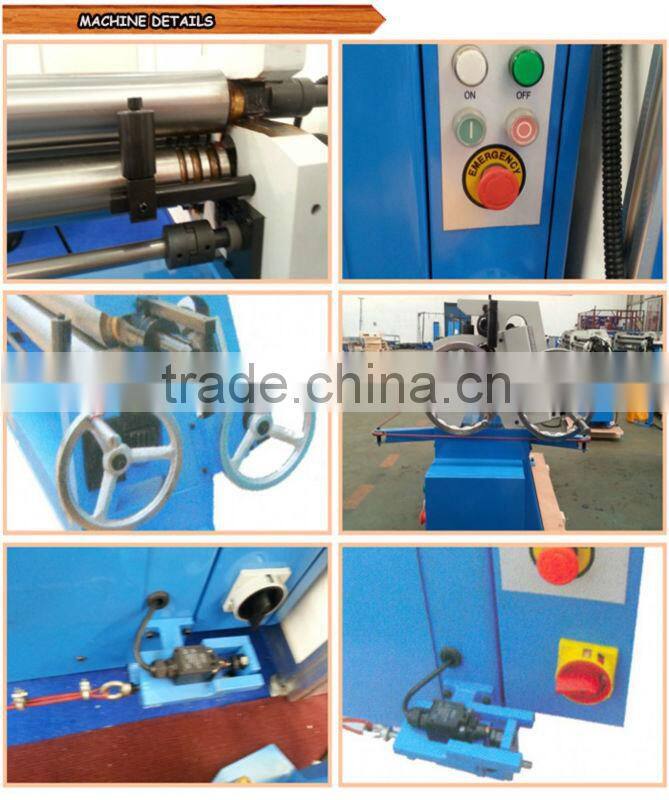

Manual roll forming machine ESR-1550X3.5 Machine details:

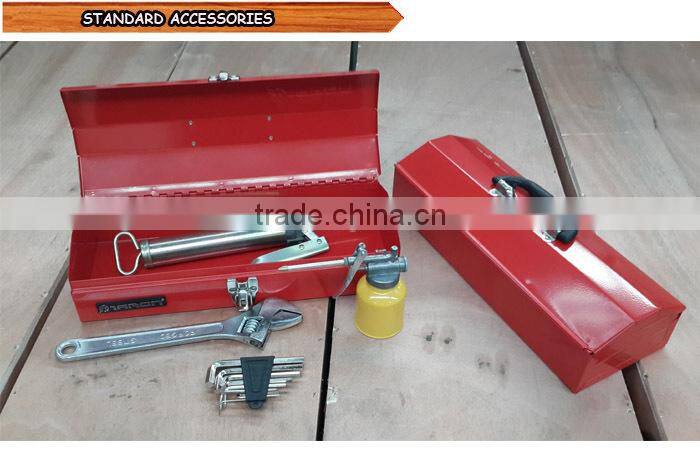

Manual roll forming machine ESR-1550X3.5 standard accessories:

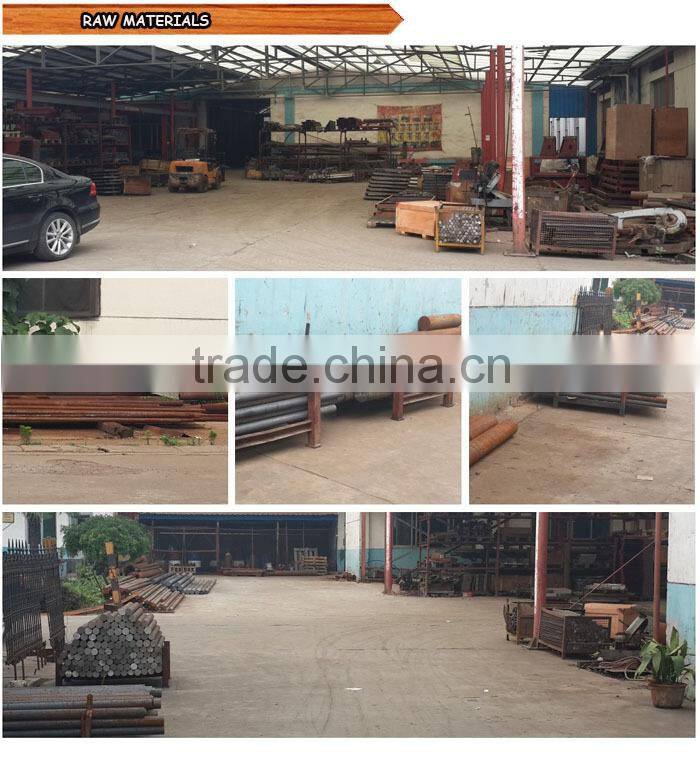

Manual roll forming machine ESR-1550X3.5 Raw materials:

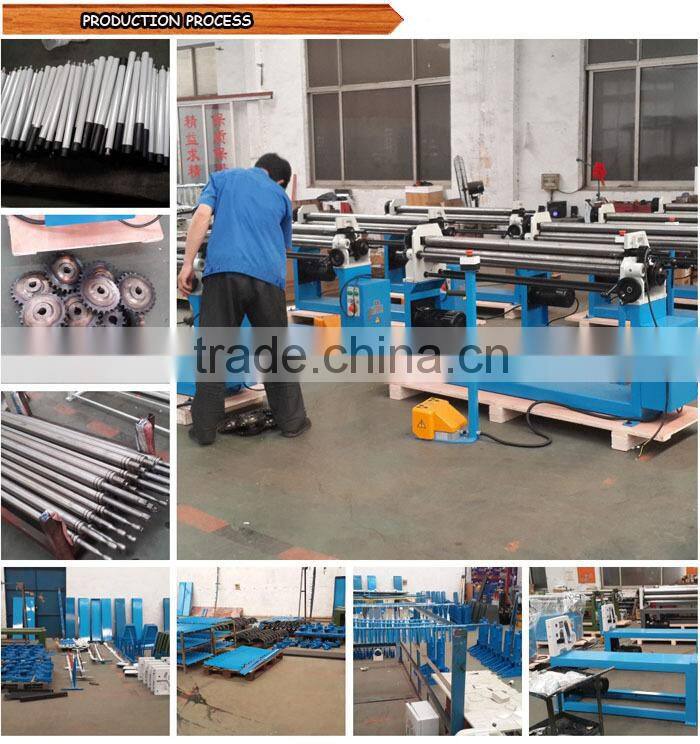

Manual roll forming machine ESR-1550X3.5 production process:
Manual roll forming machine ESR-1550X3.5 in workshops:
