Help CenterDust Press Machine
Related Products
Specifications
1 full auto operation2 hydraulic press
3 ceramci tile press
4 low energy consumption

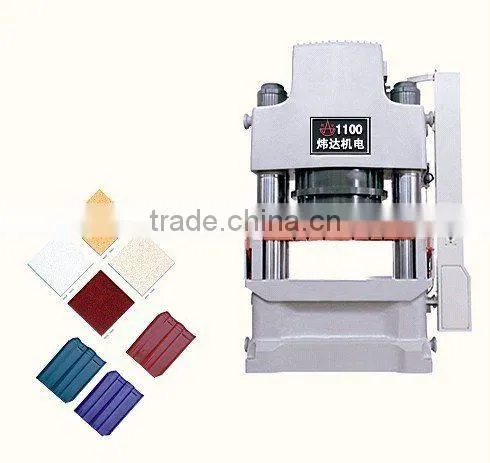

1100T press is one of most widely used machine in brick/tiles making industrial such as ceramic tile,ceramic floor tile,ceramic wall tile. vitrified tile,external tile,ground tile,pave tile,floor brick,polish tile and so on,It's notable by stable and continous performace, long tested and excellent quality. It's adopted 3 beam 4 colum bar sleeve structure with pre-tighten and compact structure.
Ejection device is adopted sngle cylinder 4 ejectors, controrlled by hydraulic press system. Well designed a adobe thickness inspect and adjusting device for more convenience and relaible running. Extremely large work plaform, could produce superior big size tiles or many normal tiles per time. Most key parts like full closed hydraulic system, cooling device, main sealing, hydrualic press component etc. Are daopted world famous brand products to gurantee the high quality and perfect performance.
The movement of the plunger under the servo closed-system control is steady and reliable. The high PLC conrol system and man-maching operation system enable working parameter and state adjust arbitary.
| Title | Unit | Date | Date |
| nominal pressure | KN | 11000 | 175000 |
| Working cycles in idle stroke | Time/min | 24 | 24 |
| Max.die fitting area | mm2 | 1520x800 | 1650x900 |
| Max. materil filling depth | mm | 60 | 60 |
| Max. Ejector force | KN | 215 | 210 |
| Max. stroke of moving beam | mm | 130 | 140 |
| Clolumn space | mm | 1550 | 1700 |
| Oil pump motor | Mpa | 75 | 75 |
| circulatiom pump motor | Mpa | 5.5 | 5.5 |
| Hydraulic pressure | KW | 15 | 15 |
| Weight | T | 40.5 | 55 |
