Specifications
Universal dividing head & Horizontal&Vertical rotary table2.2.Widely used for index boring, milling, circle cutting....

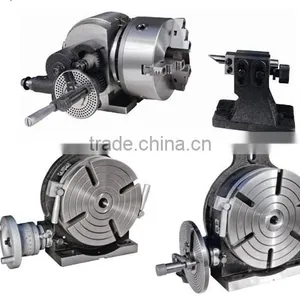

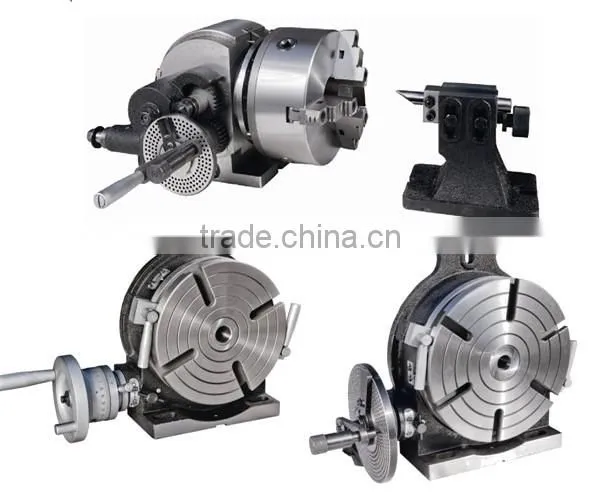

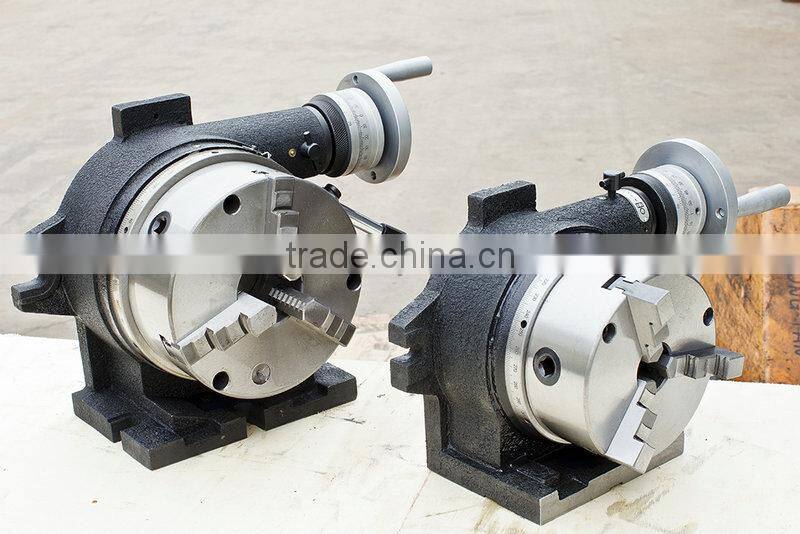

Universal dividing head and Horizontal & vertical rotary table

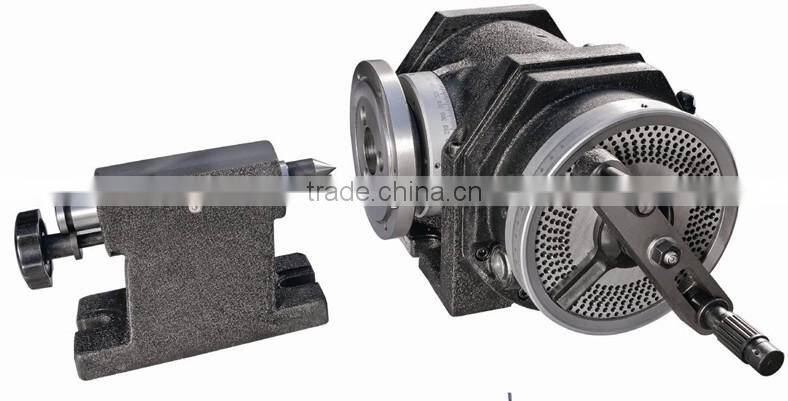

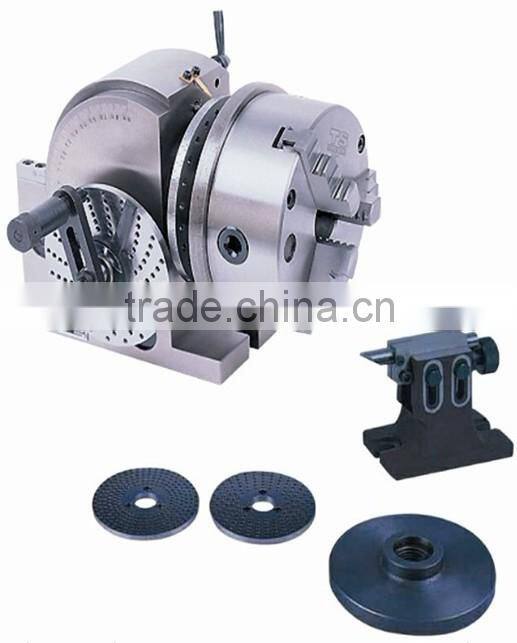

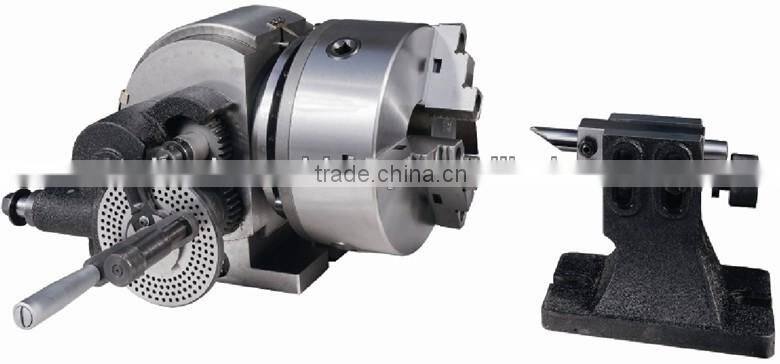

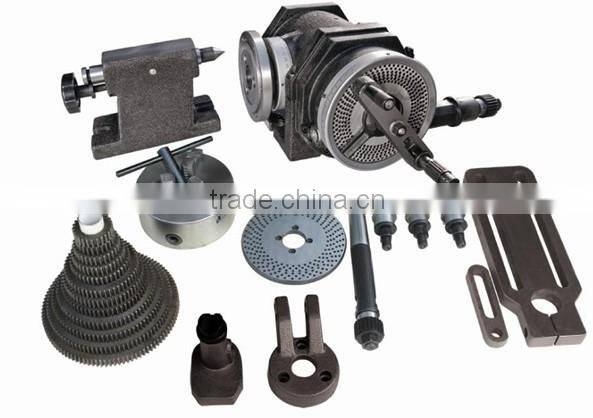

F11 SERIES UNIVERSAL DIVIDING HEAD
Features:
1. The universal dividing head, Type F11100A,F11125,F11160A,F11200A is one of the most important attachment for milling machine. With the help of this dividing head the workpiece held between centers, or on a chuck can be rotate to any angle as esired and the periphery of a workpiece can be divided into any divisions of equal parts. By means of all kinds of cutters, the dividing head can also help milling machine to perform the milling operation for flute spur gear, spiral gear, spiral flute, Archimedean cam, helical flute and etc.
2. The dividing head, is equipped with a face plate that can be mounted onto the spindle nose. The workpiece can be mounted on the face plate, thus, cutting can be carried out on 4-sides of a workpiece.
3. F11125C,F11160C is designed for the customers special needed, the shafting is improved to support heavy load.
4. The universal dividing head, type F11100AL, F11125AL, F11160AL is the same as of the structures and the operation handle is setted on the left.
|
F11100A | F11125A | F11160A | F11200A | |||
| Center hight mm | 100 | 125 | 160 | 200 | |||
| Swivel angle of spindle from horizontal to upward | ≤95° | ||||||
| Horizontal position(downward) | ≤5° | ||||||
| Rotating angle of spindle for one complete revolution of dividing handle | 9°(540grad.,1'each) | ||||||
| Min.reading of vernier | 10'' | ||||||
| Worm gear ratio | 1:40 | ||||||
| Taper of spindle bore | MT3 | MT4 | |||||
| Width of locating key.mm | 14 | 18 | |||||
| Diameter of short taper of spindlenose for mounting flange mm | 41,275 | 53,975 | 53,975 | 53,975 | |||

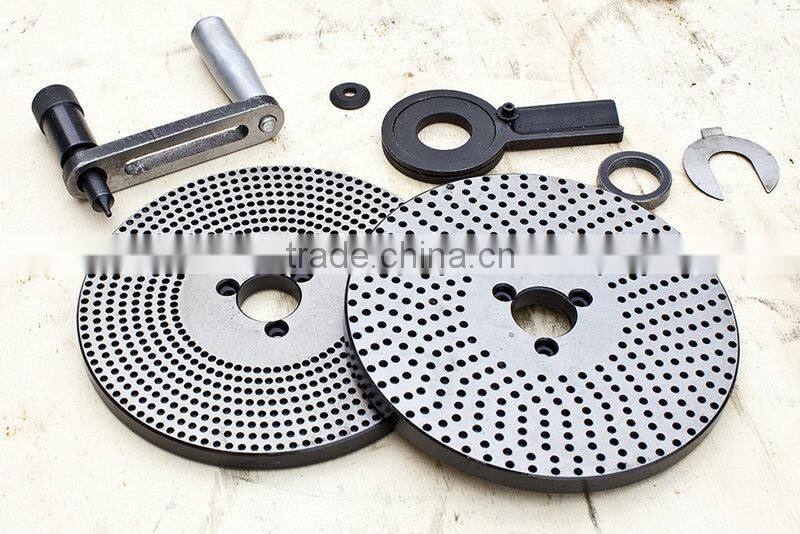

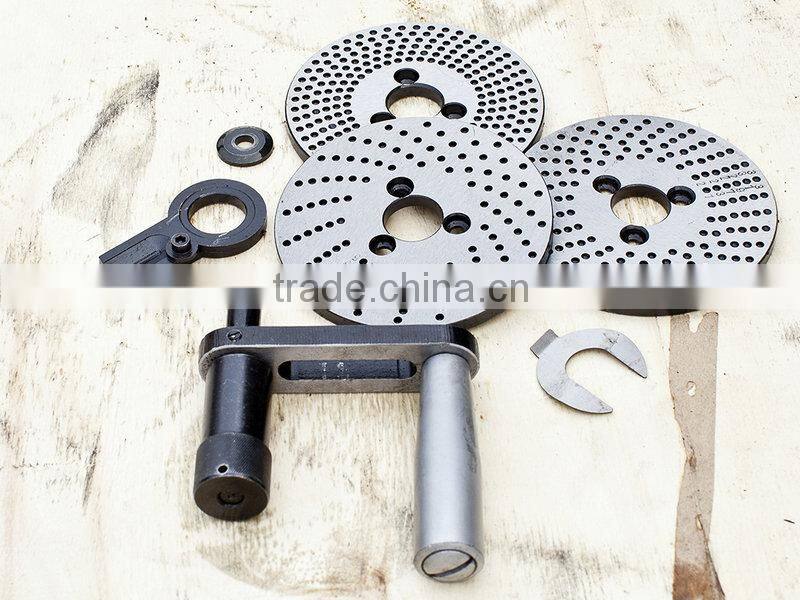

| Numbers of hole in dividing plate | 1st plate | 24,25,28,30,34,37,38,39,41,42,43 | |||||
| 2nd plate | 46,47,49,51,53,54,57,58,59,62,66 | ||||||
| Change gear | Module | 1.5 | 2 | ||||
| Teeth numbers | 25,30,35,40,50,55,60,70,80,90,100 | ||||||
| Individual indexing error of the spindle for one complete revolution of dividing handle | ±45‘’ | ||||||
| Cumulate error at any 1/4 periphery of spindle | ±1‘’ | ||||||
| Max.bearing kg | 100 | 130 | 130 | 130 | |||
| Net weight kg | 67 | 101.5 | 113 | 130 | |||
| Gross weight kg | 79 | 111.5 | 123 | 140 | |||
| Overall dimensions mm | 616×465×265 | 635×530×530 | 710×535×342 | 710×535×342 | |||

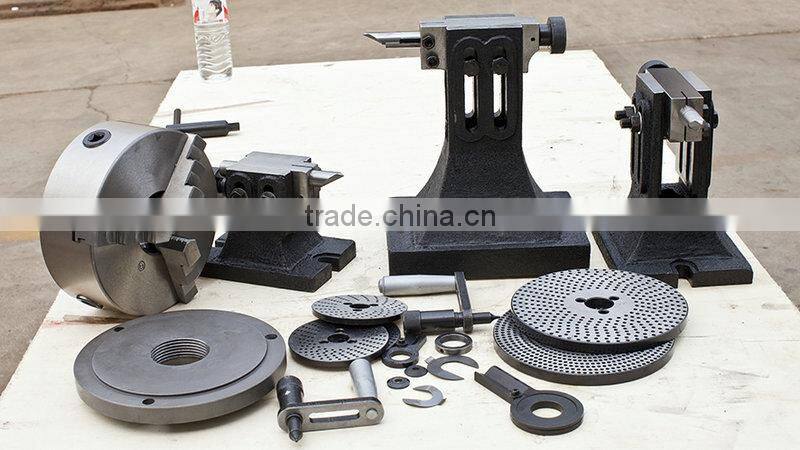

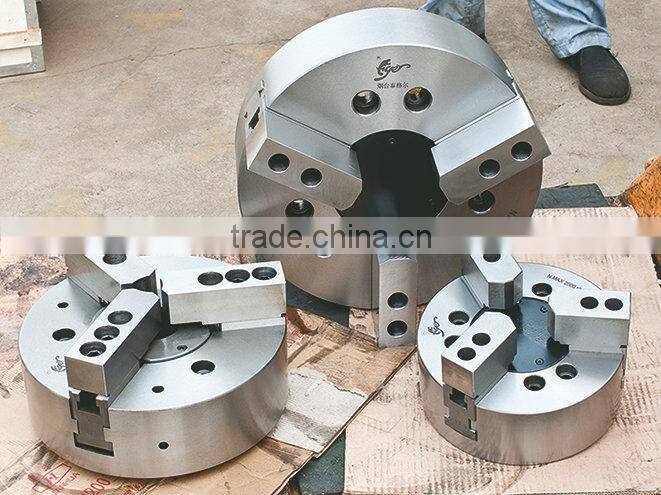

Standard accessories: Tailstock, Change gear bracket, 12X Change gear, Jack, Center, Dividing plate, Flange, 3-Jaw chuck, Round table (optional)

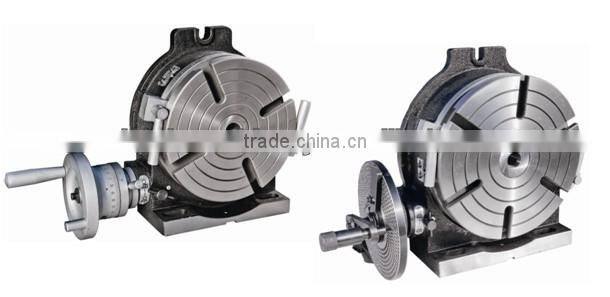

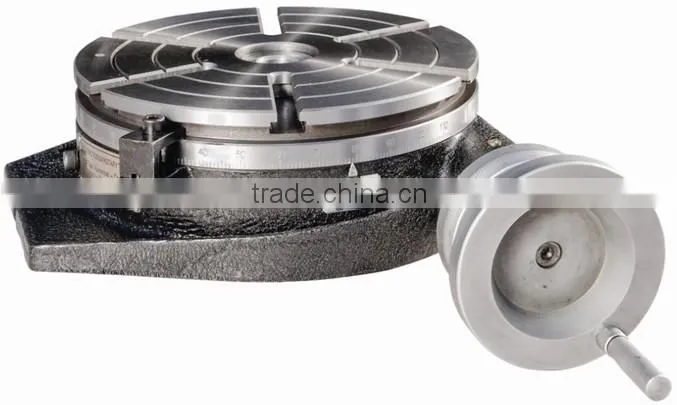

TSL series Horizontal and vertical Rotary table
Features:
1. TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on milling machine.
2. Rotary table in vertical with tailstock working together, it can used on complex work for circle index boring and milling.
3. As clients’ special requirements the TSL with left handwheel can be offered.
Items |
TSL100 |
TSL160 |
TSL200 |
TSL250 |
TSL320 |
TSL400 |
Diameter of table mm |
100 |
160 |
200 |
250 |
320 |
400 |
Morse taper of center hole |
MT2 |
MT3 |
MT4 |
|||
Dia.of center hole |
Φ20X8 |
Φ25X6 |
Φ30X6 |
Φ40X10 |
||
Center height for Vert. Mounting mm |
70 |
125 |
150 |
170 |
210 |
260 |
Width of T-slot mm |
6 |
10 |
12 |
14 |
||
Adjacent angle of T-slot |
90° |
60° |
||||
Width of locating key mm |
10 |
12 |
14 |
18 |
||
Transmission radio of worm gear |
1:72 |
1:90 |
||||
Readout of handwheel |
2' |
1' |
||||
Min.value of vernier |
10" |
|||||
Indexing accuracy |
120" |
80" |
60" |
|||
load (Hor.) kg |
20 |
100 |
150 |
200 |
250 |
300 |
load (Vert.) kg |
10 |
50 |
75 |
100 |
125 |
150 |
N.W. kg |
7 |
23 |
31.5 |
46 |
77 |
150 |
G.W. kg |
8 |
30 |
42 |
57 |
92 |
175 |
Case dimensions mm |
245X165X112 |
432X432X220 |
450X440X235 |
510X460X240 |
590X580X250 |
750X684X286 |
F12 SERIES SEMI-UNIVERSAL DIVIDING HEAD
BS SERIES SEMI-UNIVERSAL DIVIDING HEAD
BS SERIES UNIVERSAL DIVIDING HEAD
TSA series Rotary table
