DIY Precision Bench Lathe 920W

Name: DIY Precision Bench Lathe 920W
Brand: UNIECH
SKU: 107448973
Availability: InStock

US$ 1,300 - 2,000 MOQ: 3 Sets

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Tengzhou Uni-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 230mm

Place of Origin Shandong, China

Brand Name UNIECH

Model Number 920w

Voltage 220V, 110V

Power(W) 0.75KW

Dimension(L*W*H) 1060 x 550 x 550

Weight 95

Certification ISO9001, CE

After-sales Service Provided Overseas service center available

Specifications

DIY precision Bench lathe 920W
Spindle supported by precision tapered roller bearings
Hardened and ground bedways
Power l

DIY precision Bench lathe 920W

Model		920W
Max.Swing.over bed	mm	Φ230(9)
Max.Swing.over cross slide	mm	Φ130(5-5/16)
Bed width	mm	115(4-1/2 )
Max.Distance between centers	mm	500(20 )
Taper of spindle bore		MT#3
Diameter of spindle bore	mm	Φ20(7/8)
Steps of spindle speeds		6steps
Range of spindle speeds	r/min	130-2000rpm
Metric thread range	mm	0.4-3.5(18kinds)
Inch screw thread range	TPI	8-60(30kinds)
Range of longitudinal feeds		0.0006 -0.037
Travel of tailstock quill	mm	40(1-9/16 )
Diameter of tailstock quill	mm	Φ26(1-1/16)
Taper of tailstock quill		MT#2
Main motor power		3/4HP, 1PH

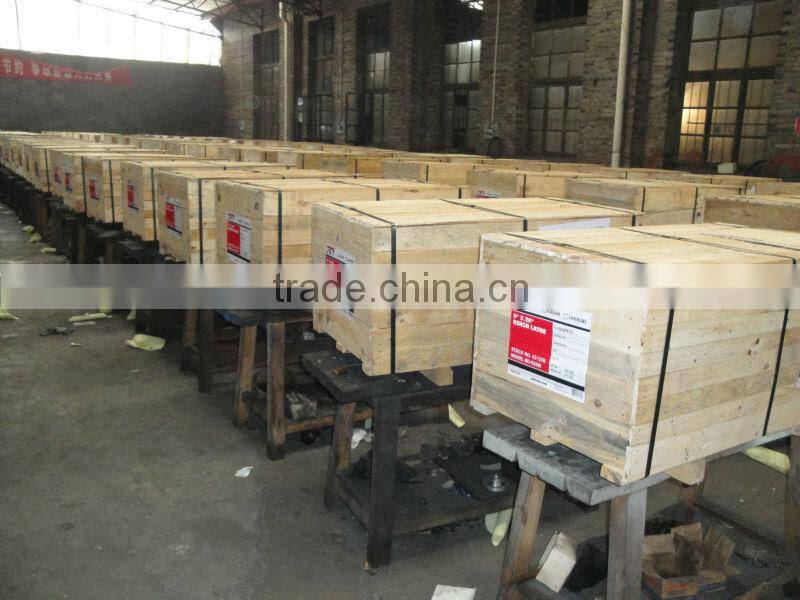

Packing size of lathe(LxWxH)	mm	1060 x 550 x 550
Net Weight	Kg	95
Gross Weight	Kg	130
