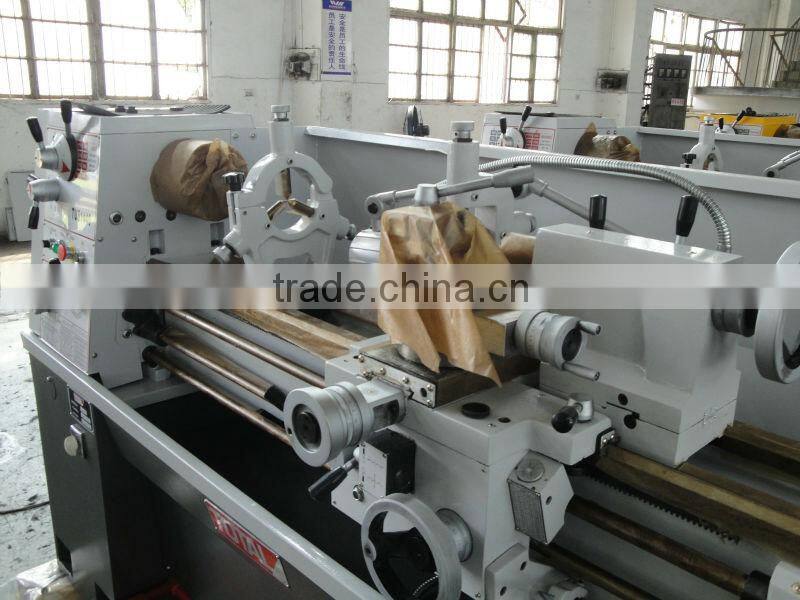

Precision Horizontal High Speed Gap Bed Lathe GH-1440A

Name: Precision Horizontal High Speed Gap Bed Lathe GH-1440A
Brand: unitech
SKU: 107448561
Availability: InStock

US$ 3,500 - 4,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Tengzhou Uni-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 360mm

Place of Origin Shandong, China

Brand Name unitech

Model Number GH1440A

Voltage 220V, 380V,

Power(W) 2.2KW

Dimension(L*W*H) 192x77x146cm

Weight 800kgs

Certification CE,ISO9001

After-sales Service Provided Overseas service center available

Specifications

precision horizontal high speed gap bed lathe GH-1440A
two -speed high speed gap bed lathe
spindle bore 38 horizontal lathe

Model		GH1440A
Max.Swing.over bed	mm	Φ356(14)
Max.Swing.over cross slide	mm	Φ220(8-5/8)
Max.Swing.over gap	mm	Φ506(20)
Bed width	mm	206(8)
Max.Distance between centers	mm	1000(40")
Taper of spindle bore		MT#5
Diameter of spindle bore	mm	Φ38(1-1/2)
Steps of spindle speeds		16steps
Range of spindle speeds	r/min	45-1800rpm
Spindle nose		D-4
Metric thread range	mm	0.45-7.5(22kinds)
Inch screw thread range	TPI	4-112(40kinds)
Range of longitudinal feeds	mm	0.03-0.688(0.0011-0.0271in/rev)
Range of cross feeds	mm	0.015-0.220(0.0003-0.01in/rev)
Diameter of leadscrew	mm	Φ22(7/8)
Pitch of leadscrew	mm	4(8T.P.I)
Travel of tailstock quill	mm	120(4-3/4)
Diameter of tailstock quill	mm	Φ45(1-25/32)
Taper of tailstock quill		MT#3
Main motor power	Kw	1.5/2.4
Packing size of lathe(LxWxH)	mm	1900 x760 x1460
Net Weight	Kg	875
Gross Weight	Kg	960
