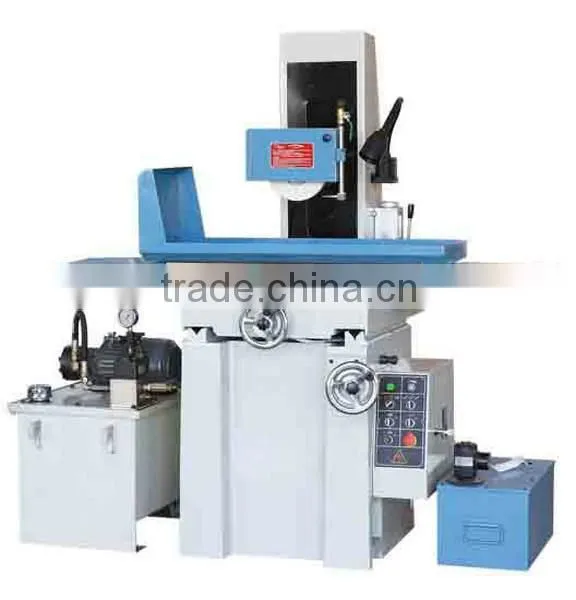

SURFACE GRINDING MACHNE MY1022

Name: SURFACE GRINDING MACHNE MY1022
Brand: UNITECH
SKU: 107447697

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Tengzhou Uni-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO OR SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Max. Grinding Diameter according to the client's requirement

Max. Grinding Length according to the client's requirement

Place of Origin Shandong, China

Brand Name UNITECH

Model Number MY1022

Voltage 220V/380V

Power(W) according to the client's requirement

Dimension(L*W*H) 1800*1400*1800MM

Weight 0.90MT NET WEIGHT

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

SURFACE GRINDING MACHNE MY1022
1.Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2.Hydraulic system

SURFACE GRINDING MACHNE MY1022

Technical Parameters		Unit	MY1022	MYS1022
piece to be Ground (L×W×H)		mm	600×250×490	600×250×490
Max. Grinding Length		mm	600	600
Max. Grinding Width		mm	250	250
Distance From Table Surface To Spindle Center		mm	490	490
Slide way			V-type rail with Steel-ball	V-type rail with Steel-ball
V-type rail with Steel-ball		Kg	200	200
Table Size (L×W)		mm	550×260	550×260
Number of T -Slot		mm×n	12×1	12×1
Speed OF Working Table		m/min	3-23	3-23
Cross Feed On Handwheel		mm	0.02/Graduation2.5/revolution	0.02/Graduation2.5/revolution
Vertical Feed On Handwheel		mm	0.01/Graduation1.25/revolution	0.01/Graduation1.25/revolution
Wheel Size (dia.×width×bore )		mm	200×16×31.75	200×16×31.75
Spindle Speeds	50Hz	rpm	2850	2850
Spindle Speeds		rpm	0-6000	30-6000
Spindle Motor		Kw	1.1	1.1
Hydraulic station motor		Kw	1.5	1.5
Working Pressure		Mpa	3	3
Max.Capacity		L/min	18	18
Minimum Of Numerical		L	80	80
Coolant Pump		Kw	0.4	0.4
Minimum of Numerical Display		mm		0.001-0.005
Machine Size (L×W×H)		mm	1800×1400×1800	1800×1400×1800
Packing Size (L×W×H)		mm	1300×1630×1960	1300×1630×1960
Gross,Net		T	0.90, 0.95	O.89, 0.94
