2M9120A Multi-use Grinding Machine

Name: 2M9120A Multi-use Grinding Machine
Brand: UNI-TECH
SKU: 107447727
Availability: InStock

Tengzhou Uni-Tech Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Universal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

ANY PORT IN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Universal

CNC or Not Normal

Max. Grinding Diameter 200mm

Max. Grinding Length 500mm

Place of Origin China

Brand Name UNI-TECH

Model Number 2M9120A

Voltage 380V

Power(W) 2.905

Dimension(L*W*H) 1520x1133x1173mm

Weight 1700kgs

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

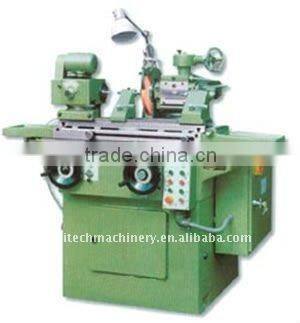

2M9120A multi-use grinding machine
1. Max. swing over table:200mm
2. Max. workpiece length

2M9120A

	Model	2M9120A
	Code No.	301061
	Max. swing diameter over table	Φ200mm
	Max. work piece length	500mm
	Size for surface Grinding	300×125mm
	Size for cutter grinding	Φ200×500mm
	Max. weight of Work piece	10kg
	Work head spindle speeds	110.200.300rpm
	Work head swivel	±90º
	Max. traverse of the wheel head
	Slide Vertical/Cross	200/200mm
	Wheel head spindle speeds	2500rpm
	Speed of wheel head up-down travel
	Internal grinding spindle speed	13500rpm
	Longitudinal table travel, hand control	480mm
	Table travelse speed	<7m/min
	Max. swivel of table	±45º_-30º
	Total power	2.905kw
	Overall dimensions	1520×1133×1173mm
	Size of case	1900×1400×1630mm
	Gross Weight/Net weight	1700/1285kg
Circularity
External		0.0015mm
Internal		0.0025mm
Circularity		Ra0.32m
Surface roughness		Ra0.63µm

Standard Equipment
Coolant equipment	1Set-Lefttailstock
6Piece-Grinding wheel	5Set-Driving dogs
1Set-Internal grinding wheel head	1Set-Wheel dresser
1Piece-Extended grinding wheel spindle	without diamond
1Set-Cutter head	3Piece-Wheel pullers
1Set-Ttree-jaw chuck	2 Piece-Vee-belt
1Set-Plane grinding	1Set-Wheelbalancing stand
1 Piece-Centre	1Piece-Flat belts
1Set-Tooth rest	3Sets-Flangesfor grinding wheel
1 Piece-Centre	2Piece-Centering technical sleeves
	2Sets-Wheel guards
