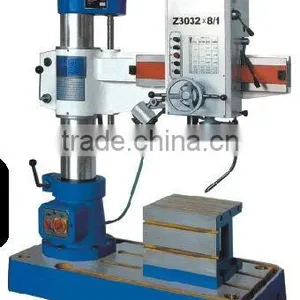

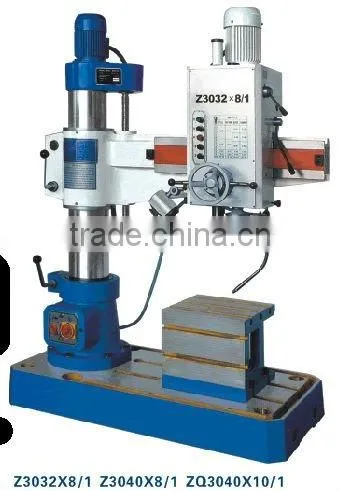

Radial Drilling Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Shandong, China

Tengzhou Uni-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO OR SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Shandong, China

Model Number Z3040X8-1

Specifications

Radial Drilling Machine
With safe and reliable feed safety machine, all parts easy operation and change

Radial Drilling Machine

Features:

1. With safe and reliable feed safety machine, all parts easy operation and change.

2. All controls centralized on the head stock easy operation and change.

3. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.

4. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.

5. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.

6. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

7. The machine with small appearance and much function, the machine widely used for drilling, counter boring, tapping, etc

Model	Z3032x8/1	Z3040X8/1
Code No.	402001	402002
Max. Drilling capacity(mm)	32/40
Distance spindle axis to column generating line	320-820
Diameter of column(mm)	200
Spindle taper	MT4
Spindle travel	240
Spindle speeds range(mm)	75-1220
Spindle speeds series	6
Range of Spindle feeds (r/min)	0.1-0.25
Mpindle Spindle feeds	3
Distance between spindle nose to working surface of base(mm)	320-900
Dimension of worktable(mm)	400×400×350
Diameter of base(mm)	1370×700×160
Overall size(mm)	1407×720×1885
Motor(w)	1500
G.W./N.W.(Kg)	1425/1200
Packing dimension(cm)	155×77×210
