Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Radial Drilling Machine Z3040X16/I,Z3050X16/I

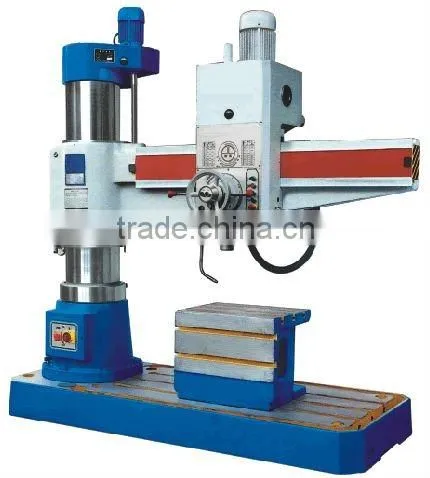

Radial Drilling Machine Z3040X16/I,Z3050X16/I

Radial Drilling Machine Z3040X16/I,Z3050X16/I thumbnail-1
Radial Drilling Machine Z3040X16/I,Z3050X16/I photo-1
US$ 1,200 - 55,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Drilling Speed:
25-2000
Contact Supplier Request Quote Chat Now
Tengzhou Uni-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Drilling Speed 25-2000
Place of Origin Shandong, China
Brand Name UNI-TECH
Model Number Z3040X16/I,Z3050X16/I
Voltage 220V/380V/440V
Power(W) 3KW/4KW
Dimension(L*W*H) 270X112X258
Weight 4500KGS
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Radial Drilling Machine
With safe and reliable feed safety machine, all parts easy operation and change

Characterc





* With wide range of speed and feed, with manual,power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
* With safe and reliable feed safety machine,all parts easy operation and change.All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraudic power.
* Main parts are made by machine center which import form KIA with high precision and efficiency,ensuring reliability and high quality.
* Integrating technology for casting parts is excellent,adopting casting equipment, ensuring
high quality of materia for basic parts.
Spindle parts are made by special high quality steel heat treatment which made by first class
equipments,ensuring high strength and durability.
* Main gears are machining by gear grinding,ensuring high precision and low noise.







Standard accessories





* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts







Special accessories





* Quick instead chuck
* Tapping chuck
* Grease gun







Parameter





Model

Z3040×16/1

Z3050×16/1

Max.Drilling capacity (mm)

40

50

Distance spindle axis to column generating line (mm)

350-1600

350-1600

Diameter of column (mm)

350

350

Spindle taper

MT4

MT5

Spindle travel (mm)

315

315

Spindle speeds range (r/min)

25-2000

25-2000

Spindle speeds series

16

16

Range of Spindle feeds (r/min)

0.04-3.2

0.04-3.2

Spindle feeds

16

16

Max.Distance spindle nose to working surface of base (mm)

350-1250

320-1220

Dimension of worktable (mm)

630×500×500

630×500×500

Dimension of base (mm)

2400×1000×200

2400×1000×200

Overall Size (mm)

2500×1060×2650

2500×1060×2650

Power of Main motor (KW)

3

4

G.W/N.W (kg)

4500/3500

4300/3500

Packing dimension (cm)

270×112×258

270×112×258
