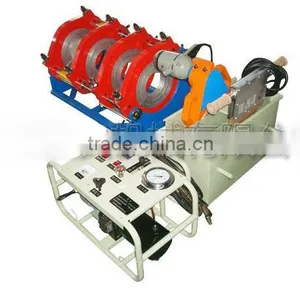

Hydraulic Butt Fusion Welding Machine QL63-200

Name: Hydraulic Butt Fusion Welding Machine QL63-200
Brand: Uni-tech
SKU: 107446155

US$ 1,200 - 1,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Uni-tech

Model Number:

QL63-200

Tengzhou Uni-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Uni-tech

Model Number QL63-200

Voltage 220V,380V

Current 350A

Dimensions 950x520x500

Weight 175kg

Usage used to weld PE&PPpipe

Certification CE,ISO9001

After-sales Service Provided Overseas third-party support available

Specifications

Hydraulic Butt Fusion Welding Machine
1.Weld range:63-200mm
2.Certificate:ISO9001
3.Application:Water supply&drainage

Hydraulic Butt Fusion Welding Machine QL-63-200

Functions and features:

1.Suitable for butt fusion DN63-200 PE and PP pipes.

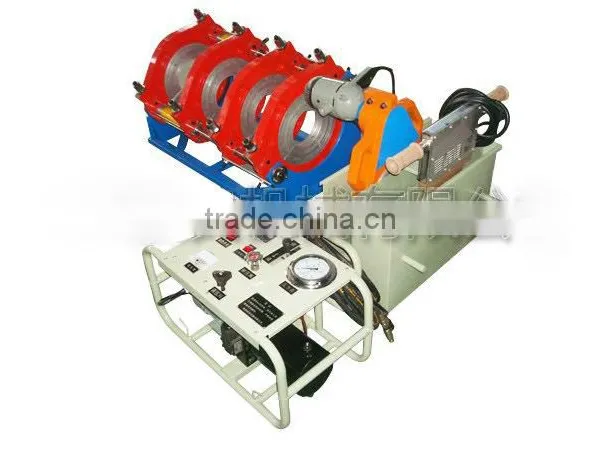

2.It is composed of operating deck,fixture,heating plate and milling cutter.

3.The fixture and operating deck are separated,easy to operate under the groove.

4.The fixture has two ferrules,can locate the pipes more accurately,and easy to adjust the bit wrong side.

5.The removable fixture makes to weld some special pipes more easily.

6.Hydraulic system controls the docking pressure,which makes the pressure accurate and the machine work smoothly.

7.Solenoid valve controls the running of cylinder,it makes the operation more simple and reliable.

Technical Specification:
Item			QL63-200
Welding specification			DN63,75,90,110,125,140,160,180,200
Docking deviation			≤0.3mm
Temperature deviation			±3°C
Total power consumption			3KW/220V
Working temperature			225°C±5°C
Environment temperature			-5~45°C
Time required to reach soldering temperature			<20min
Materials can be welded			PE,PP,PB,PVDF
