direct buy china 4 channel cctv dvr kits, drone , alibaba express turkey,american police helmet
Key features :
1.1PCS BE-9604H

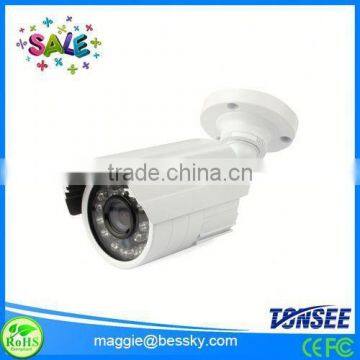

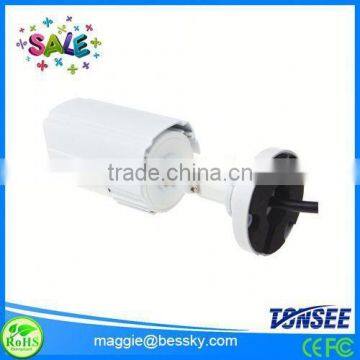

2. 4PCS BE-IRI80M(1/3" CMOS 800TVL,Weatherproof IR CAMERA,24 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 20M)
3. 1PC YQ36W12-01 or other the same quality power adaptor(12V/3A power adaptor for cameras.)
4. 1P BE-plug01 (Connect power adaptor and power)
5. 4PCS BE-VP20 (20M 2 in 1 (Power+Video) extension cable with BNC connector.)
6. 1PC BE-1IN4(1 in 4 cable for cameras)
7. Weight : 8Kg
Specifications:
Model |
BE-9604H |
|
System |
Main processor |
HIS chipset Hi3515A |
Display |
Display screen |
1/4 screen |
Video |
Video standard |
PAL(625 lines,50fps);NTSC(525lines,60fps) |
|
Monitor quality |
Monitor:D1;VGA:1080P ;HDMI:1080P |
|
Playback quality |
Max support 1080P |
|
Encode capability |
4CH D1 real-time/ 4CH 960H |
|
Decode capability |
4CH D1/ 4CH 960H |
|
Motion detection |
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
Audio |
Audio compression |
G.711A |
|
Record and playback
|
Record mode |
Manual,alarm,motion detection,timing |
|
Local playback |
Support 4CH D1/ 4CH 960H playback synchronously |
|
Video search |
Time,date,event,channel search |
Storage and back up |
Space occupation |
Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; |
|
Video storage |
Local HDD ,Network |
|
Back up mode |
Network backup,USB portable HDD,USB DVD-RW |
Interface |
Video input |
4CH BNC |
|
Video output |
1CH BNC,1CH VGA,1CH HDMI |
|
Audio input |
4CH RCA |
|
Audio output |
1CH RCA |
|
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
|
PTZ control |
1 RS485;support multi kinds of PTZ Protocol |
|
USB port |
2*USB2.0 |
|
HDD port |
1 SATA(max support 3TB) |
|
Wireless port |
3G,WIFI(extension via USB port) |
CMS |
CMS software |
Support (up to 255 DVR simultaneously) |
other |
Tour |
Support |
|
Remote controller |
Support |
|
Working temperature |
-20°C-60°C |
|
Working humidity |
10%-90% |
|
Power |
12V/3A |
|
Dimension |
260(W) x 45(H) x 234(D) |
Our Service:
- 100% brand new and High quality
- Certification: CE/FCC/RoHS
- Support :Onvif & PSIA
- 2 years warranty
Any inquires will be replied within 12 hours
- OEM/ODM available
- Print your logo on the cameras outer casing
- Customized cameras color box
- Your logo can be put into the software or DVR/NVR system
- Any your idea on cameras ,DVR or NVR ,we can help you to design and put it into production
- High image quality, reasonable and competitive price in the market, fast delivery
After-sale service
- All goods will be strictly checked by our QC department before shipping
- All goods will be well packaged
- 24 Months hardware warranty
- Life –time software/firmware update and technical support
Delivery: 1-3 working days for sample order, 3-8 days for bulk production.
Payment: Accept T/T, Western Union, Paypal, , L/C, MoneyGram. Ect.
Shipping: UPS, DHL, TNT, FedEx, by air cargo, by sea or per as your instruction.
OEM: Accept special design and customize specification; Free logo print service; Customize boxes.
MOQ: 1 piece for sample order. Suggest our clients test sample first before bulk order.
More info,welcome to contact me directly. Look forward your inquiry.
