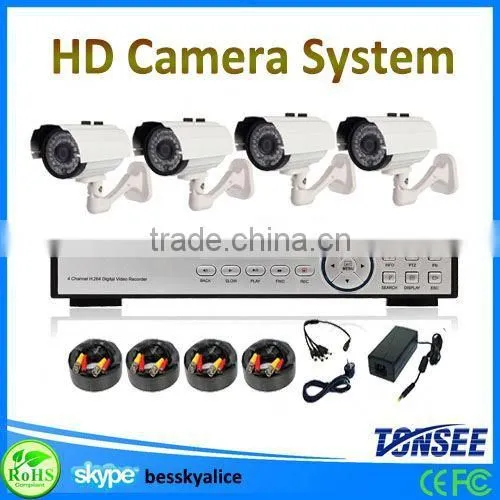

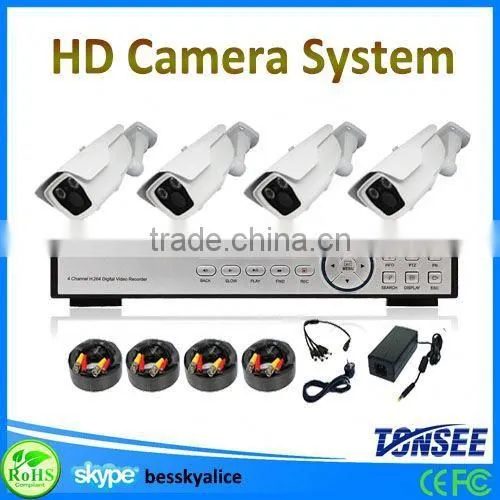

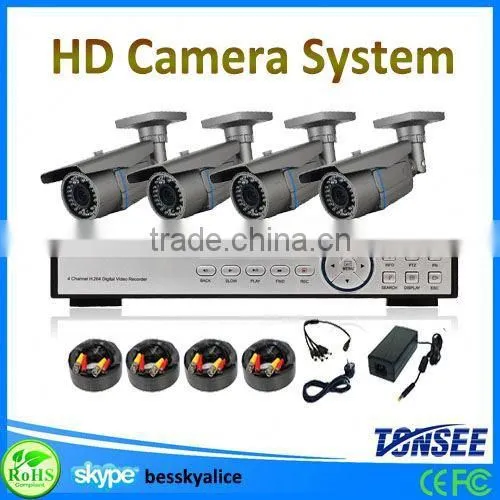

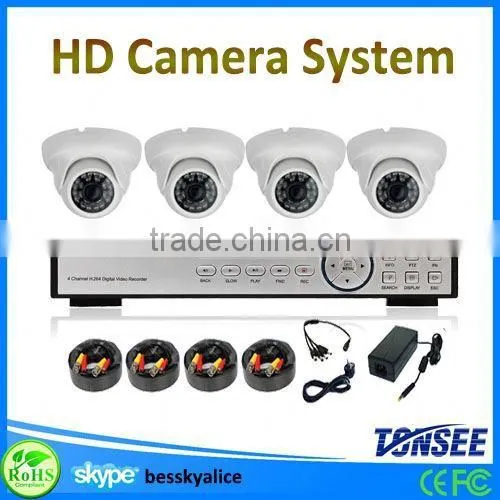

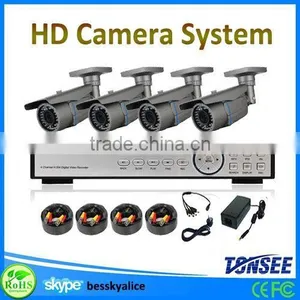

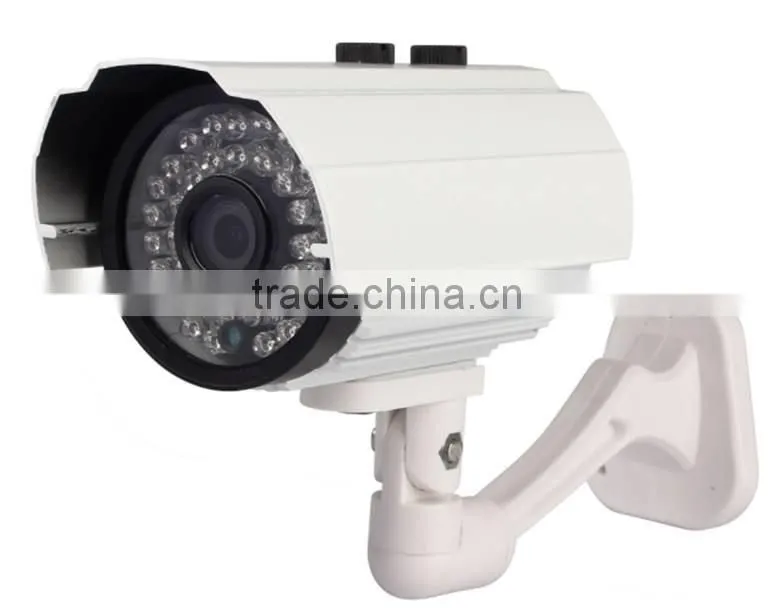

Hot sale cctv camera brand name,4 channel waterproof bullet ahd camera 720p/960p ahd cctv security camera
DVR Specification:
|
Model |
BE-8104HA |
|||
System |
Main processor |
Industrial grade embedded micro controller chip Huawei HIS chipset Hi3531 |
|||
Operating system |
Embedded LINUX operating system |
||||
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
||||
Display |
Operation interface |
16 bit real color GUI interface support mouse operation |
|||
Display screen |
(Take all analog input as an example, others are depended on the selected channel mode) |
||||
1/4 screen | |||||
Video |
Image encode |
H.264(High Profile) |
|||
Monitor quality |
VGA:1080P ;HDMI:1080P |
||||
Playback quality |
Max support 1080P under HVR and NVR mode;Max support AHD 1080P under DVR mode: |
||||
Encode capability |
4CH AHD 1080P real time(DVR mode)
|
||||
Decode capability |
4CH AHD 1080P real time(DVR mode)
|
||||
Multi-mode video input |
DVR mode :4CH*1080P/4CH*720P HVR mode:2CH*1080P(analog)+2CH*1080P(network)/4CH*720P+4CH*720P NVR mode:4CH*1080P/1CH*1080P+8CH*720P/20CH*960H |
||||
Motion detection |
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
||||
Audio |
Audio compression |
G.711A |
|||
|
Record and playback
|
Record mode |
Manual,alarm,motion detection,timing |
|||
Local playback |
1-4ch playback synchronously; Under the mode of DVR, Max support 4CH AHD 1080P real time playback synchronously |
||||
Video search |
Time,date,event,channel search |
||||
Storage and back up |
Space occupation |
Video:1080P 20~30G/day*channel,720P:20G/day*channel;960H:12~20G/day*channel |
|||
Video storage |
Local HDD ,Network |
||||
Back up mode |
Network backup,USB portable HDD,USB DVD-RW |
||||
Interface |
Video input |
4CH BNC |
|||
Video output |
1CH VGA,1CH HDMI |
||||
Audio input |
4CH RCA |
||||
Audio output |
1CH RCA |
||||
Alarm input |
NO |
||||
Alarm output |
NO |
||||
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
||||
PTZ control |
1 RS485;support multi kinds of PTZ Protocol |
||||
USB port |
2*USB2.0 |
||||
HDD port |
1 SATA(each max support 4TB) |
||||
Wireless port |
3G,WIFI(extension via USB port) |
||||
other |
Tour |
Yes |
|||
Remote controller |
Yes |
||||
Power |
12V/2A |
||||
Dimension |
260(Length) x 221(Width) x 44(Height) |
||||

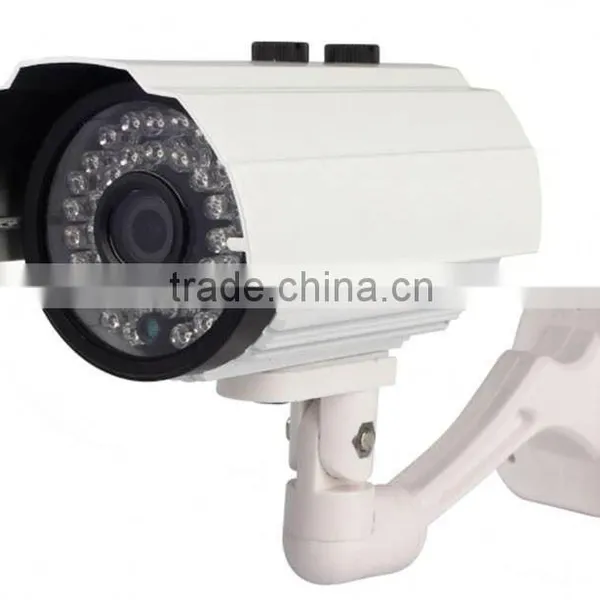

AHD Camera Main Feature:
36 pcs 5mm IR-LED ,IR Range: 30M
Built-in 3.6mm( MP) Board Lens
155(D) x55(W) x120(H)mm
Water resistance:IP66
AHD Camera Specification:
| Specification: | ||
| Model No. | BE-ISBA720AHD | BE-ISBA960AHD |
| Image Sensor | 1/4-inch 1.0 Megapixel CMOS720P | 1/2.8-inch 1.3 Megapixel CMOS |
| 9712+NVP2431H (DNR,OSD) | SONY238+NVP2430H WDR, 3D DNR, OSD | |
| Pixels | 1280(H)X720(V) | 1280(H)×960(V) |
| Television Standards | PAL/ NTSC | |
| IR LED | 36PCS of 5mm IR LED | |
| IR Distance | 30m | |
| Lens | Board Lens 3.6 mm(3MP) | |
| Sync System | Internal | |
| Usable Illumination | 0.01Lux/F2.0 | |
| IR Power On | CDS Auto Control | |
| S/N Ratio | ≥65dB (AGC OFF) | |
| Gamma Correction | 0.45 | |
| Video Output | Composite Signal (1.0Vp-p, 75Ω) | |
| Scanning System | PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec | |
| Electronic Shutter | Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec | |
| Operation Temperature | -10°C ~ +50°C, RH: 95% Max | |
| Storage Temperature | -20°C ~ +60°C, RH: 95% Max | |
| White Balance | Auto | |
| Power Supply | DC12V | |
| Dimension | 155(D) x55(W) x120(H)mm | |
Instruction manual:

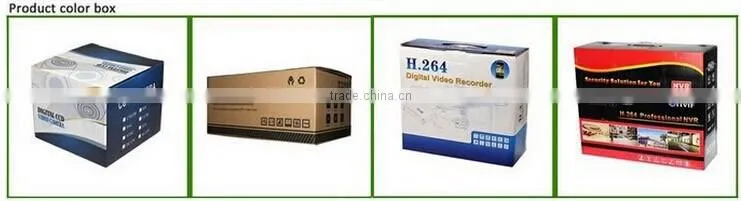

CCTV Camera Packing:
CCTV Camera Shipping:
- Leading and professional manufacturer in CCTV industry
- 5 years export experience
- High Quality, Competitive and reasonable price
- Fast Delivery
- 2 year warranty and lifetime maintenance
- OEM & ODM,CE,FCC,Rohs passed
- Best pre-sale, sale and after-sale service
