Specifications
Applied to the temperature and humidity control applications,automatical control of cooling,humidity,fans,lighting .
About us
Fenghua Refworld Refrigeration Industry Co., Ltd. is a company specializing in the R&D, manufacture and sale of refrigeration components and equipment. Through several years of hard work and devotion in the field of refrigeration, high technology manufacturing equipment and advanced management concept, we are making a solid base for our future development. Now we have established a wide sales network all over the world. We are always open for your visit and cooperation and hope that we can establish long-term cooperation with your esteem company and will do what we can for the development of the world refrigeration and air conditioning.
About product
Instruction
Functional Overview
Applied to the temperature and humidity control applications,automatical control of cooling,humidity,fans,lighting and
other loads.
The technical requirements
1.Working conditions,
1.1 Operating Voltage: 220-240 VAC, 50 ~ 60Hz;
1.2 compressor relay contact capacity: 16A; fan relay contact capacity: 7A;
1.3 Working temperature: -15 °C ~ 60 °C.
2.Features, safety requirements:
2.1 A temperature measuring range: - 4 0.0 ~ 50.0 °C, the minimum display resolution :0.1; Accuracy: ± 1.0 °C;
Humidity display range: 0% RH ~ 100RH%, display resolution is 1;
Accuracy: ± 3% RH (25 °C)
2.2 Meet the Gb4706.1-2005 safety standards.

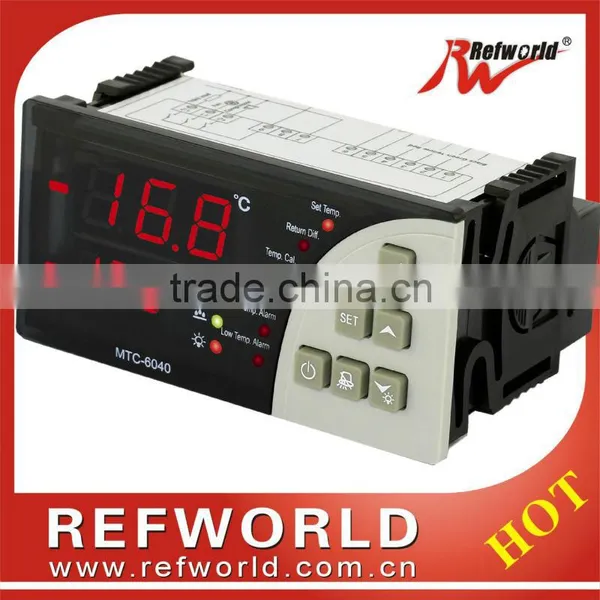

Display panel and buttons introduction
Buttons from top to bottom, from left to right as follows: power key; Set button; alarm mute button, OK button; up key,
down key. For operation of the controller
Parameter settings and Operations.
The controller displays the measured temperature and the humidity measured under normal conditions,smaller bottom
display shows the measured humidity and smaller bottom display shows the measured humidity.Display "El" when the
temperature sensor failure. "E2" when humidity sensor failure.
1.Parameter setting method
Control temperature setting.
Under the normal conditions,press the setting button for more than 3s the "temperature setting7'indicator lights;
temperature display shows the current stop control temperature and the humidity display shows "SEt".Then press
can adjust the control temperature,when adjusted to the appropriate expectations,press the OK button to confirm,all values
be saved and enter the hysteresis temperature setting.The "hysteresis temperatureHindicator lights.Temperature display
shows the hysteresis temperature and the humidity display shows^H^Then press can adjust the compressor
hysteresis when adjusted to the appropriate expectations,press the OK button to confirm,all values be saved and enter the
temperature correction setting.The "correction settingMindicator lights.Temperature display shows the correction
temperature and the humidity display shows "ot"Then press ,can adjust the correction value when adjusted to the
appropriate expectations,press the OK button to confirm,all values be saved and enter the humidity correction setting,the
humidity correction indicator lights.Temperature display shows the humidity correction value and the humidity display
shows "oh'Then press can adjust the correction value when adjusted to the appropriate expectations,press the
OK button to confirm,all values be saved and enter the high temperature alarm setting.The "high temperature alarm"
indicator lights.Temperature display shows the related alarm temperature and the humidity display shows "ALU" .Then
press can adjust the alarm value ,when adjusted to the appropriate expectations,press the OK button to confirm,
all values be saved and enter the low temperature alarm setting ,the "low temperature alarm "indicator lights.Temperature
display shows the related alarm temperature value and the humidity display shows "ALL".Then press can adjust
the alarm value ,when adjusted to the appropriate expectations,press the OK button to confirm,all values be saved.Then
back to the normal operation.Temperature setting range: 2.0 to 20.0;.
Parameter
Display
Temperature
setpoint
hysteresis
Temperature
correction
Humidity
correction
High temperature
alarm relative
low temperature
alarm setpoint
Max Unit
20 oC
15.0 oC
10.0 oC
10 %RH
25 oC
