About product

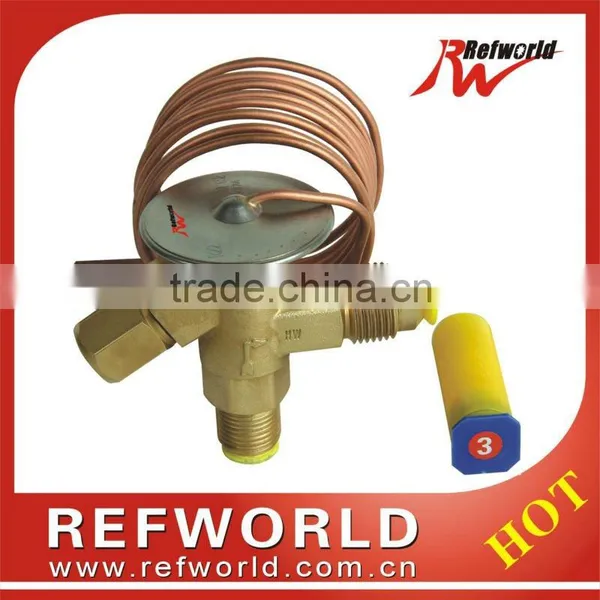

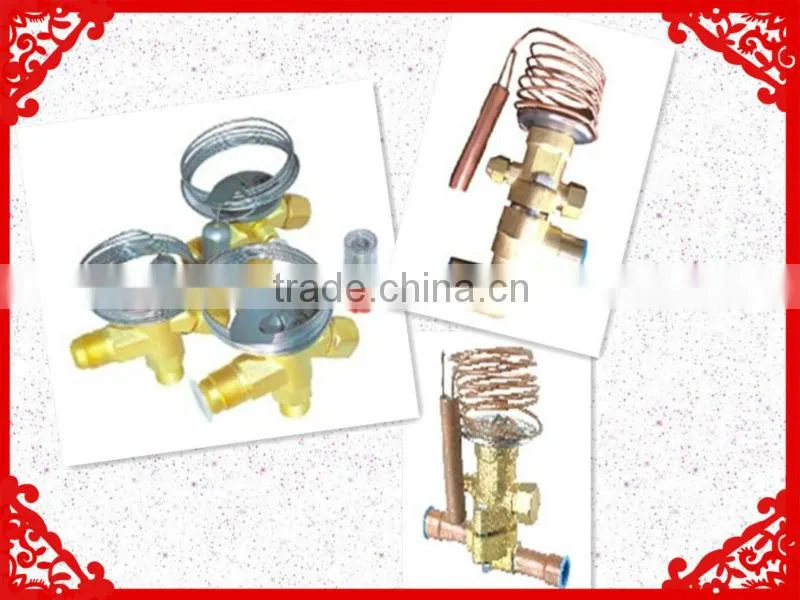

PRODUCT'S NAME: REFWORLD HIGH PERFORMANCE PERFESSIONAL Thermostatic Exchangeable Orifice Expansion Valve
Sepecifications
- Interchangesble cartridges
- Constant superheat acrossa wide application range
- Stainless steel diaphragm
- Large diaphragm eliminates disturbance to the value
- Valve body is made of forged brass
- For use with R12,R22,R134A,R404A,R507,R407C & R502
- Maximum working pressure:450 psig
Ordering code
| Model |
Inlet 5/8-18"UNF" Tubes
|
Outlet 3/4-16"UNF" Tubes
|
Equalizer 7/6-20"UNF" Tubes
|
|||
| RWA-I(E) | mm | inch | mm | inch | mm | inch |
| 10 | 3/8" | 12 | 1/2" | 6 | 1/4" | |
| Model | Orifice | R12 | R22 | R502 | R507 | R134a | R404A | R407C |
| Kw | Kw | Kw | Kw | Kw | Kw | Kw | ||
| RWA-I(E) | RW00 | 0.7 | 1.3 | 0.9 | 1.1 | 0.9 | 1.1 | 1.5 |
| RW01 | 1.5 | 3.3 | 2.2 | 2.4 | 1.9 | 2.4 | 3.6 | |
| RW02 | 2.5 | 5.4 | 3.7 | 3.9 | 3.2 | 3.9 | 5.8 | |
| RW03 | 4 | 8.6 | 5.8 | 6.3 | 5.1 | 6.3 | 9.3 | |
| RW04 | 6.7 | 13.8 | 9.4 | 10.2 | 8.4 | 10.2 | 15.1 | |
| RW05 | 8.1 | 16.9 | 11.4 | 12.4 | 10.2 | 12.4 | 18.3 | |
| RW06 | 9.4 | 19.6 | 13.1 | 14.3 | 11.8 | 14.3 | 21.2 |
