It can be used in supermarkets, hotels, bars, etcAbout us
About product
Application Field
- Supermarkets, hotels, bars, etc
- Slaughtering industry
- Fishery cooling and packing
- Food processing
- Fresh preservation for fruit, vegetable, etc
- Pharmaceutical application
Features
- Reasonable Design
ICEPOWER ice machine is with integrated structure design for saving installation space, and commercial flake ice machine equips with corrosion-resistant ice storage bin.
- Stability
ICEPOWER always aims at researching and manufacturing high efficient and energy-saving refrigeration system; the flake ice machine adopted international ice machine processing technology and experience, and it can produce quality flake ice and constantly operate over 20,000 hours without failure.
- Sanitation
ICEPOWER flake ice machine is made of stainless steel, pure aluminium alloy or PE material; flake ice is made inside evaporator so it is not exposed to ambient conditions and it drops into ice bin without mechanical handling, its hygiene level reaches international standards of HACCP and FDA.
- Water & Energy Saving
ICEPOWER flake ice machine recycles all unfrozen water back to the ice machine so as to ensure all water is converted to ice and save water resources; Our unique evaporator processing technology makes it better heat exchange efficiency and saves more energy, moreover our patented internally-scraping ice scraper can help reduce energy consumption.
Technical Specifications
| Model | Ice Production Capacity (Kg/24h) | Refrigeration Capacity (kw) | Electric System | Input Power(KW) | Diameter of water supply pipe | Weight | Dimension (mm) | ||
| L | W1/W2 | H1/H2 | |||||||
| RW-FIC500J-DF | 500 | 3.05 | 220V-50Hz-1P | 2.27 KW | 1/2 | 160 kg | 1310 | 690/1050 | 709/1000 |
| RW-FIC500J-DF | 500 | 3.05 | 380V-50Hz-3P | 2.27 KW | 1/2 | 160 kg | 1310 | 690/1050 | 709/1000 |
| RW-FIC1000J-DF | 1000 | 6.25 | 380V-50Hz-3P | 4.21 KW | 1/2 | 210 kg | 1310 | 690/1060 | 882/1000 |
| RW-FIC1500J-DF | 1500 | 8.15 | 380V-50Hz-3P | 5.42 KW | 1/2 | 330 kg | 1550 | 1000/1400 | 970/1170 |
| RW-FIC2000J-DF | 2000 | 10.32 | 380V-50Hz-3P | 6.72 KW | 1/2 | 360 kg | 1550 | 1000/1400 | 1020/1170 |
| RW-FIC2500J-DF | 2500 | 13.12 | 380V-50Hz-3P | 8.52 KW | 1/2 | 390 kg | 1550 | 1000/1400 | 1050/1170 |
| RW-FIC3000J-DF | 3000 | 19.17 | 380V-50Hz-3P | 9.82 KW | 1/2 | 470 kg | 1550 | 1000/1400 | 1130/1170 |
| RW-FIC5000J-DF | 5000 | 28.8 | 380V-50Hz-3P | 18.4 KW | 1/2 | 1100 kg | 1850 | 1370 | 1373 |
Note
- Standard Supply Power: 380V/50Hz/3Phase. Ice machine can be customized upon non-standard power.
- Cooling System: Air Cooling System
- Supply Water: Fresh Water
- Refrigerant: R22/R404a
- Ice Thickness: 1.5~2mm
- Standard Working Condition: Ambient temperature: 25°C; Water supply temperature: 16°C; Evaporation temperature: -20°C.
- Applicable Working Condition: Ambient temperature: 5~40°C; Water supply temperature: 0~40°C.

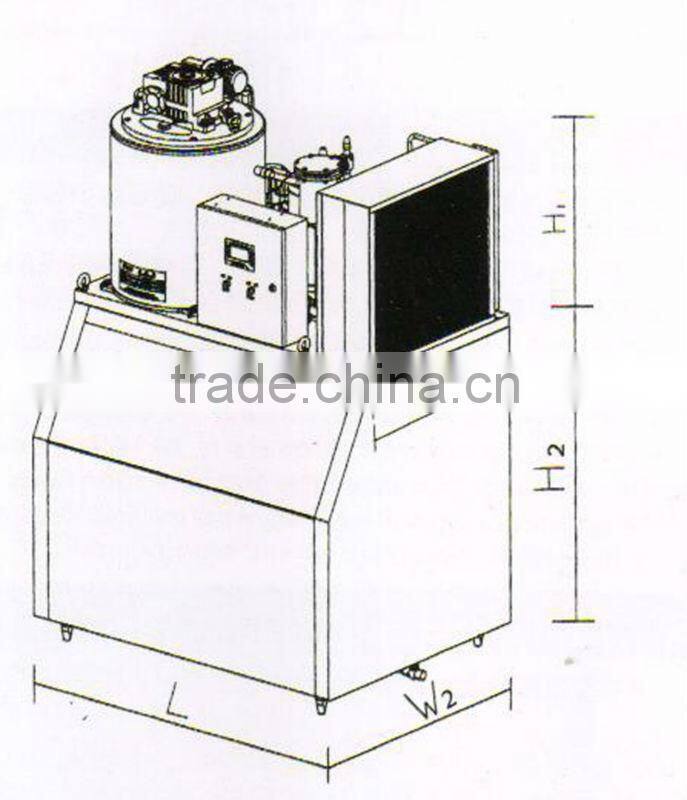

- The dimension includes flake ice machine and ice storage bin.
- Specifications are subject to change without notice.
