Help CenterRW-FVC2000T Series Phase Controller
Related Products
Specifications
RW-FVC2000T Series Phase Controller(Over/under voltage,phase loss,imbalance protection)About us
Fenghua Refworld Refrigeration Industry Co., Ltd. is a company specializing in the R&D, manufacture and sale of refrigeration components and equipment. Through several years of hard work and devotion in the field of refrigeration, high technology manufacturing equipment and advanced management concept, we are making a solid base for our future development. Now we have established a wide sales network all over the world. We are always open for your visit and cooperation and hope that we can establish long-term cooperation with your esteem company and will do what we can for the development of the world refrigeration and air conditioning.
About product
Description
RW-FVC2000T series voltage & phase controller is mainly used as a protector against the voltage unbalance, phase loss ,over voltage and under voltage of the motor with three phase,AC 50/60Hz,rated voltage 80 to 690V. It can also correct the reversal phase automatically. The protector must be connected according to the offered drawing, generally it measures the value of the power supply.
Ordering code
| Type | Rated voltage | Over voltage | Over voltage recovery | Under voltage | Under voltage recovery(VAC) | |||||
| (VAC) | (VAC) | (VAC) | (VAC) | |||||||
| RW-FVC2000T-1 | 380 | 436±6 | 426±5 | 316±5 | 323±5 | |||||
| RW-FVC2000T-2 | 220 | 251±5 | 241±4 | 183±4 | 187±4 | |||||
| RW-FVC2000T-3 | 440 | 504±9 | 496±8 | 370±8 | 376±8 | |||||
| RW-FVC2000T-4 | 415 | 474±8 | 463±7 | 350±7 | 357±7 | |||||
| RW-FVC2000T-5 | 400 | 456±7 | 446±6 | 335±6 | 340±6 | |||||
| RW-FVC2000T-6 | 460 | 525±9 | 514±8 | 385±8 | 390±8 | |||||
| RW-FVC2000T-8 | 660/690 | 15% | -15% | -15% | -15% | |||||
| RW-FVC2000T-9 | 480 | 548±9 | 536±8 | 402±8 | 408±8 | |||||
| RW-FVC2000T-X | Customized | Customized | Customized | |||||||
| RW-FVC2000T-NQ(LL) | 85~150 | No over/under voltage protection, other protection functions are same as above. | ||||||||
| RW-FVC2000T-NQ(L) | 160~260 | No over/under voltage protection, other protection functions are same as above. | ||||||||
| RW-FVC2000T-NQ(M) | 300~500 | No over/under voltage protection, other protection functions are same as above. | ||||||||
| RW-FVC2000T-NQ(H) | 600~700 | No over/under voltage protection, other protection functions are same as above. | ||||||||
Typical applications

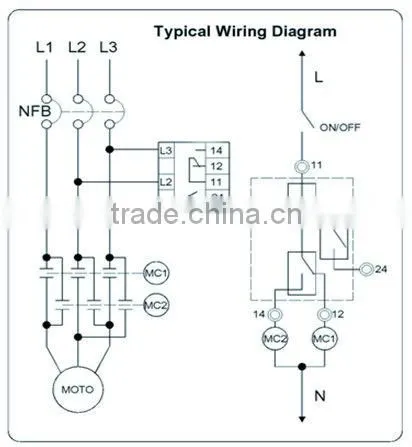

Wiring according to drawing, when something wrong with voltage, it will cut off in order to protect motor, NO contact 21,24 will output digital signal, connect with DI of PLC and controller can also give protection.
