Help CenterRW-FCUT-1188 FCU Thermostat
Related Products
Specifications
GFC-1188 Fan coiling Thermostat(Also called Fan Coiling Temperature Controller).About us
Fenghua Refworld Refrigeration Industry Co., Ltd. is a company specializing in the R&D, manufacture and sale of refrigeration components and equipment. Through several years of hard work and devotion in the field of refrigeration, high technology manufacturing equipment and advanced management concept, we are making a solid base for our future development. Now we have established a wide sales network all over the world. We are always open for your visit and cooperation and hope that we can establish long-term cooperation with your esteem company and will do what we can for the development of the world refrigeration and air conditioning.
About product
Description

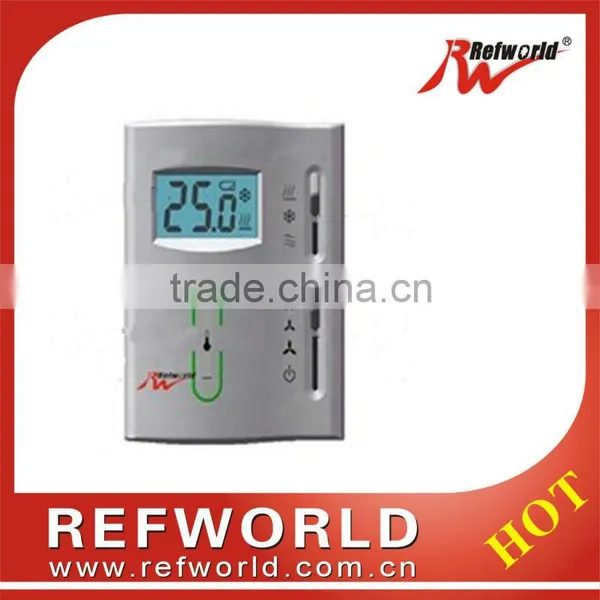

RW-FCUT-1188 Fan coiling Thermostat(Also called Fan Coiling Temperature Controller). Heating, cooling, ventilation changeover operation and three-speed fan selector switch with low, medium and high setting are available. According to the differences of connection mode, it has two types named GFC-1188-A and GFC-1188-B. They are respectively used for two-pipe or four-pipe central air conditioning system .
Features
- Supply: dry batteries 2×1.5V AAA (LR03)
- Output: 10A@250VAC
- Setting temperature: +5°C~+35°C (default:20°C)
- Temperature per press: 0.5°C
- Refresh Time: 10sec.
- Copper wire: 1.5mm2
- Storage: -15°C~+65°C
- Display temperature: 0°C~+60°C
- Normal work voltage: 1.2~1.7V
- Work current: 22~30μA
- CE Approval: (Directivas 73/23/CEE y 89/336/CEE)y RoHS
Interface
Mounting
- Separate base unit:
- Unscrew two side of thermostat by screwdriver.
- Separate base and main unit easily .
- Fix up base unit
Mount base unit on the wall surface by two M4 screws.
Not: pull out wires though the left square hole of base.
- Wiring
Including :
VH— NO (GFC-1188A)
—hot water valve (GFC-1188B)
L — power line
VC— NC (GFC-1188A)
—cool water valve (GFC-1188B)
FL—Low fan terminal FM—Medium fan terminal FH—High fan terminal
- Main unit
After wiring, fix up the main unit before use. Fix main unit on the base with the screws enclosed.
Wiring diagram
Form and Size
